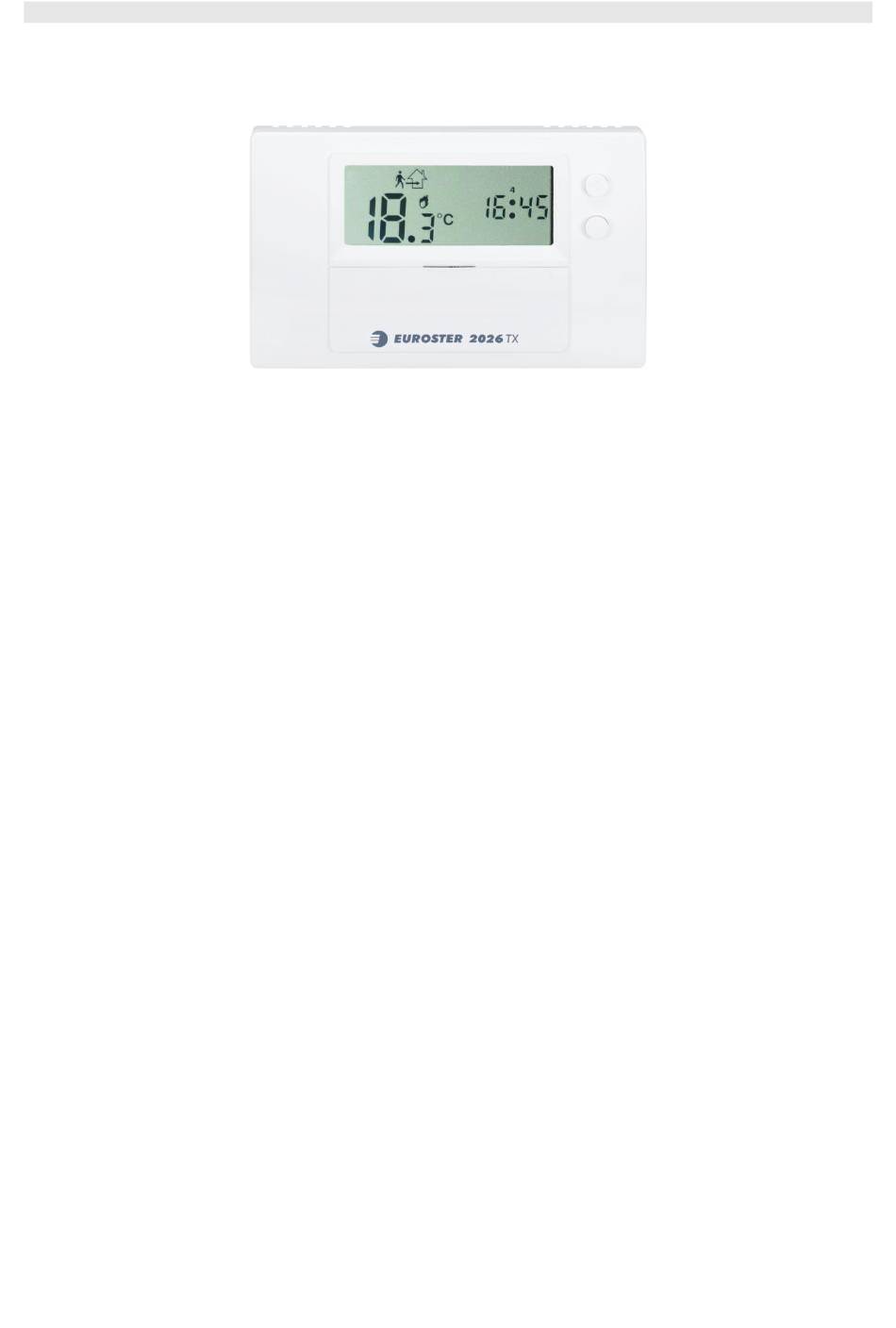

EUROSTER 2026TXRXG – INSTALLATION AND OPERATION MANUAL
Wireless, programmable thermostat for all types of heating and air conditioning devices.
MANUFACTURER: P.H.P.U. AS, Chumiętki 4, 63-840 Krobia, Poland
In order to take full advantage of thermostat capabilities please read this installation and
operation manual carefully.
This manual is intended for the v8 07.2020 version of the thermostat
1. DESCRIPTION OF DEVICE

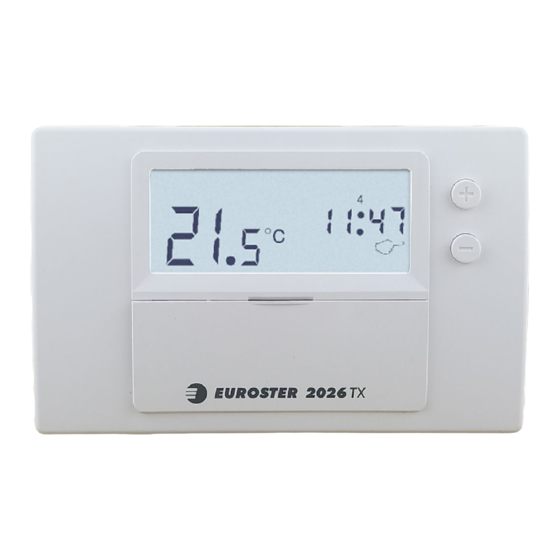

The Euroster 2026TXRXG wireless thermostat allows you to control the indoor temperature in a
very simple and efficient way, without the need for labor-intensive wiring between the
thermostat and the heating device.
It is used to control the operation of the CH boiler and other heating system components. It
controls electrical equipment, floor heating, and air-conditioning systems. The thermostat
allows you to program 4 different temperature levels for each day of the week. Each
temperature is modifiable within the range of 5 °C...35 °C.
2. BASIC FUNCTIONS OF THE THERMOSTAT
•
Does not require leading cable connections between the thermostat and the controlled
device
•
Bidirectional communication ensures high operational reliability and resistance to
interference
•
4 different temperature levels for each day of the week
•
Intuitive, weekly programming in 10-minute increments with a program copying
function
•
Up to 6 RX receivers can be used
•
Radio signal strength information
•
Operating time counter for the heating/air-conditioning device
•
Legible, backlit LCD
•
Temperature setting with the accuracy of 0.2 °C
•
Numerous useful functions: temporary temperature setting, vacation mode, discharged
batteries indication, keypad interlock
•
Temperature read-out accuracy of 0.1 °C
•
Additional socket for connecting any network-powered device (up to 16A)
•
Temperature reading correction
•
Surface mounting
EUROSTER 2026TXRXG
1
