EUROSTER Q1 – INSTALLATION AND OPERATION MANUAL
Wired, daily room thermostat for all types of heating and air-conditioning devices.
MANUFACTURER: P.H.P.U. AS, Chumiętki 4, 63-840 Krobia, Poland
In order to take full advantage of the thermostat capabilities please read this installation and
operation manual carefully.
1.

THERMOSTAT APPLICATION

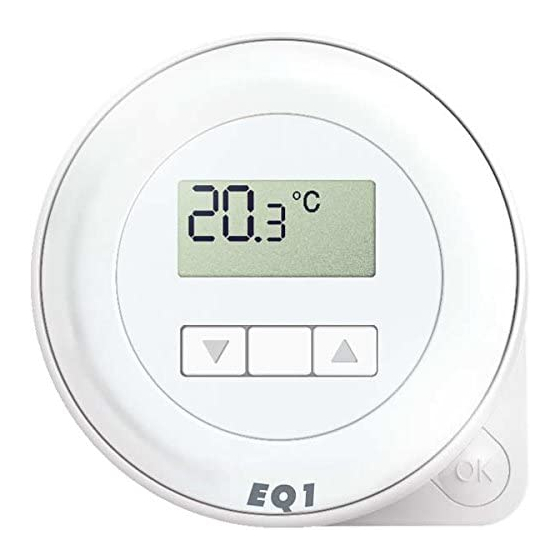

Euroster Q1 is a state-of-the-art thermostat designed for controlling temperature in living and
utility rooms within temperature range of: 5°C... 45°C. It is used to control the operation of a
CH boiler and other components of a heating system. It controls electrical equipment, floor
heating and air-conditioning systems. The thermostat is equipped with a wide range of useful
functions, innovative daily programming and temperature control with an accuracy of 0.2°C. It
enables easy control of ambient and floor temperature. If needed, Euroster Q1 may control a
heating device in the following three options of temperature measurement:
 ambient temperature measurement if only the internal sensor is used,
 floor temperature measurement if only the floor sensor is connected,
 ambient temperature
temperature sensors are connected.
2.

VISIBLE ELEMENTS

2.1. Displayed signs and icons
 21.3°C – current temperature measured by a temperature sensor
 " " or " " – turning on of an output, adequately in a heating or cooling mode
 PROG ON the programming mode is active
 PROG OFF escape from the programming mode
 PROG operation with stored program
 PROG MANUAL operation with a temporary temperature setting
 SET setting mode active
 OFF turning the thermostat off
 LO – discharged batteries indication
 " " – floor sensor connection
EUROSTER Q1
This manual is intended for V0.3 version of thermostat
measurement with floor temperature
1
limitation if both
