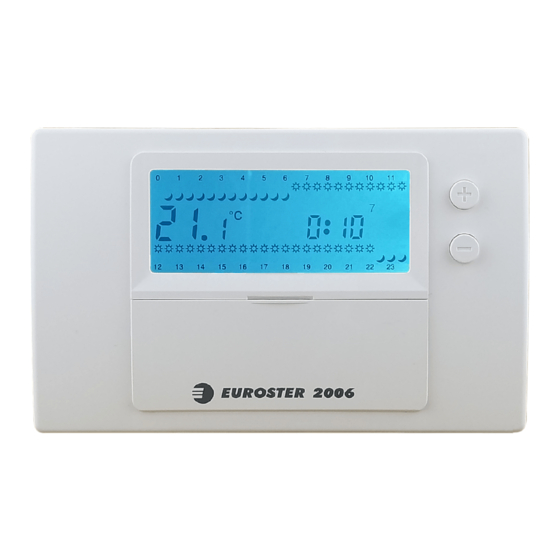

EUROSTER 2006/2006TXRXG – INSTALLATION AND OPERATION MANUAL
MANUFACTURER: P.H.P.U. AS, ul. Polanka 8a/3, 61-131 Poznań, Poland
SPECIFICATION
•
EEPROM memory backup
•
for Heating or Cooling,by factory preset
•
temperature display range: 0 ~ 50°C
•
temperature control range: 5 ~ 35°C for Room mode, 5 ~ 45°C for Floor-heating
mode
•
temperature sampling rate: 1 minute
•
switching differential(Hysteresis): 0.2°C, 0.4°C or 1°C selectable to users
•
temperature sensing calibration: ± 2°C
•
temperature adjusting scale: 0.1°C (fast forward adjusting function, pressing + or
- for 3 seconds)
•
temperature display scale: 0.1°C
•
all 7-Day independently programmed
•
24-Hour- format, spread into 48 time adjusting zone
•
thermostat operate Power: 2 X AA 1.5 Vdc LR 6 Alkaline Battery-low indication
(when power goes below 2.4 Vdc)
•
thermostat output: 16(3.5) AMP / 250 Vac, Voltage-free, SPDT.
•
dimension: 138 L x 86 W x 29 H mm
CHOOSING INSTALLATION LOCATION
For obtaining thermostat's best performance upon using, recommend user to follow up
with precaution listed below.
1.
Place thermostat on wall inside the room approximate 1.5 meter above floor.
2.
Avoid position where temperature sensing easily interfered by ambience, such as,
directly
exposed
/refrigerator, right next to entrance/ exit/window, etc.
EUROSTER 2006/2006TX
Installation and operation manual
Manual version: 28.09.2019
to
Sun-Light,
too
near
to
any
Heat-Generate
1
devices
Advertisement
Related Manuals for EUROSTER 2006
Summary of Contents for EUROSTER 2006

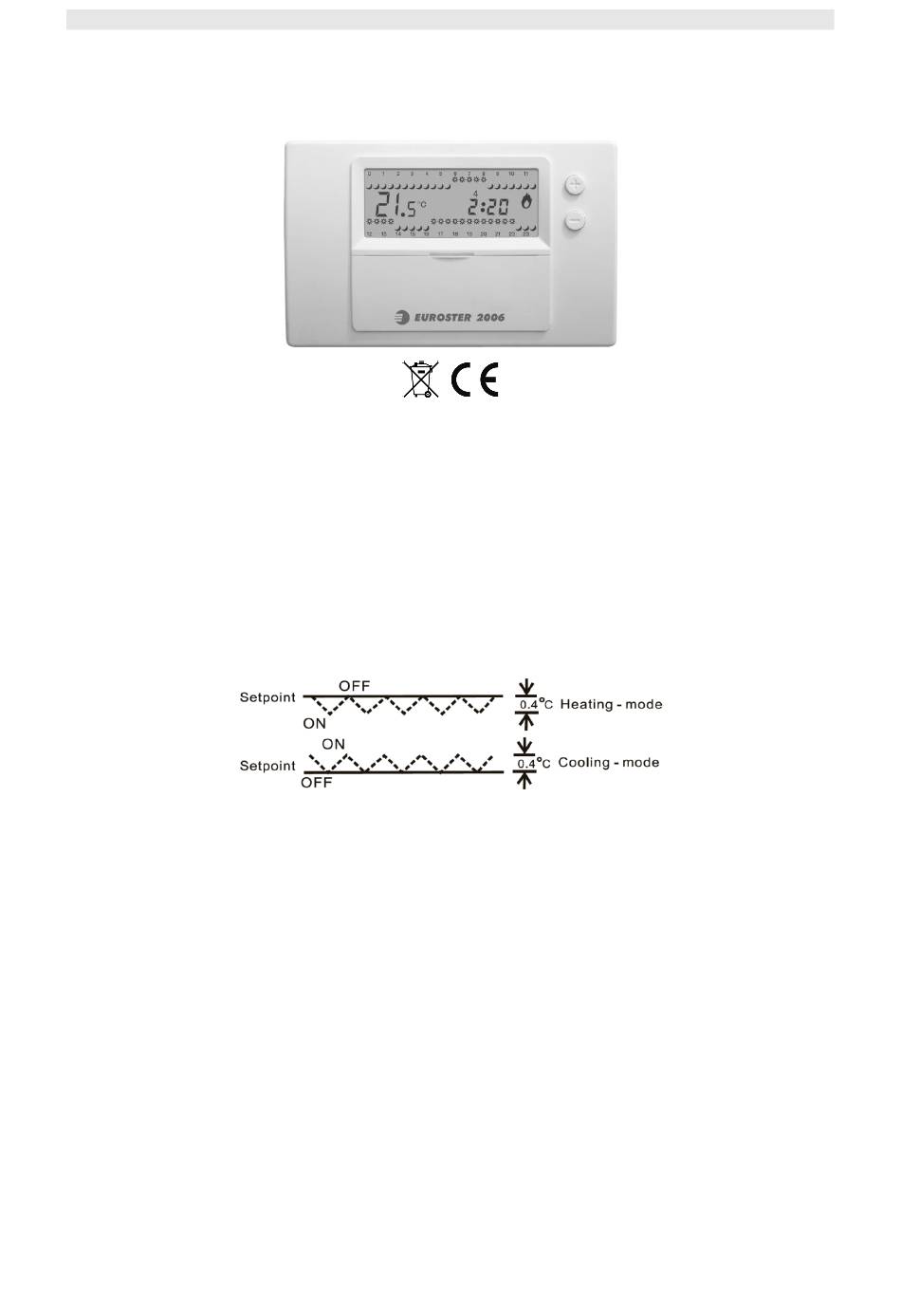

- Page 1 EUROSTER 2006/2006TXRXG – INSTALLATION AND OPERATION MANUAL EUROSTER 2006/2006TX Installation and operation manual MANUFACTURER: P.H.P.U. AS, ul. Polanka 8a/3, 61-131 Poznań, Poland Manual version: 28.09.2019 SPECIFICATION • EEPROM memory backup • for Heating or Cooling,by factory preset • temperature display range: 0 ~ 50°C •...
- Page 2 EUROSTER 2006/2006TXRXG – INSTALLATION AND OPERATION MANUAL Prevent thermostat from installed at position that furniture may interfere air-flow, stagnant air-flow location is not suitable for installing thermostat. Keep thermostat away from high humid ambience, high humidity is hazardous to thermostat's operational duration.
- Page 3 EUROSTER 2006/2006TXRXG – INSTALLATION AND OPERATION MANUAL DISPLAY 9. Temporary temperature change — MANUAL sign is displayed to indicate that the temperature has been changed manually by means of setting buttons. 10. An icon indicating activation and operation of the controlled device.
- Page 4 EUROSTER 2006/2006TXRXG – INSTALLATION AND OPERATION MANUAL WIRING GUIDE Floor - Heating System Gas - Fired boiler Heating / Cooling System TO ADJUST HYSTERESIS (SWITCHING-DIFFERENTIAL) 1. Point Rotary switch to “RUN”.
-
Page 5: Rotary Switch Pointed To Run
EUROSTER 2006/2006TXRXG – INSTALLATION AND OPERATION MANUAL 2. Press and hold both for 3 seconds. 3. Shown as on LCD, to press either to select required Hysteresis. 4. Wait for 5 seconds,after adjustment, thermostat shall automatically memorize adjustment and begin operating. -
Page 6: Lcd Display Shall Be Flashing For Approximate 8 Second After Temperature Setting
EUROSTER 2006/2006TXRXG – INSTALLATION AND OPERATION MANUAL 4. Press to select each individual time-scale, LCD display shall also indicate each time-scale by digital number and flashing, to guide users. 5. After finished setting all 7-day of week, spin rotary switch back to “RUN”. -
Page 7: Table Of Contents
SIMPLIFIED DECLARATION OF EU CONFORMITY P.H.P.U. AS AGNIESZKA SZYMAŃSKA-KACZYŃSKA hereby declares that the type of Euroster 2006 equipment conforms to the following directives: 2014/30/EU (EMC), 2014/35/EU (LVD) and 2011/65/EU (RoHS). The complete text of the Declaration of EU conformity is available at the following Internet address: www.euroster.pl... - Page 8 EUROSTER 2006/2006TXRXG – INSTALLATION AND OPERATION MANUAL 4. 2 x screws...
- Page 9 The programmable temperature controller EUROSTER in the TXRXG wireless version is, in terms of programming, the equivalent of EUROSTER wired version. In the packaging there is a user guide for the appropriate wired model. The difference is in how the on / off signal is transmitted.
- Page 10 If, due to the interference in transmission caused by e.g. a strong electromagnetic impulse or a drop of battery voltage in EUROSTER TX, the EUROSTER RX receiving module does not receive the confirmation of turning the device on or off for 7 subsequent cycles, then the heating device will be turned off.
- Page 11 OPERATION Due to unidirectional signal transmission and safety of the heating (or cooling) device users, EUROSTER TX sends a short, encoded signal confirming the current status of the transmitter of EUROSTER RX receiver every minute. It is indicated by lighting up of green diode for about 1 second.
- Page 12 EUROSTER 2006/2006TXRXG – INSTALLATION AND OPERATION MANUAL With a gas boiler 1. Electrical connector cube 2. Output wire, contacts used COM - NO - (normally open) 3. Antenna 4. Euroster RXG (receiver) 5. Euroster TX placed in any room With a CH pump...
-
Page 13: As Agnieszka Szymańska-Kaczyńska Hereby Declares That The Type
Maximum power of transmission:<10mW Output cable length: 2 m Dimensions: 112 x 64 x 68 mm In case of a complaint the complete EUROSTER TXRXG must be supplied to the point of sale with the warranty card. SET CONTENTS 5. EUROSTER TX 6. - Page 14 Directive 2012/19/EU of the European Parliament and of the Council. The product contains an internal battery subject to the selective collection in accordance with the provisions of the Directive 2006/66/EC of the European Parliament and of the Council.
- Page 15 EUROSTER 2006/2006TXRXG – INSTALLATION AND OPERATION MANUAL WARRANTY CERTIFICATE EUROSTER 2006/2006TXRXG Warranty terms: 1. The warranty is valid for 24 months from the device sale date. 2. Claimed thermostat together with this warranty certificate must be supplied to the seller.
