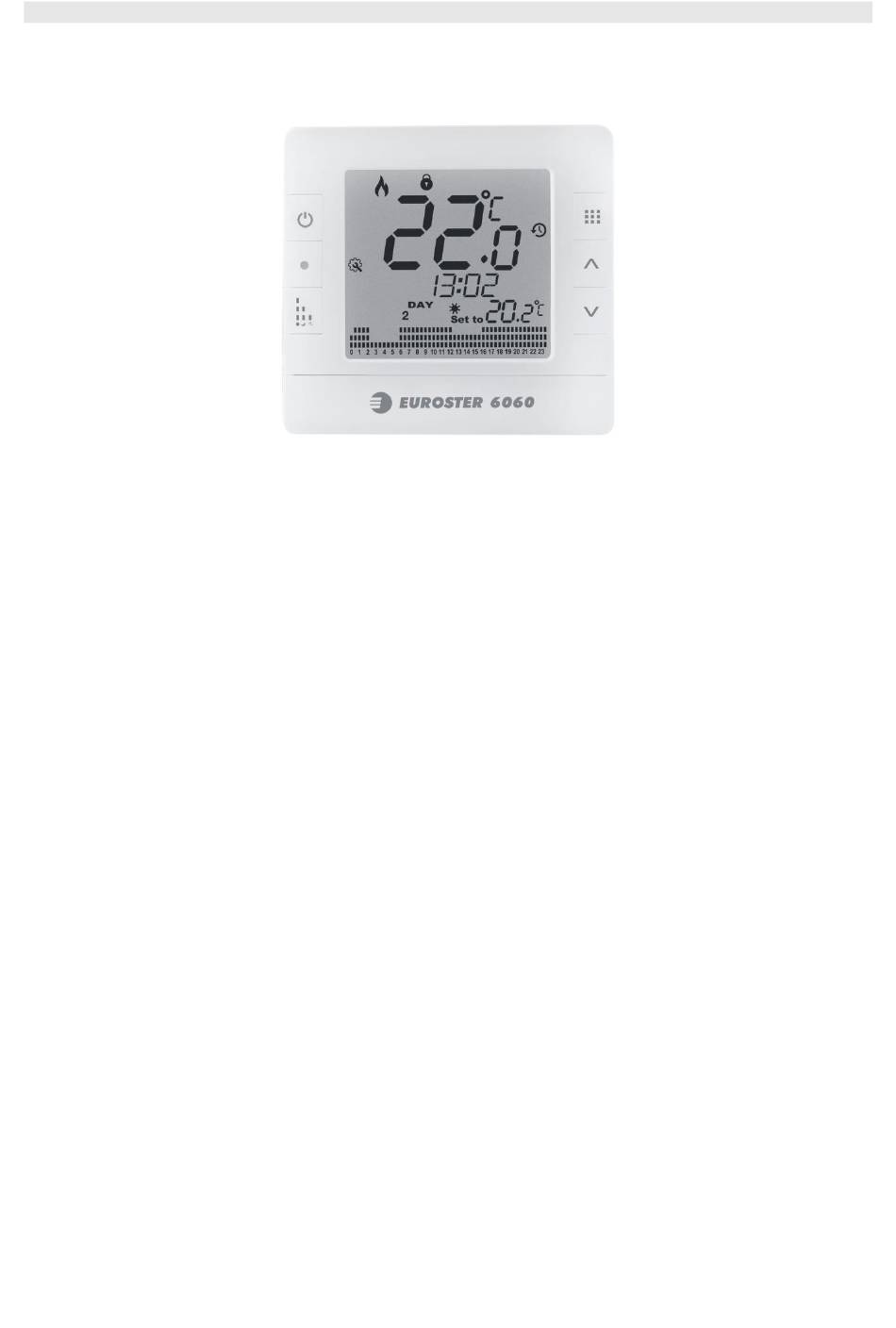

EUROSTER 6060 – INSTALLATION AND OPERATION MANUAL
Wired, programmable room thermostat for all types of heating devices.
MANUFACTURER: P.H.P.U. AS, Chumiętki 4, 63-840 Krobia, Poland
In order to take full advantage of thermostat capabilities please read this installation and
operation manual carefully.
This manual is intended for 08.01.2019 version of thermostat
1.
THERMOSTAT APPLICATION
Euroster 6060, is a state-of-the-art thermostat designed for controlling temperature in living
and utility rooms within temperature range of 5 °C...35 °C. It is used to control the operation
of CH boiler and other heating system components. Sensors used in Euroster 6060 enable
temperature reading accuracy of 0.1 °C and temperature programming accuracy of 0.2 °C.
Euroster 6060 operates with three temperature levels: comfort (day), economical (night) and
reduced (away). Each temperature is modifiable within the range of 5 °C...35 °C.
The thermostat is programmable in seven-day cycles with an accuracy of 0.5 hour therefore it
enables 48 temperature changes in 24 hours.
It is possible to program different time ranges for each day of the week.
2.
BASIC THERMOSTAT FUNCTIONS
Three temperature levels: comfort, economical and reduced (away)
Large, legible, backlit LCD
0.5-hour accuracy of range programming
Numerous useful functions: temporary temperature setting, keypad interlock, constant
temperature, vacation mode, discharged batteries indication
Temperature reading accuracy of 0.1 °C
Possibility to switch the thermostat off with an active frost protection temperature after
the heating season
Temperature reading correction
Display contrast control
24-hour clock
Operation with window opening sensors (airing function) with selectable activity status
– NC/NO.
EUROSTER 6060
1
