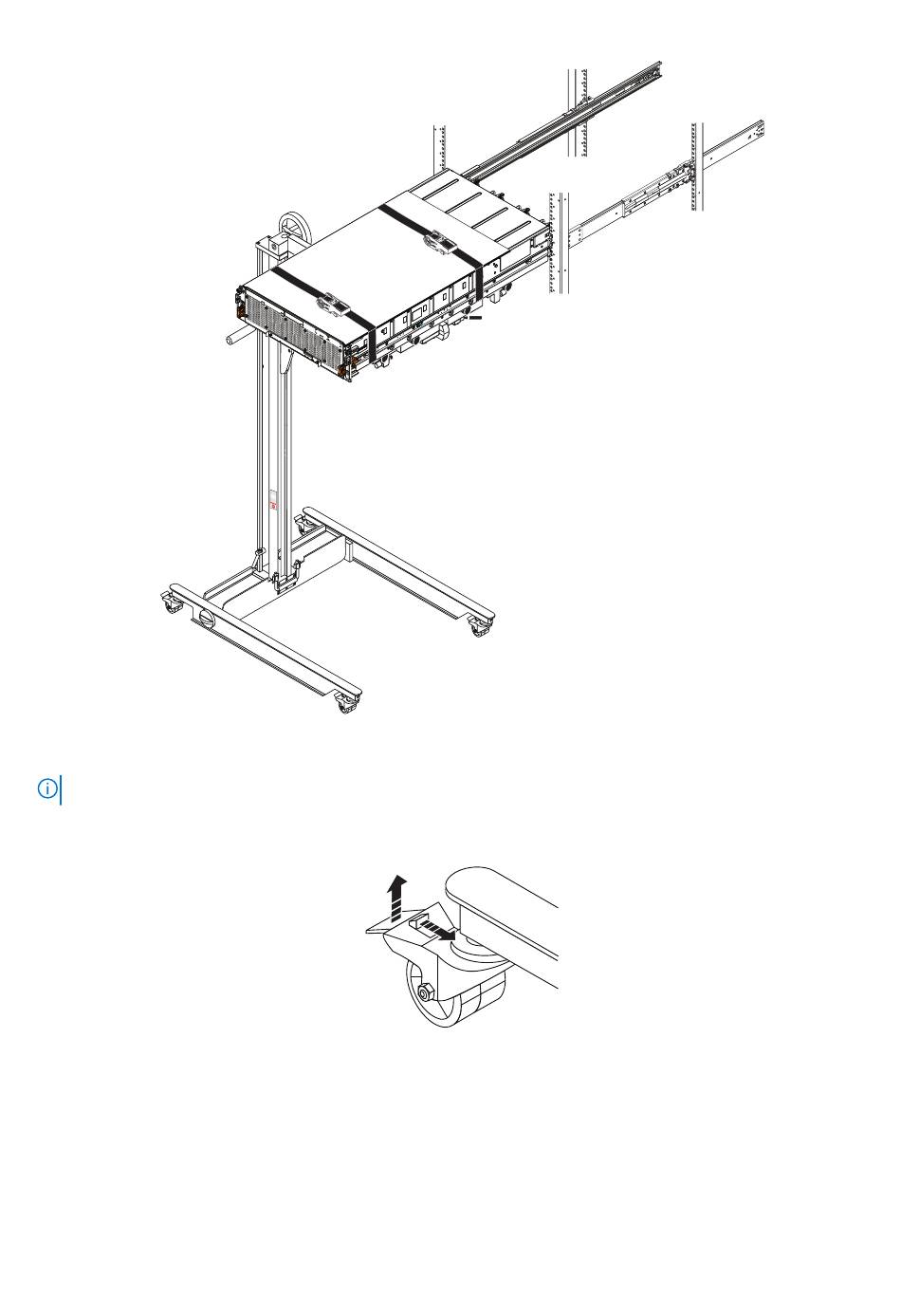

Figure 19. Sliding the shelf chassis into the rails

NOTE:

You might need to release sagging tension on the shelf by pulling the lift arms and tray up slightly.

4. Unlock the casters by lifting the locking tabs, as shown in the following figure, and carefully slide the shelf into the cabinet

as far as the lift allows.

Figure 20. Unlocking the casters

5. Lock all four casters by pressing down on the locking tab, as shown in the following figure, so the lift does not roll as the

shelf is pushed into the cabinet.

CL5424

Install the Disk Shelves in the Rack

CL5431
