Summary of Contents for Dell EMC Unity 480

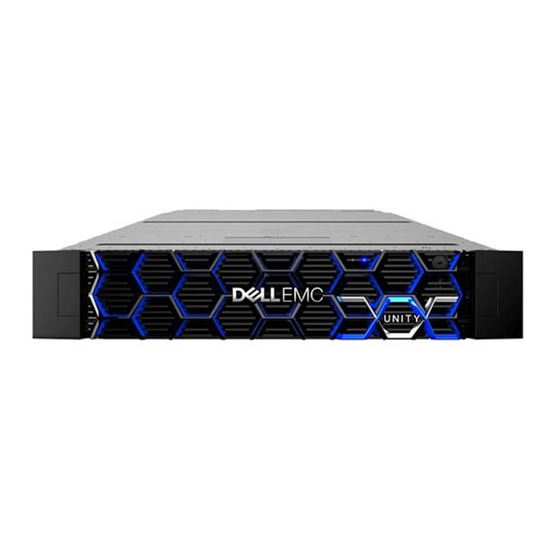

- Page 1 ™ Dell EMC Unity All Flash and Unity Hybrid Unity 480/F, Unity 680/F, Unity 880/F Hardware Information Guide 302-005-520 REV 01...
- Page 2 Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be the property of their respective owners. Published in the USA. Dell EMC Hopkinton, Massachusetts 01748-9103 1-508-435-1000 In North America 1-866-464-7381 www.DellEMC.com Unity 480/F, Unity 680/F, Unity 880/F Hardware Information Guide...
-
Page 3: Table Of Contents
Technical specifications................20 Dimensions and weight................21 Power requirements..................21 Operating environment requirements............22 DPE airflow..................23 Environmental recovery..............24 Shipping and storage requirements..........24 Shock and Vibration...............24 Fire suppressant disclaimer............25 Air quality requirements..............25 Unity 480/F, Unity 680/F, Unity 880/F Hardware Information Guide... - Page 4 CONTENTS Unity 480/F, Unity 680/F, Unity 880/F Hardware Information Guide...
-
Page 5: Additional Resources
Additional resources As part of an improvement effort, revisions of the software and hardware are periodically released. Therefore, some functions described in this document might not be supported by all versions of the software or hardware currently in use. The product release notes provide the most up-to-date information on product features. - Page 6 Additional resources Unity 480/F, Unity 680/F, Unity 880/F Hardware Information Guide...
-
Page 7: Dpe Component Descriptions
CHAPTER 1 DPE component descriptions 2U, 25-drive DPE component overview............... 8 DPE front view.....................9 DPE rear view......................11 Storage processor assembly internal components..........17 DPE component descriptions... -
Page 8: 2U, 25-Drive Dpe Component Overview
DPE includes a simple EMI shield. Other installations require a front bezel that has a locking latch and integrated EMI shield. Remove the bezel or shield to remove and install the drives. Unity 480/F, Unity 680/F, Unity 880/F Hardware Information Guide... -
Page 9: Dpe Front View
DPE component descriptions DPE front view On the front, the DPE contains the following elements: Drives in 2.5 in. carriers Status LEDs Figure 1 DPE front view Table 1 DPE component locations Location Description SAS or SAS Flash drives Drive fault LED Drive ready/activity LED DPE power on LED Figure 2 DPE and disk drive LEDs... -
Page 10: System Identification Tags
World Wide Name (WWN) Seed Tag The World Wide Name (WWN) Seed tag is a blue pull-out tag that is located between the drives in slot 7 and 8. Figure 4 WWN Seed tag location Unity 480/F, Unity 680/F, Unity 880/F Hardware Information Guide... -
Page 11: Dpe Rear View
DPE component descriptions DPE rear view On the rear of the DPE are two SP assemblies: SP assembly A and SP assembly B. Each SP assembly contains the following hardware components: One embedded module Two optional I/O modules One power supply module Figure 5 DPE rear view with hardware component locations Table 3 DPE hardware component locations Location... - Page 12 TwinAx, and 10GbE active or passive TwinAx. Depending on the installed SFP or TwinAx cable, the following speeds are supported: 1GbE, 10GbE, and 25GbE. The ports may be configured individually with TwinAx or any of the supported SFPs. Unity 480/F, Unity 680/F, Unity 880/F Hardware Information Guide...
- Page 13 DPE component descriptions The 10GbE BaseT 4-port card serves Ethernet traffic and iSCSI block protocol. The following speeds are supported: 1GbE and 10 GbE. Embedded module and 4-port card LED status Figure 7 Embedded module LEDs Table 5 Embedded module LEDs Location State Description...
-
Page 14: Dpe I/O Module Types
Populate new I/O modules in the following order to take advantage of the increased speed on slot 0. If two I/O modules are ordered, use the same installation priority for both I/O modules. Unity 480/F, Unity 680/F, Unity 880/F Hardware Information Guide... - Page 15 DPE component descriptions 1. 4-port 25GbE Optical I/O module 2. 4-port 16Gb Fibre Channel I/O module 3. 4-port 10GbE BaseT I/O module 4. 4-port 12Gb SAS backend I/O module When adding new I/O modules, always install I/O modules in pairs: one module in SP assembly A and one module in SP assembly B.
-
Page 16: Dpe Power Supply
AC power is off. Verify source power DC power (output) Green DC power is on. DC power is off. Verify source power. Fault Solid amber Power supply or backup fault. Check cable connection. Unity 480/F, Unity 680/F, Unity 880/F Hardware Information Guide... -
Page 17: Storage Processor Assembly Internal Components
DPE component descriptions Table 7 DPE power supply LEDs (continued) Location State Description Blinking BIOS, POST, and OS starting amber up or system overheating. No fault. Storage processor assembly internal components Included within the SP assembly are the following components: Dual inline memory modules (DIMM) M.2 SSDs Internal battery backup module... - Page 18 DPE component descriptions Unity 480/F, Unity 680/F, Unity 880/F Hardware Information Guide...
-
Page 19: Technical Specifications
CHAPTER 2 Technical specifications Technical specifications..................20 Dimensions and weight..................21 Power requirements................... 21 Operating environment requirements..............22 Technical specifications... -
Page 20: Technical Specifications
DPE. Embedded module specifications Supported optional 4-port cards: 10GbE BaseT 4-port card 25GbE 4-port card The 4-port card can also be left unpopulated. I/O module specifications Supported I/O modules: Unity 480/F, Unity 680/F, Unity 880/F Hardware Information Guide... -
Page 21: Dimensions And Weight
A step-up transformer, not included, is required to use high line power with Unity 880/880F systems. Table 9 Power specifications per Unity model Model High line Low line Unity 480/480F 1800 W 1450 W Unity 680/680F 1800 W 1450 W... -
Page 22: Operating Environment Requirements
Do not exceed the temperature gradient of 20°C/hr (36°F/hr), or the altitude requirement of 3050 m (10,0000 ft). Unity 480/F, Unity 680/F, Unity 880/F Hardware Information Guide... -
Page 23: Dpe Airflow
Technical specifications Recommended range of operation The recommended range of operation is the limit under which equipment operates the most reliably while still achieving reasonably energy-efficient data center operation. The recommended range of operation is 18°C–27°C (64.4°F to 80.6°F) at 5.5°C (41.9°F) dew point to 60% relative humidity and 15°C (59°F) dew point. -
Page 24: Environmental Recovery
10 G’s, 7 ms duration Operational shock 3 G’s, 11 ms duration Non operational random vibration 0.40 Grms, 5–500 Hz, 30 minutes Operational random vibration 0.21 Grms, 5–500 Hz, 10 minutes Unity 480/F, Unity 680/F, Unity 880/F Hardware Information Guide... -
Page 25: Fire Suppressant Disclaimer
Technical specifications Systems that are mounted on an approved package have completed transportation testing to withstand the following shock and vibrations in the vertical direction only and shall not exceed: Packaged system condition Response measurement level Transportation shock 10 G’s, 12ms duration Transportation random vibration 1.15 Grms 1 hour Frequency range 1–200 Hz... - Page 26 Storage time (unpowered) recommendation: do not exceed 6 consecutive months of unpowered storage. Unity 480/F, Unity 680/F, Unity 880/F Hardware Information Guide...
