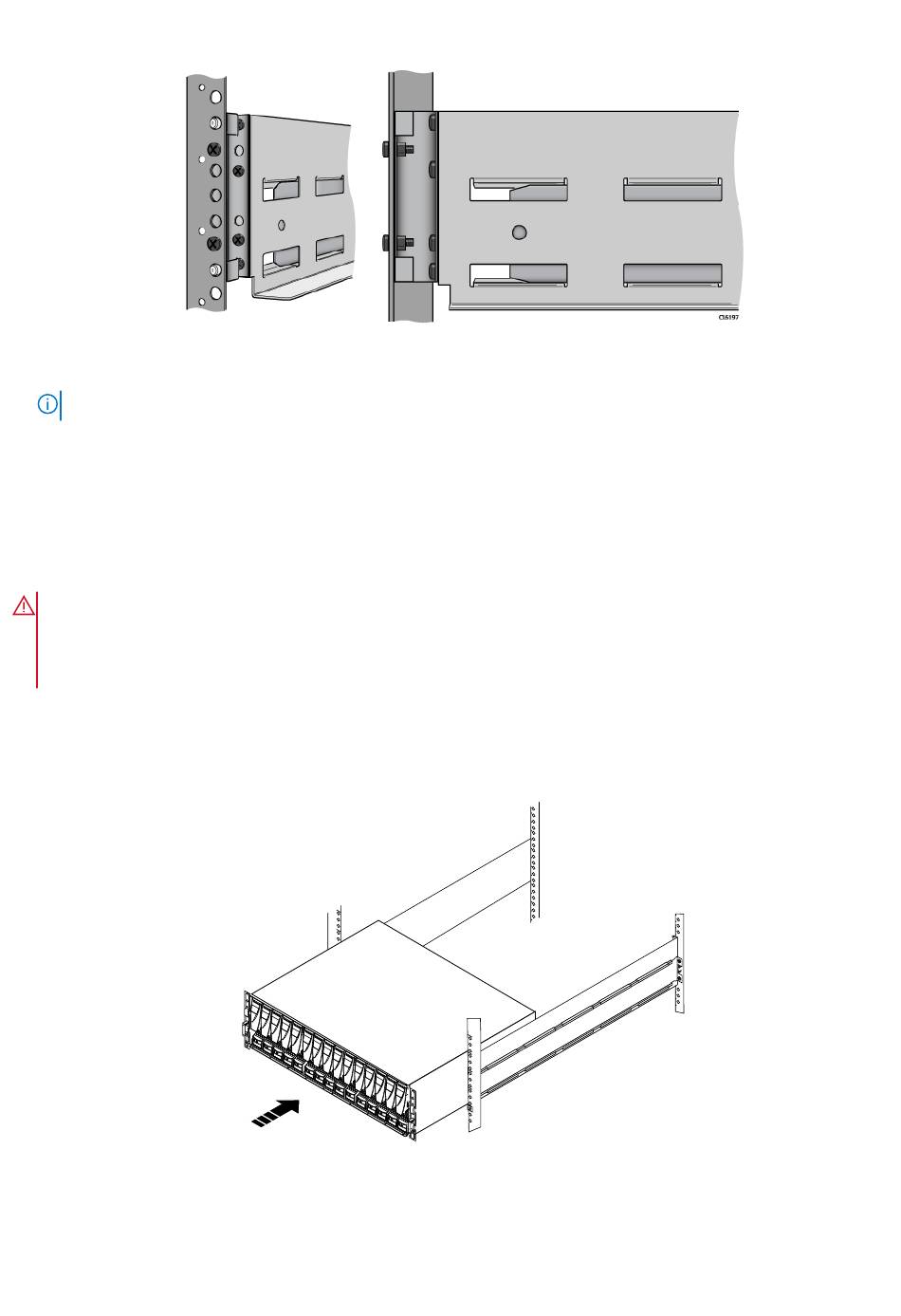

Figure 12. Attaching the rail to the rack

NOTE:

To secure the rail adapter hardware nuts, you may need to use the supplied wrench or pliers to tighten the nuts.

6. Repeat step 5 for the second rail.

7. After installing both rails, ensure that they are level with one another.

Installing the shelf on the rails

About this task

WARNING:

The enclosure is heavy and should be installed into or removed from a rack by two people. To avoid personal

injury and/or damage to the equipment, do not attempt to lift and install the enclosure into a rack without a

mechanical lift and/or help from another person.

Steps

1. With help from another person, lift the enclosure and, from the front of the cabinet/rack, slide the enclosure onto the rails

Figure 13. Sliding the enclosure onto the rails

on page 25).

CL4718a

Install the Disk Shelves in the Rack
