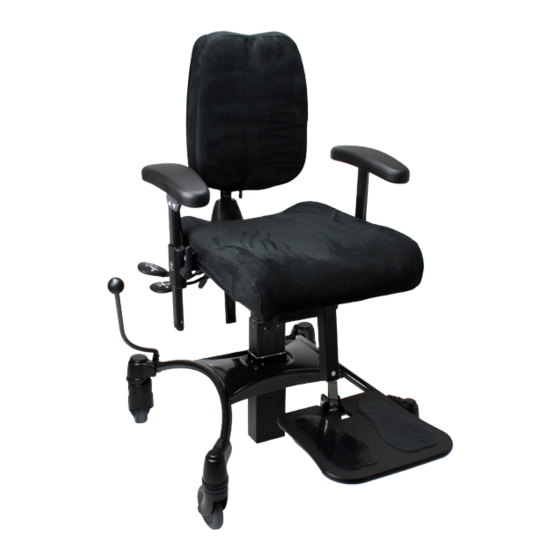

- Page 1 I N S T R U C T I O N F O R U S E VELA Tango for children 100S & 100ES VARIANT: Manual no. 105163 VELA Tango 100S VELA Tango 100ES...
-
Page 2: Table Of Contents
2.0.1. Attaching the backrest 2.0.2. Height adjustment (VELA Tango 100ES) 2.0.3. Adjustment of seat height (VELA Tango 100ES) 2.0.4. Adjustment of seat height (VELA Tango 100S) 2.0.5. Adjustment of seat tilt 2.0.6. Adjustment of backrest angle 2.0.7. Adjustment of back height 2.0.8. -
Page 3: Introduction
1.0. INTRODUCTION DEAR CUSTOMER Congratulations on your new VELA chair! We are sure this chair will give you daily pleasure. This user manual provides useful information on adjusting, operating and maintaining your chair. Important Please read this user manual carefully and keep it safe for when you need to refer to it. -
Page 4: Warnings
1.1. WARNINGS In case of an allergic reaction, stop using the chair and consult a doctor Only use original spare parts from VELA Only use the supplied charger for charging the chair Do not make any changes to the accessories that come with the chair Only use the chair for the intended purpose Only adjust the seat angle while the user’s feet are on the floor... -
Page 5: Troubleshooting
Brake rod or chassis is in the way when I move in the You have a chair with seat rotation. Use seat rotation to chair straighten the chair. See section 2.0.14. or 2.0.15. If the above does not solve your problem, you should contact your VELA supplier. -
Page 6: Vela Tango With Electric Height Adjustment
Current: 0.5A Power: 12VA 1.3.2. EMISSION A VELA chair with electrical functions has been tested and complies with current requirements regarding electromagnetic radiation (EMC requirements). The chair is tested to the following specifications: :: Emission class CISPR 11, Group 1, Class B See more details at www.vela.eu... -
Page 7: Labels Used On The Chair
VELA, Gøteborgvej 8-12, :: The chair is not built to stand on 9200 Aalborg SV, Denmark. :: The wheel brake must always be The VELA Tango with electrical func- activated when sitting down or tions meets all safety requirements standing up... -
Page 8: Transport
On delivery you have received: below - 10°C. :: VELA chair 1.6. WARRANTY VELA grants a right of claim under :: Instructions for use applicable law in the country where the chair is acquired. The right of :: Charger (only for chairs with elec-... -
Page 9: Wheels
1.8.4. RECYCLING GUIDE Your VELA chair can be reused by another person when you no longer need it as long as the chair is serviced by a technician beforehand. -
Page 10: User Manual
Can be operated from the underside of either the right or left armrest. The armrest can easily be moved to the opposite side. VELA Tango El is also available with height adjustment via hand box (if caregivers are to be able to adjust the height). -
Page 11: Adjustment Of Seat Tilt
2.0.5. ADJUSTMENT OF SEAT TILT Adjust the seat tilt by pulling up the middle lever placed at your right hand. 2.0.6. ADJUSTMENT OF BACKREST ANGLE Adjust the back tilt by pulling up the rear lever placed at your right hand. 2.0.7. -
Page 12: Adjustment Of Armrest, Height
Remember to tighten the screw again. VELA TANGO 2.0.12. CHARGING (VELA TANGO 100ES) 100ES Daily charging is recommended. Place the charger in the plug - if the chair is charging, an yellow LED is illuminated. If the chair is fully charged the LED is green. -
Page 13: Foot Plate
Note: When adjusting the height of the footplate, always have the chair height in lowest position to avoid damage on the chair. 2.0.14. ROTATION (VELA TANGO 100S) (OPTIONAL) By pulling up the lever situated on the back left side, you can rotate the seat 90°... -
Page 14: Foot Pedal For Brake (Optional)
2.0.17. FOOT PEDAL FOR BRAKE (OPTIONAL) VELA Tango with foot pedal brakes by pressing the top part of the pedal forwards. Unlock the chair by pressing the foot brake back in its original position. Note: The foot pedal can be mounted in left or right side at the back of the chair. - Page 16 VELA :: Gøteborgvej 8-12 :: 9200 Aalborg SV :: Denmark :: +45 96 34 76 00 :: mail@vela.dk vela.eu...
