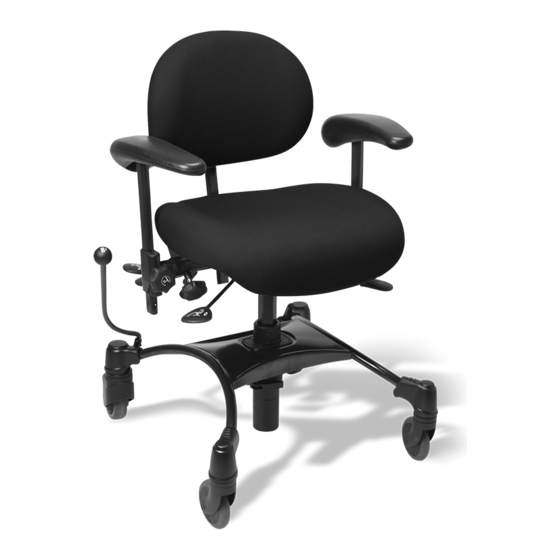

- Page 1 U S E R M A N U A L VELA Tango 100, 100EL, 200 & 200EL VARIANT: Manual no. 105017 VELA Tango 100 Arthrodesis VELA Tango 100 VELA Tango 200 VELA Tango El Sit-stand VELA Tango 100El VELA Tango 200El...
-
Page 2: Table Of Contents
2.0. USER MANUAL 2.0.1. Attaching the backrest 2.0.2. Adjustment of seat height (VELA Tango El) 2.0.3. Changing place for height adjustment (VELA Tango El) 2.0.4. Adjustment of seat height (VELA Tango) 2.0.5. Adjustment of seat tilt 2.0.6. Adjustment of back angle 2.0.7. -
Page 3: Introduction
1.0. INTRODUCTION DEAR CUSTOMER Congratulations on your new VELA chair! We are sure this chair will give you daily pleasure. This user manual provides useful information on adjusting, operating and maintaining your chair. Important Please read this user manual carefully and keep it safe for when you need to refer to it. -
Page 4: Warnings
1.1. WARNINGS In case of an allergic reaction, stop using the chair and consult a doctor Only use original spare parts from VELA Only use the supplied charger for charging the chair Do not make any changes to the accessories that come with the chair Only use the chair for the intended purpose Only adjust the seat angle while the user’s feet are on the floor... -
Page 5: Troubleshooting
Brake rod or chassis is in the way when I move in the You have a chair with seat rotation. Use seat rotation to chair straighten the chair. See section 2.0.11. or 2.0.12. If the above does not solve your problem, you should contact your VELA supplier. -
Page 6: Vela Tango With Electric Height Adjustment
Current: 0.5A Power: 12VA 1.3.2. EMISSION A VELA chair with electrical functions has been tested and complies with current requirements regarding electromagnetic radiation (EMC requirements). The chair is tested to the following specifications: :: Emission class CISPR 11, Group 1, Class B See more details at www.vela.eu... -
Page 7: Labels Used On The Chair
VELA, Gøteborgvej 8-12, :: The chair is not built to stand on 9200 Aalborg SV, Denmark. :: The wheel brake must always be The VELA Tango with electrical func- activated when sitting down or tions meets all safety requirements standing up... -
Page 8: Transport
On delivery you have received: below - 10°C. :: VELA chair 1.6. WARRANTY VELA grants a right of claim under :: Instructions for use applicable law in the country where the chair is acquired. The right of :: Charger (only for chairs with elec-... -
Page 9: Wheels
1.8.4. RECYCLING GUIDE Your VELA chair can be reused by another person when you no longer need it as long as the chair is serviced by a technician beforehand. -
Page 10: User Manual
- depending on where the plug is placed (see section 2.0.3.). VELA Note: VELA Tango El is available with remote controlled height TANGO adjustment (i.e. if caregivers must be able to adjust the height). 2.0.3. CHANGING PLACE FOR HEIGHT ADJUSTMENT -... -
Page 11: Adjustment Of Seat Tilt
2.0.5. ADJUSTMENT OF SEAT TILT Adjust the seat tilt by pulling the middle lever placed on your right hand side. 2.0.6. ADJUSTMENT OF BACK ANGLE Adjust the back tilt by pulling the rear lever placed on your right hand side. 2.0.7. -
Page 12: Adjustment Of Armrest, Width
Remember to tighten the handwheel again. 2.0.10. BRAKES VELA Tango brakes by moving the brake lever situated on the side of the frame forward. Unlock the chair by moving the brake lever backwards into upright position. -
Page 13: Back Latch (Vela Tango 200 & 200El)
2.0.13. BACK LATCH (VELA TANGO 200 & 200EL) The backrest can be set to a specific angle by adjusting and secure the the bolt which is mounted on the rear side of the VELA backrest. TANGO VELA 2.0.14. CHARGING (VELA TANGO EL) TANGO Daily charging is recommended. -
Page 14: Foot Plate (Optional)
Adjust the height. Remember to tighten the screw. 2.0.19. FOOTBRAKE PEDAL (OPTIONAL) VELA Tango with footbrake pedal can be used by pressing the top part of the pedal forwards. Unlock the chair by pressing the foot brake back in its original position. -
Page 15: Remote Control (Optional)
2.0.21. REMOTE CONTROL (OPTIONAL) The remote control is operated via buttons on the front. A VELA remote control can have one or more functions. See the icons on the remote control to see what functions the buttons operate. Note: insert plug in remote control to operate. - Page 16 VELA :: Gøteborgvej 8-12 :: 9200 Aalborg SV :: Denmark :: +45 96 34 76 00 :: mail@vela.dk vela.eu...
