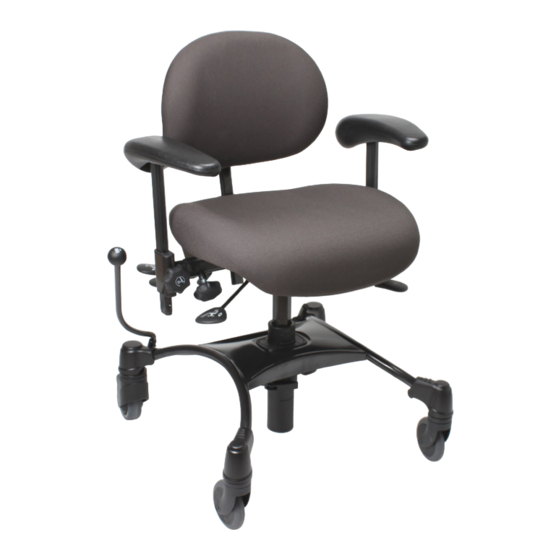

- Page 1 U S E R M A N U A L VELA Tango 100/100EL/200/200EL VARIANT: Manual no. 105017 VELA Tango 100 VELA Tango 200 VELA Tango 100El VELA Tango 200El...
-
Page 2: Table Of Contents
1.4.2. Frame 1.4.3. Upholstery 1.5. RECYCLING 1.6. USER MANUAL 1.6.1. Adjustment of seat height (VELA Tango El) 1.6.2. Changing place for height adjustment - right/left armrest or switch box (VELA Tango El) 1.6.3. Adjustment of seat height (VELA Tango) 1.6.4. Adjustment of seat tilt 1.6.5. -
Page 3: Introduction
1.0. INTRODUCTION DEAR CUSTOMER Thank you for purchasing a VELA Tango. This user manual contain useful information about positioning, operating and maintenance of VELA Tango chairs. Important Please read this user manual thoroughly and keep it for later use. This user manual must always accompany the chair. -
Page 4: Safety
8-12, 9200 Aalborg SV, Denmark. means of transportation and should not be used as such. VELA Tango El lives up to all The chair withstands the following EMC-demands according to the IEC transport specifikations: 60601-1-2. -
Page 5: Unpacking The Chair
1.5. RECYCLING or use the chair. Several parts of the chair can be re- Content of the cardboard used. Please return the chair to VELA packaging: or to your local recycling center. :: VELA Tango chair :: This user manual 1.4. -
Page 6: User Manual
- depending on where the plug is placed (see section 1.6.2.). VELA Note: VELA Tango El is also available with height adjustment via TANGO hand box (i.e. if caregivers must be able to adjust the height). 1.6.2. CHANGING PLACE FOR HEIGHT ADJUSTMENT -... -
Page 7: Adjustment Of Back Angle
1.6.5. ADJUSTMENT OF BACK ANGLE Adjust the back tilt by pulling the rear lever placed at your right hand. 1.6.6. ADJUSTMENT OF BACK HEIGHT Adjust the back height by using the lever placed on the back of the chair. Remember to tighten the handle again afterwards. 1.6.7. -
Page 8: Brake
1.6.9. BRAKE VELA Tango brakes by moving the lever on the side of the chair forward. Unlock the chair by moving the handle back into upright position. Note: The brake can be moved by loosening the screw at the bottom of the brake lever, remove the plastic knob on the opposite side hole and insert the brake lever. -
Page 9: Charging (Vela Tango El)
VELA TANGO 1.6.13. CHARGING (VELA TANGO EL) Daily charging is recommended. Place the operating plug the charger - if the chair is charging, an yellow LED is illuminated. If the chair is fully charged the LED is green. If the battery voltage is low, you hear a beep tone. -
Page 10: Push Handle (Optional)
Adjust the height. Remember to tighten the screw. 1.6.18. FOOT PEDAL FOR BRAKE (OPTIONAL) VELA Tango with foot pedal brakes by pressing the top part of the pedal forwards. Unlock the chair by pressing the foot brake back in its original position. -
Page 11: Electric Tilt (Optional)
1.6.21. ELECTRIC TILT (OPTIONAL) VELA Tango with electric tilt is adjusted in the right angle via hand box or angle contact. Note: The chair should not be used for transport of persons when the seat is tilted. 1.6.22. ELECTRIC BRAKE (OPTIONAL) VELA Tango with electric brake, is braked and unlocked via hand box or angle contact. - Page 12 VELA :: Gøteborgvej 8-12 :: 9200 Aalborg SV :: Denmark :: +45 96 34 76 00 :: mail@vela.dk vela.eu...
