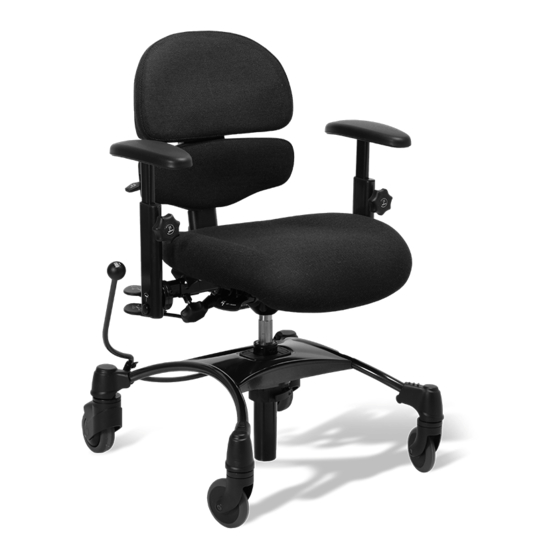

- Page 1 I N S T R U C T I O N F O R U S E VELA Tango 500/500EL/510/510EL VERSION: Manual no. 105234 VELA Tango 500 VELA Tango 500El VELA Tango 510 VELA Tango 510El...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1.0. INTRODUCTION 1.1. WARNINGS 1.2. TROUBLESHOOTING 1.3. VELA TANGO WITH ELECTRIC HEIGHT ADJUSTMENT 6 1.3.1. Power input 1.3.2. Emission 1.3.3. Surge protection 1.4. LABELS USED ON THE CHAIR 1.5. SAFETY 1.5.1. Application 1.5.2. Transport 1.6. WARRANTY 1.7. UNPACKING THE CHAIR 1.8. -
Page 3: Introduction
1.0. INTRODUCTION DEAR CUSTOMER Congratulations on your new VELA chair! We are sure this chair will give you daily pleasure. This user manual provides useful information on adjusting, operating and maintaining your chair. Important Please read this user manual carefully and keep it safe for when you need to refer to it. -
Page 4: Warnings
1.1. WARNINGS In case of an allergic reaction, stop using the chair and consult a doctor Only use original spare parts from VELA Only use the supplied charger for charging the chair Do not make any changes to the accessories that come with the chair Only use the chair for the intended purpose Only adjust the seat angle while the user’s feet are on the floor... -
Page 5: Troubleshooting
Brake rod or chassis is in the way when I move in the You have a chair with seat rotation. Use seat rotation to chair straighten the chair. See section 2.0.12 If the above does not solve your problem, you should contact your VELA supplier. -
Page 6: Vela Tango With Electric Height Adjustment
Current: 0.5A Power: 12VA 1.3.2. EMISSION A VELA chair with electrical functions has been tested and complies with current requirements regarding electromagnetic radiation (EMC requirements). The chair is tested to the following specifications: :: Emission class CISPR 11, Group 1, Class B See more details at www.vela.eu... -
Page 7: Labels Used On The Chair
VELA, Gøteborgvej 8-12, :: The wheel brake must always be 9200 Aalborg SV, Denmark. activated when sitting down or The VELA Tango 500/510 with standing up electrical functions meets all safe- ty requirements according to IEC All variants of this chair are tested... -
Page 8: Transport
- 10°C. :: Instructions for use 1.6. WARRANTY :: Charger (only for chairs with elec- VELA grants a right of claim under trical functions) applicable law in the country where the chair is acquired. The right of Note: see item 2.0.1 for correct complaint applies only when using attachment of backrest. -
Page 9: Frame
1.8.4. RECYCLING GUIDE Your VELA chair can be reused by another person when you no longer need it as long as the chair is ser- It is important that you return your viced by a technician beforehand. -
Page 10: Settings
Can be operated from the underside of either the right or left armrest. The armrest can easily be moved to the opposite side. VELA Tango El is also available with height adjustment via hand box (if caregivers are to be able to adjust the height). -
Page 11: Setting Angle Of Seat
Note: Setting the angle of backrest and seat should always be done with your feet flat on the floor. 2.0.4. SETTING ANGLE OF SEAT Adjusted by pulling up the middle handle on the right-hand side. The handle is pressed down to lock the desired seat angle. -
Page 12: Back Bolt (High Back)
2.0.8. BACK BOLT (HIGH BACK) The backrest can be set to a specific angle by adjusting and attaching the bolt mounted on the back of the backrest. 2.0.9. ADJUSTING THE ARMREST HEIGHT Adjusted by loosening the screw on the armrest bar and adjusting the height of the armrest. -
Page 13: Rotation
90° to the left and 90° to the right. 2.0.13. BRAKE The brake on the VELA Tango is activated by moving the handle on the side of the chair forward. Unlock the chair by moving the handle back into the upright position. Note: The brake can... -
Page 14: Footrest (Optional)
2.0.18. FOOT PEDAL FOR BRAKING (OPTIONAL) On a VELA Tango with foot pedal the brake is activated by pressing the upper part of the pedal forward. Unlock the chair by moving the foot brake back into the upright position. -
Page 15: Hand Box (Optional)
2.0.20. HAND BOX (OPTIONAL) The hand box is used via push buttons on the front. VELA hand boxes can have one or more functions. The icons on the hand box show the button functions. Note: Insert plug in hand box to operate functions. - Page 16 VELA :: Gøteborgvej 8-12 :: DK-9200 Aalborg SV :: Tlf: +45 96 34 76 00 :: mail@vela.dk www.vela.eu...
