Installation Instructions
REV 2 06/15/20
Hardware
M6 Bolt
M8 Bolt
M10 Bolt
M12 Bolt
Torque Specifications
3 ft-lbs.
7 ft-lbs.
16 ft-lbs.
28 ft-lbs.
ATTENTION: Use correct torque settings to avoid
damaging the running boards and or mounting
brackets. Failure to do so will void your warranty.
If you have any questions please contact our technical
team at 1-866-717-6645
Part No.
4115
Product: Running Boards
Application:
Volvo
XC90 2015+
Level of Difficulty: 1 2
Installation Time: 90 Min
3
4 5
Advertisement
Table of Contents
Related Manuals for Romik 4115
Summary of Contents for Romik 4115

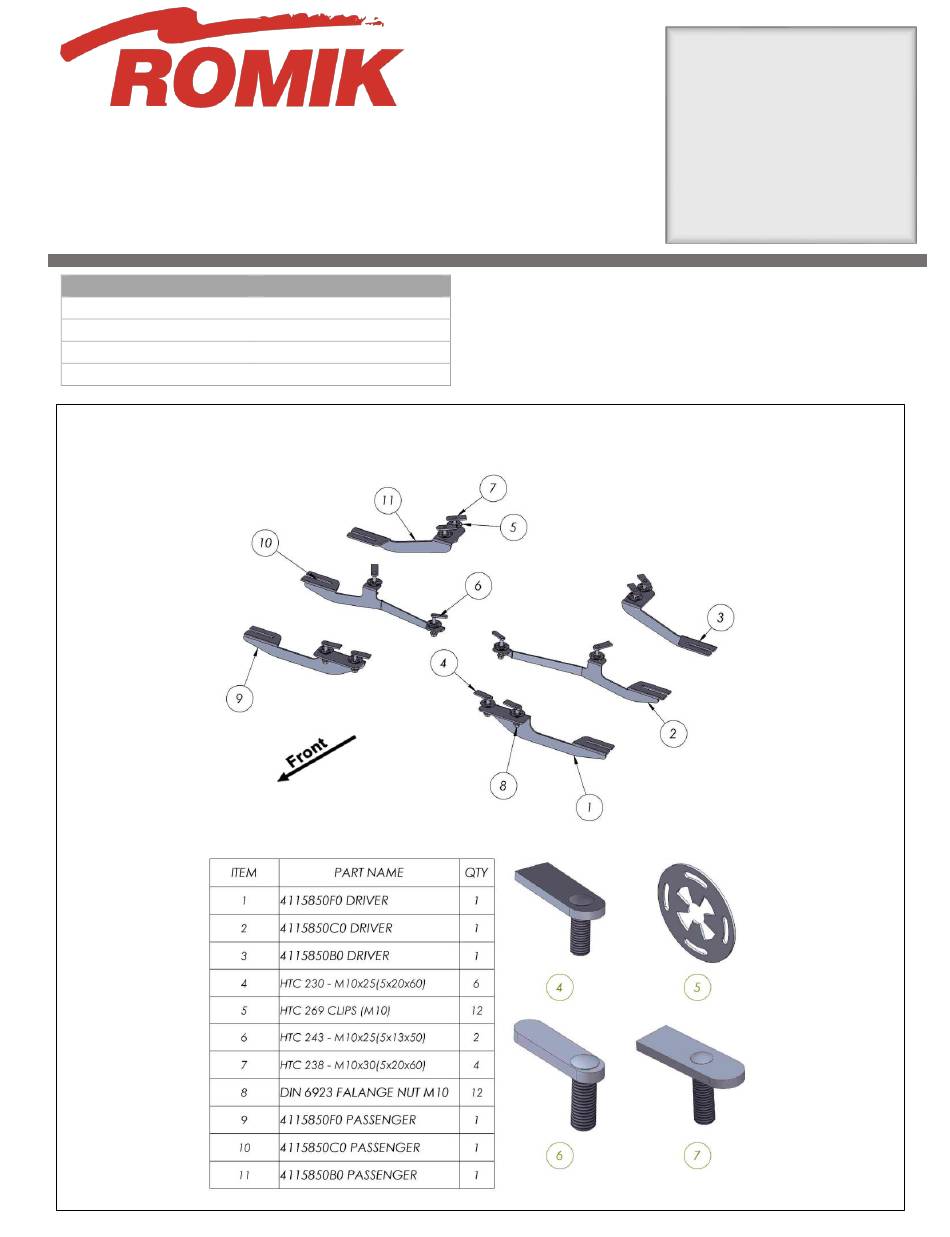

- Page 1 Part No. 4115 Product: Running Boards Application: Volvo Installation Instructions XC90 2015+ Level of Difficulty: 1 2 Installation Time: 90 Min REV 2 06/15/20 Hardware Torque Specifications ATTENTION: Use correct torque settings to avoid M6 Bolt 3 ft-lbs. damaging the running boards and or mounting M8 Bolt 7 ft-lbs.
- Page 2 Video Installation Installation Instructions 4115 Bracket Kit Instruction: Note: Minor trimming of undercarriage plastic panel, removal of jack pad. Step 1: Locate front mounting locations and hardware as per 1 page of this installation manual Step 2: Install provided HTC 230 on front locations Figure 1. Attach front bracket Figure 2. Do not tighten...
- Page 3 Installation Instructions 4115 Bracket Kit Step 4: Remove rubber pad as shown Figure 9. Install prodided HTC 230 Figure 10. Install rear bracket as shown Figure 11. Do not tightten. Figure 9 Figure 10 Figure 11 Step 5: Proceed to last page of this manual for running board install instructions and torque values.
- Page 4 Running Board Installation Instructions 1) Flip your Romik running boards onto a flat surface, make sure to place the running boards on a towel or cardboard in order to protect the surface Figure 1. 2) Loosen the M8 bolts on back of your running boards Figure 2. Depending on your model there Will be either 6 or 8 bolts installed per side.
