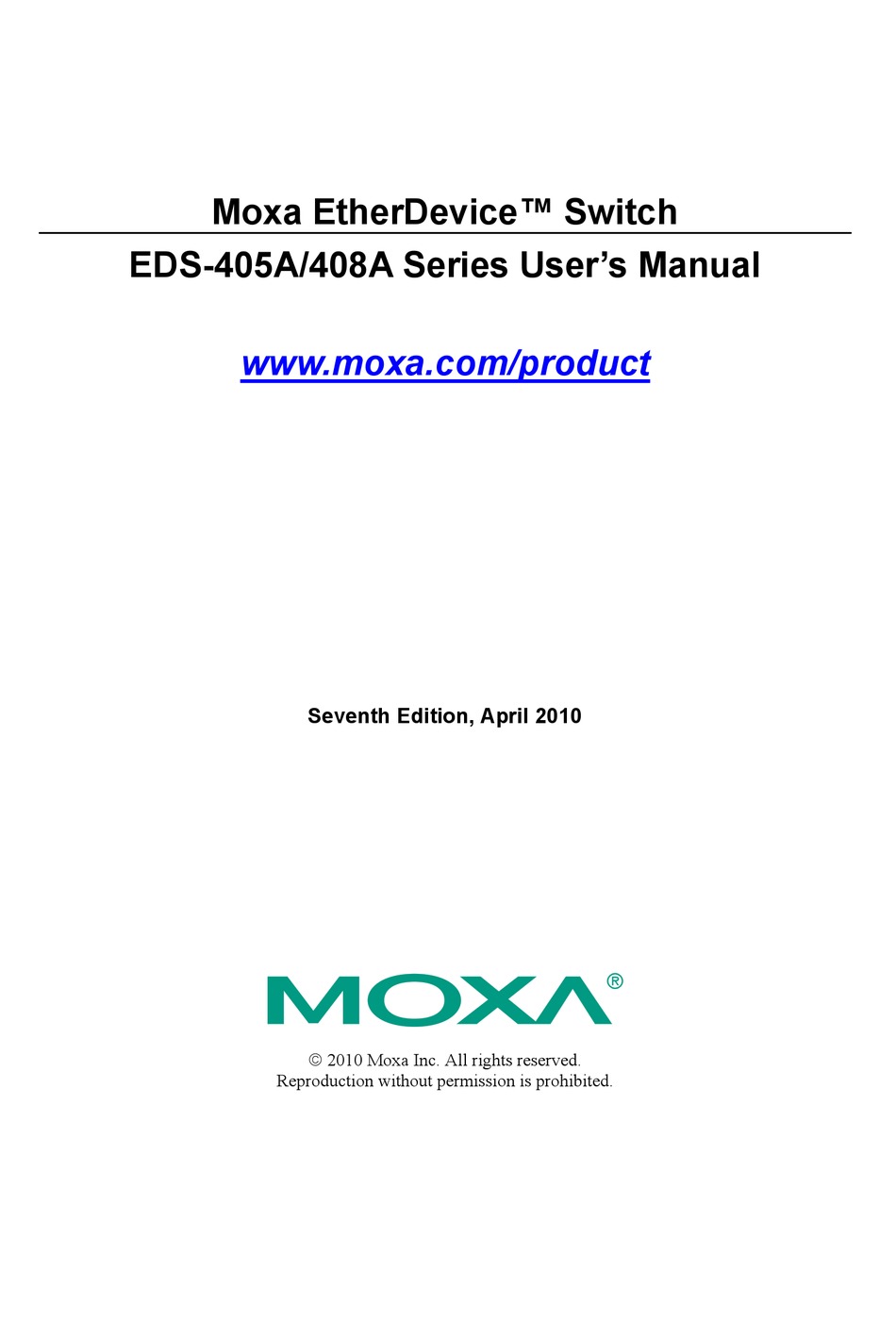

Moxa EtherDevice™ Switch
EDS-405A/408A Series User's Manual
www.moxa.com/product
Seventh Edition, April 2010
 2010 Moxa Inc. All rights reserved.
Reproduction without permission is prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EtherDevice EDS-405A Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moxa Technologies EtherDevice EDS-405A Series

Summary of Contents for Moxa Technologies EtherDevice EDS-405A Series

  • Page 1 Moxa EtherDevice™ Switch EDS-405A/408A Series User’s Manual www.moxa.com/product Seventh Edition, April 2010  2010 Moxa Inc. All rights reserved. Reproduction without permission is prohibited.

  • Page 2: Copyright Notice

    Moxa EtherDevice™ Switch EDS-405A/408A Series User’s Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice Copyright  2010 Moxa Inc. All rights reserved. Reproduction without permission is prohibited.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Introduction ....................1-1 Inside the Future of Industrial Ethernet Technology ............1-2 The trend in industrial communications and automation applications ...... 1-2 Industrial vs. Commercial ..................1-2 Informative vs. Passive ..................... 1-2 Moxa EtherDevice™ Switch....................1-2 Package Checklist.........................
  • Page 4 Using Virtual LANs......................3-47 The Virtual LAN (VLAN) Concept ................ 3-47 Using Virtual LANs ....................3-48 Using Rate Limiting ......................3-49 Configuring Rate Limiting ..................3-49 Using Auto Warning ......................3-51 Configuring Email Warning..................3-51 Email Warning Events Settings................3-51 Email Settings ......................

  • Page 5: Chapter 1 Introduction

    Introduction Chapter 1 Welcome to the Moxa EtherDevice Switch EDS-405A/408A Series, the world’s first intelligent Ethernet Device Switch designed especially for connecting Ethernet-enabled devices in industrial field applications. The following topics are covered in this chapter:  Inside the Future of Industrial Ethernet Technology ...

  • Page 6: Inside The Future Of Industrial Ethernet Technology

    EDS-405A/408A Series User’s Manual Introduction Inside the Future of Industrial Ethernet Technology The trend in industrial communications and automation applications As the world’s network and information technology becomes more mature, the trend is to use Ethernet as the major communications interface in many industrial communications, and automation applications.

  • Page 7: Package Checklist

    EDS-405A/408A Series User’s Manual Introduction Package Checklist Each Moxa EDS-405A/408A Series switch is shipped with the following items:  1 Moxa EtherDevice Switch EDS-405A/408A  Hardware Installation Guide  CD-ROM with User’s Manual and Windows Utility  Warranty Statement  RJ45 to DB9 Console port cable ...

  • Page 8: Chapter 2 Getting Started

    Getting Started Chapter 2 This chapter explains how to access your Moxa EtherDevice Switch for the first time. There are three ways to access the switch: serial console, Telnet console, and web browser. The serial console connection method, which requires using a short serial cable to connect the switch to a PC’s COM port, can be used if you do not know the switch’s IP address.

  • Page 9: Console Configuration (115200, None, 8, 1, Vt100)

    EDS-405A/408A Series User’s Manual Getting Started RS-232 Console Configuration (115200, None, 8, 1, VT100) NOTE Connection Caution! 1. You cannot connect to the EDS using serial console and Telnet simultaneously. 2. You can connect to the EDS using a web browser and serial console simultaneously, or using a web browser and Telnet simultaneously.
  • Page 10 EDS-405A/408A Series User’s Manual Getting Started 2. Select Open under Port Manager to open a new connection. 3. The Communication Parameter page of the Property window opens. Select the appropriate COM port for Console Connection, 115200 for Baud Rate, 8 for Data Bits, None for Parity, and 1 for Stop Bits.
  • Page 11 EDS-405A/408A Series User’s Manual Getting Started 5. Type 1 to select ansi/VT100 terminal type, and then press Enter. 6. The Console login screen will be displayed. Press Enter to open the Account pop-up selector and then select either admin or user. Use the keyboard’s down arrow to move the cursor to the Password field, enter the Console Password (this is the same as the Web Browser password;...

  • Page 12: Configuration Using A Telnet Console

    EDS-405A/408A Series User’s Manual Getting Started 8. After entering the Main Menu, use the following keys to move the cursor, and to select options. Function Up/Down/Left/Right arrows, or Tab Move the onscreen cursor Enter Display & select options Space Toggle options Previous Menu Configuration Using a Telnet Console You may use Telnet to access the EDS’s console utility over a network.
  • Page 13 EDS-405A/408A Series User’s Manual Getting Started 2. Type 1 to choose ansi/vt100, and then press Enter. 3. The Console login screen will be displayed. Press Enter to open the Account pop-up selector and then select either admin or user. Use the keyboard’s down arrow to move the cursor to the Password field, enter the Console Password (this is the same as the Web Browser password;...

  • Page 14: Configuration Using A Web Browser

    EDS-405A/408A Series User’s Manual Getting Started Configuration Using a Web Browser The EDS’s web browser interface provides a convenient way to modify the switch’s configuration and access the built-in monitoring and network administration functions. The recommended web browser is Microsoft Internet Explorer 5.5 or 6.0 with JVM (Java Virtual Machine) installed. NOTE To use the EDS’s management and monitoring functions from a PC host connected to the same LAN as the EDS, you must make sure that the PC host and the EDS are on the same logical sub...

  • Page 15: Disabling Telnet And Browser Access

    EDS-405A/408A Series User’s Manual Getting Started You may need to wait a few moments for the web page to be downloaded to your computer. Use the menu tree on the left side of the window to open the function pages to access each of the EDS’s functions.

  • Page 16: Chapter 3 Featured Functions

    Featured Functions Chapter 3 This chapter explains how to access a Moxa EtherDevice Switch’s various configuration, monitoring, and administration functions. There are three ways to access these functions: serial console, Telnet console, and web browser. The serial console connection method, which requires using a short serial cable to connect the EDS to a PC’s COM port, can be used if you do not know the EDS’s IP address.

  • Page 17: Configuring Basic Settings

    EDS-405A/408A Series User’s Manual Featured Functions Configuring Basic Settings The Basic Settings group includes the most commonly used settings required by administrators to maintain and control the EDS. System Identification The system identification items are displayed at the top of the web page, and will be included in alarm emails.

  • Page 18: Password

    EDS-405A/408A Series User’s Manual Featured Functions Web Configuration Setting Description Factory Default Disable / http or https / You can select disable, or accept both http and http or https https only https, or https only, from the web console Web Auto-logout (s) Setting Description...

  • Page 19: Accessible Ip

    EDS-405A/408A Series User’s Manual Featured Functions Password Setting Description Factory Default Old Password (Max. Type current password when changing the None 16 Characters) password New Password (Max. Type new password when changing the None 16 Characters) password Retype Password If you type a new password in the (Max.

  • Page 20: Port

    EDS-405A/408A Series User’s Manual Featured Functions The following table shows additional configuration examples: Allowable Hosts Input format Any host Disable 192.168.1.120 192.168.1.120 / 255.255.255.255 192.168.1.1 to 192.168.1.254 192.168.1.0 / 255.255.255.0 192.168.0.1 to 192.168.255.254 192.168.0.0 / 255.255.0.0 192.168.1.1 to 192.168.1.126 192.168.1.0 / 255.255.255.128 192.168.1.129 to 192.168.1.254 192.168.1.128 / 255.255.255.128 Port...
  • Page 21 EDS-405A/408A Series User’s Manual Featured Functions Name Setting Description Factory Default Max. 63 Specify an alias for each port, and assist the Characters administrator in remembering important None information about the port. E.g., PLC 1 Port Transmission Speed Setting Description Factory Default Allows the port to use the IEEE 802.3u protocol to negotiate with connected devices.

  • Page 22: Network

    EDS-405A/408A Series User’s Manual Featured Functions Network The Network configuration allows users to configure both IPv4 and IPv6 parameters for management access over the network. The EDS-405A/408A series supports both IPv4 and IPv6, and can be managed through either of these address types. IPv4 The IPv4 settings include the switch’s IP address and subnet mask, as well as the IP address of the default gateway.
  • Page 23 EDS-405A/408A Series User’s Manual Featured Functions Switch Subnet Mask Setting Description Factory Default Subnet mask of the Identifies the type of network to which the 255.255.255.0 EDS-405A/408A EDS-405A/408A is connected (e.g., 255.255.0.0 for a Class B network, or 255.255.255.0 for a Class C network). Default Gateway Setting Description...

  • Page 24: Time

    EDS-405A/408A Series User’s Manual Featured Functions Time The Time configuration page lets users set the time, date, and other settings. An explanation of each setting is given below the figure. The EDS has a time calibration function based on information from an NTP server or user specified Time and Date information.

  • Page 25: Daylight Saving Time

    EDS-405A/408A Series User’s Manual Featured Functions Daylight Saving Time Daylight saving time (also know as DST or summer time) involves advancing clocks (usually 1 hour) during the summer time to provide an extra hour of daylight in the afternoon. Start Date Setting Description Factory Default...

  • Page 26: Turbo Ring Dip Switch

    EDS-405A/408A Series User’s Manual Featured Functions Turbo Ring DIP Switch The Turbo Ring DIP Switch page allows users to disable the four DIP switches located on the EDS’s outer casing. When enabled, the DIP switches can be used to configure basic settings for either the “Turbo Ring”...
  • Page 27 EDS-405A/408A Series User’s Manual Featured Functions Set DIP switch as Turbo Ring / Set DIP switch as Turbo Ring V2 Setting Description Factory Default This is the default if you do NOT reset the switch to Select this option to enable the Turbo Ring Set DIP switch as factory default settings DIP switches to configure the EDS for a...
  • Page 28 EDS-405A/408A Series User’s Manual Featured Functions “Turbo Ring” DIP Switch Settings DIP 1 DIP 2 DIP 3 DIP 4 ON: Enables this EDS ON: Enables the ON: Activates DIP as the Ring Master. default “Ring switches 1, 2, 3 to Coupling”...

  • Page 29: System File Update-By Remote Tftp

    EDS-405A/408A Series User’s Manual Featured Functions NOTE If you use the browser interface to enable the DIP switches (by un-checking the “Disable the Turbo Ring DIP switch” checkbox), and then flip DIP switch 4 from ON to OFF, the Ring Ports and Coupling Ports that were added to all VLANs will be restored to their previous software settings.

  • Page 30: System File Update-By Local Import/Export

    EDS-405A/408A Series User’s Manual Featured Functions System File Update—By Local Import/Export Configuration File To export the configuration file of this EDS, click Export to save it to the local host. Log File To export the Log file of this EDS, click Export and save it to the local host. NOTE Some operating systems will open the configuration file and log file directly in the web page.

  • Page 31: Restart

    EDS-405A/408A Series User’s Manual Featured Functions Save the current configurations to ABC To export the current configuration file of the EDS, click on Save to save it to the ABC. Load the ABC’s configurations to the Switch To import the configuration file of the EDS, click on Load to load it to the Switch. Restart This function is used to restart the Moxa EtherDevice Switch.
  • Page 32 EDS-405A/408A Series User’s Manual Featured Functions Protocol Authentication Data Security Mode Method Version Type Encryption V1, V2c Read Community Use a community string match for Community string authentication SNMP V1, V1, V2c Community Use a community string match for Write/Read string authentication Community...

  • Page 33: Snmp Read/Write Settings

    EDS-405A/408A Series User’s Manual Featured Functions SNMP Read/Write Settings SNMP Versions Setting Description Factory Default Select SNMP protocol versions V1, V2c, V1, V2c, V3 V3 to manage the switch Select SNMP protocol versions V1, V2c to V1, V2c V1, V2c manage the switch Select only SNMP protocol version V3 to V3 only...

  • Page 34: Trap Settings

    EDS-405A/408A Series User’s Manual Featured Functions User Auth. Type (for SNMP V1, V2c, V3 and V3 only) Setting Description Factory Default Use the admin or user account to access No-Auth objects. No authentication. Provide authentication based on the HMAC-MD5 algorithms. 8-character MD5-Auth passwords are the minimum requirement for authentication.

  • Page 35: Private Mib Information

    EDS-405A/408A Series User’s Manual Featured Functions Trap Server IP/Name Setting Description Factory Default Enter the IP address or name of the 1 IP or Name None Trap Server used by your network. Trap Community Setting Description Factory Default Use a community string match for Character String authentication (maximum of 30 Public...

  • Page 36: Using Communication Redundancy

    EDS-405A/408A Series User’s Manual Featured Functions Using Communication Redundancy Setting up Communication Redundancy on your network helps protect critical links against failure, protects against network loops, and keeps network downtime at a minimum. The Communication Redundancy function allows the user to set up redundant loops in the network to provide a backup data transmission route in the event that a cable is inadvertently disconnected or damaged.

  • Page 37: The Turbo Ring Concept

    EDS-405A/408A Series User’s Manual Featured Functions NOTE Port trunking and Turbo Ring can be enabled simultaneously to form a backbone. Doing so will increase the bandwidth of the backbone, and also provide redundancy. For example, suppose that two physical ports, 1 and 2, are trunked to form trunk group Trk1, and then Trk1 is set as one Turbo Ring path, if port 1 gets disconnected, the remaining trunked port, port 2, will share the traffic.
  • Page 38 EDS-405A/408A Series User’s Manual Featured Functions “Turbo Ring” rings with an even number of EDS units If there are 2N EDS units (an even number) in Master the “Turbo Ring” ring, then the backup segment is one of the two segments connected to the (N+1) st EDS (i.e., the EDS unit directly opposite the master).
  • Page 39 EDS-405A/408A Series User’s Manual Featured Functions Ring Coupling Configuration For some systems, it may not be convenient to connect all devices in the system to create one BIG redundant ring, since some devices could be located in a remote area. For these systems, “Ring Coupling”...
  • Page 40 EDS-405A/408A Series User’s Manual Featured Functions Note that the ring coupling settings for a “Turbo Ring V2” ring are different from a “Turbo Ring” ring. For Turbo Ring V2, Ring Coupling is enabled by configuring the “Coupling Port (Primary)” on Switch B, and the “Coupling Port (Backup)” on Switch A only. You do not need to set up a coupling control port, so that a “Turbo Ring V2”...

  • Page 41: Configuring "Turbo Ring" And "Turbo Ring V2

    EDS-405A/408A Series User’s Manual Featured Functions Dual-Homing Configuration (applies only to “Turbo Ring V2”) The “dual-homing” option uses a single Ethernet switch to connect two networks. The primary path is the operating connection, and the backup path is a back-up connection that is activated in the event that the primary path connection fails.
  • Page 42 EDS-405A/408A Series User’s Manual Featured Functions Explanation of “Current Status” Items Now Active Shows which communication protocol is in use: Turbo Ring, Turbo Ring V2, RSTP, or none. Master/Slave Indicates whether or not this EDS is the Master of the Turbo Ring. (This field appears only when selected to operate in Turbo Ring or Turbo Ring V2 mode.) NOTE The user does not need to set the master to use Turbo Ring.
  • Page 43 EDS-405A/408A Series User’s Manual Featured Functions Coupling Port Setting Description Factory Default Select any port of the EDS to be the EDS-405A: port 2 Coupling Port coupling port EDS-408A: port 5 Coupling Control Port Setting Description Factory Default Select any port of the EDS to be the EDS-405A: port 3 Coupling Control Port coupling control port...
  • Page 44 EDS-405A/408A Series User’s Manual Featured Functions Ring 1/2—Master/Slave Indicates whether or not this EDS is the Master of the Turbo Ring. (This field appears only when selected to operate in Turbo Ring or Turbo Ring V2 mode.) NOTE The user does not need to set the master to use Turbo Ring. If no master is set, the Turbo Ring protocol will assign master status to one of the EDS units in the ring.
  • Page 45 EDS-405A/408A Series User’s Manual Featured Functions Set as Master Setting Description Factory Default Enabled Select this EDS as Master Not checked Disabled Do not select this EDS as Master Redundant Ports Setting Description Factory Default Select any port of the EDS to be one of the EDS-405A: port 4 1st Port redundant ports.

  • Page 46: The Turbo Chain Concept

    EDS-405A/408A Series User’s Manual Featured Functions NOTE The Turbo Ring DIP Switches located on the EDS-405A/408A’s outer casing can be used to configure the EDS’s Turbo Ring protocols. (For details on how to do this, refer to “Configuring Basic Settings—Turbo Ring DIP Switch” section in this manual.) If you use the web interface, console interface, or Telnet interface to enable the Turbo Ring DIP...

  • Page 47: Configuring "Turbo Chain

    EDS-405A/408A Series User’s Manual Featured Functions Configuring “Turbo Chain” Head Switch Configuration Member Switch Configuration Tail Switch Configuration Explanation of “Current Status” Items 3-32...
  • Page 48 EDS-405A/408A Series User’s Manual Featured Functions Now Active Shows which communication protocol is in use: Turbo Ring, Turbo Ring V2, RSTP, Turbo Chain or None. The “Ports Status” indicators show Forwarding for normal transmission, Blocked if this port is connected to the Tail port as a backup path and the path is blocked, and Link down if there is no connection.

  • Page 49: The Stp/Rstp Concept

    EDS-405A/408A Series User’s Manual Featured Functions Tail Role Setting Description Factory Default Tail Port Select any port of the EDS to be the tail port. port 7 Select any port of the EDS to be the member Member Port port 8 port.
  • Page 50 EDS-405A/408A Series User’s Manual Featured Functions LAN 1 Bridge B Bridge A LAN 2 Bridge C LAN 3 If STP is enabled, it will detect duplicate paths and prevent, or block, one of them from forwarding traffic. In the following example, STP determines that traffic from LAN segment 2 to LAN segment 1 should flow through Bridges C and A as this path has a greater bandwidth and is therefore more efficient.

  • Page 51: How Stp Works

    EDS-405A/408A Series User’s Manual Featured Functions STP determines which path between each bridged segment is most efficient, and then assigns a specific reference point on the network. When the most efficient path has been identified, the other paths are blocked. In the previous 3 figures, STP first determined that the path through Bridge C was the most efficient, and as a result, blocked the path through Bridge B.

  • Page 52: Stp Example

    EDS-405A/408A Series User’s Manual Featured Functions STP Configuration After all the bridges on the network agree on the identity of the Root Bridge, and all other relevant parameters have been established, each bridge is configured to forward traffic only between its Root Port and the Designated Bridge Ports for the respective network segments.

  • Page 53: Using Stp On A Network With Multiple Vlans

    EDS-405A/408A Series User’s Manual Featured Functions Bridge A has been selected as the Root Bridge, since it was determined to have the lowest  Bridge Identifier on the network. Since Bridge A is the Root Bridge, it is also the Designated Bridge for LAN segment 1. Port 1 ...

  • Page 54: Configuring Stp/Rstp

    EDS-405A/408A Series User’s Manual Featured Functions Configuring STP/RSTP The following figures indicate the Spanning Tree Protocol parameters that can be configured. A more detailed explanation of each parameter is given below the figure. (NOTE: The user interface for EDS-408A shows 8 ports.) At the top of this page, the user can check the Current Status of this function.
  • Page 55 EDS-405A/408A Series User’s Manual Featured Functions Bridge priority Setting Description Factory Default Increase this device’s bridge priority by selecting a lower number. A device with a Numerical value higher bridge priority has a greater chance of 32768 selected by user being established as the root of the Spanning Tree topology.

  • Page 56: Using Traffic Prioritization

    EDS-405A/408A Series User’s Manual Featured Functions Port Cost Setting Description Factory Default Input a higher cost to indicate that this Numerical value port is less suitable as a node for the 200000 input by user Spanning Tree topology. Port Status This indicates the current Spanning Tree status of this port.

  • Page 57: The Traffic Prioritization Concept

    EDS-405A/408A Series User’s Manual Featured Functions The Traffic Prioritization Concept What is Traffic Prioritization? Traffic prioritization allows you to prioritize data so that time-sensitive and system-critical data can be transferred smoothly and with minimal delay over a network. The benefits of using traffic prioritization are: Improve network performance by controlling a wide variety of traffic and managing ...
  • Page 58 EDS-405A/408A Series User’s Manual Featured Functions IEEE 802.1p Priority Level IEEE 802.1D Traffic Type Best Effort (default) Background Standard (spare) Excellent Effort (business critical) Controlled Load (streaming multimedia) Video (interactive media); less than 100 milliseconds of latency and jitter Voice (interactive voice); less than 10 milliseconds of latency and jitter Network Control Reserved traffic Even though the IEEE 802.1D standard is the most widely used prioritization scheme in the LAN...

  • Page 59: Configuring Traffic Prioritization

    EDS-405A/408A Series User’s Manual Featured Functions 1. A packet received by the EDS may or may not have an 802.1p tag associated with it. If it does not, then it is given a default 802.1p tag (which is usually 0). Alternatively, the packet may be marked with a new 802.1p value, which will result in all knowledge of the old 802.1p tag being lost.
  • Page 60 EDS-405A/408A Series User’s Manual Featured Functions The EDS supports inspection of layer 3 TOS and/or layer 2 QoS tag information to determine how to classify traffic packets. (NOTE: The user interface for the EDS-408A shows 8 ports.) Queuing Mechanism Setting Description Factory Default The EDS-405A/408A has 4 priority queues.
  • Page 61 EDS-405A/408A Series User’s Manual Featured Functions NOTE The designer can enable these classifications individually or in combination. For instance, if a ‘hot’ higher priority port is required for a network design, Inspect TOS and Inspect CoS can be disabled. This setting leaves only port default priority active, which results in all ingress frames being assigned the same priority on that port.

  • Page 62: Using Virtual Lans

    EDS-405A/408A Series User’s Manual Featured Functions Setting Description Factory Default 1 to 16: Low Low/Normal/ Set the mapping table of different TOS values to 4 17 to 32: Normal Medium/High different egress queues. 33 to 48: Medium 49 to 64: High Using Virtual LANs Setting up Virtual LANs (VLANs) on your EDS increases the efficiency of your network by dividing the LAN into logical segments, as opposed to physical segments.

  • Page 63: Using Virtual Lans

    EDS-405A/408A Series User’s Manual Featured Functions VLANs provide extra security: Devices within each VLAN can only communicate with  other devices on the same VLAN. If a device on VLAN Marketing needs to communicate with devices on VLAN Finance, the traffic must pass through a routing device or Layer 3 switch.

  • Page 64: Using Rate Limiting

    EDS-405A/408A Series User’s Manual Featured Functions Using this table, you can review the created VLAN groups and joined ports. (NOTE: The user interface for the EDS-408A shows 8 ports.) Using Rate Limiting A single device should not be allowed to occupy unlimited bandwidth, especially when the device malfunctions.
  • Page 65 EDS-405A/408A Series User’s Manual Featured Functions Policy Setting Description Factory Default Selecting this option prohibits all traffic of Limit All broadcast, multicast, and unicast packets that exceed the rate set in the following “Rate” field. Selecting this option prohibits all traffic of Limit Broadcast broadcast packets that exceed the rate set in the following “Rate”...

  • Page 66: Using Auto Warning

    EDS-405A/408A Series User’s Manual Featured Functions Using Auto Warning Since industrial Ethernet devices are often located at remote areas of a system, these devices will not always know what is happening elsewhere on the network. This means that an industrial Ethernet switch that connects to these devices must provide system maintainers with real-time warning messages.
  • Page 67 EDS-405A/408A Series User’s Manual Featured Functions Event Types Event Types can be divided into two basic groups: System Events and Port Events. System Events are related to the overall function of the switch, whereas Port Events are related to the activity of a specific port.

  • Page 68: Email Settings

    EDS-405A/408A Series User’s Manual Featured Functions Email Settings Mail Server IP/Name Setting Description Factory Default IP address The IP Address of your email server. None Account Name Setting Description Factory Default Max. 45 Charters Your email account. None Password Setting Setting Description Factory Default...

  • Page 69: Configuring Relay Warning

    EDS-405A/408A Series User’s Manual Featured Functions Email Address Setting Description Factory Default Max. 30 You can set up to 4 email addresses to None Characters receive warning emails from the EDS. Send Test Email After finishing with the email settings, you should first press the Activate button to activate those settings, and then press the Send Test Email button to verify that the settings are correct.
  • Page 70 EDS-405A/408A Series User’s Manual Featured Functions Event Types Event Types can be divided into two basic groups: System Events and Port Events. System Events are related to the overall function of the switch, whereas Port Events are related to the activity of a specific port.

  • Page 71: Relay Warning List

    EDS-405A/408A Series User’s Manual Featured Functions Override Relay Warning Settings Click the checkbox to override the relay warning setting temporarily. Releasing the relay output will allow administrators to fix any problems with the warning condition. Relay Warning List Use this table to see if any relay warnings have been issued. Using Line-Swap-Fast-Recovery The Line-Swap Fast Recovery function, which is enabled by default, allows the EDS to return to normal operation very quickly after devices are unplugged and then re-plugged into different ports.

  • Page 72: Using Set Device Ip

    EDS-405A/408A Series User’s Manual Featured Functions Using Set Device IP To reduce the effort required to set up IP addresses, the EDS-405A/408A series comes equipped with DHCP/BootP server and RARP protocol to set up IP addresses of Ethernet-enabled devices automatically. When enabled, the Set device IP function allows the EDS to assign specific IP addresses automatically to connected devices that are equipped with DHCP Client or RARP protocol.

  • Page 73: Configuring Set Device Ip

    EDS-405A/408A Series User’s Manual Featured Functions Configuring Set Device IP NOTE: The user interface for EDS-408A shows 8 ports. Desired IP Address Setting Description Factory Default IP Address Set the desired IP of connected devices. None The DHCP Relay Agent makes it possible for DHCP broadcast messages to be sent over routers. The DHCP Relay Agent enables DHCP clients to obtain IP addresses from a DHCP server on a remote subnet, or those that are not located on the local subnet.
  • Page 74 EDS-405A/408A Series User’s Manual Featured Functions 1. The IP address of the relay agent. 2. The MAC address of the relay agent. 3. A combination of IP address and MAC address of the relay agent. 4. A user-defined string. Server IP Address Server Setting Description...

  • Page 75: Using Diagnosis

    EDS-405A/408A Series User’s Manual Featured Functions DHCP Option 82 Enable Option82 Setting Description Factory Default Enable or Disable Enable or disable DHCP Option 82 function. Disable Type Setting Description Factory Default Use switch IP address as the remote ID sub-option. Use switch MAC address as the remote ID sub-option.

  • Page 76: Ping

    EDS-405A/408A Series User’s Manual Featured Functions The Mirror port function can be used to monitor data being transmitted through a specific port. This is done by setting up another port (the mirror port) to receive the same data being transmitted from, or both to and from, the port under observation.

  • Page 77: Lldp

    EDS-405A/408A Series User’s Manual Featured Functions LLDP Defined by IEEE 802.11AB, LLDP is an OSI Layer 2 Protocol that standardizes the methodology of self-identity advertisement. It allows each networking device, e.g. a Moxa managed switch, to periodically inform its neighbors about its self-information and configurations. As a result, all of the devices would have knowledge about each other;...

  • Page 78: Using The Monitor

    EDS-405A/408A Series User’s Manual Featured Functions LLDP Table Port: The port number that connects to the neighbor device. Neighbor ID: A unique entity which identifies a neighbor device; this is typically the MAC address. Neighbor Port: The port number of the neighbor device. Neighbor Port Description: A textual description of the neighbor device’s interface.

  • Page 79: Monitor By Port

    EDS-405A/408A Series User’s Manual Featured Functions Monitor by Port Access the Monitor by Port function by selecting ALL 10/100M Ports or Porti, in which i= 1, 2, … 8, etc., from the left pull-down list. The Porti options are identical to the Monitor by System function discussed previously, in that users can view graphs that show Total Packets, TX Packets, RX Packets, or Error Packets activity, but in this case, only for an individual port.

  • Page 80: Using Event Log

    EDS-405A/408A Series User’s Manual Featured Functions Using Event Log This field shows how many times the EDS has been rebooted or cold Bootup started. The date is updated based on how the current date is set in the “Basic Date Setting”...

  • Page 81: Using Syslog

    EDS-405A/408A Series User’s Manual Featured Functions Using Syslog This function provides the event logs for the syslog server. The function supports 3 configurable syslog servers and syslog server UDP port numbers. When an event occurs, the event will be sent as a syslog UDP packet to the specified syslog servers.

  • Page 82: Eds Configurator Gui

    EDS Configurator GUI Chapter 4 EDS Configurator is a comprehensive Windows-based GUI that is used to configure and maintain multiple Moxa EtherDevice Switches. A suite of useful utilities is available to help you locate EDS switches attached to the same LAN as the PC host (regardless of whether or not you know the IP addresses of the switches), connect to an EDs whose IP address is known, modify the network configurations of one or multiple EDS switches, and update the firmware of one or more EDS switches.

  • Page 83: Starting Eds Configurator

    EDS-405A/408A Series User’s Manual EDS Configurator GUI Starting EDS Configurator To start EDS Configurator, locate and then run the executable file edscfgui.exe. NOTE You may download the EDS Configurator software from Moxa’s website at www.moxa.com. For example, if the file was placed on the Windows desktop, it should appear as follows. Double click the icon to run the program.

  • Page 84: Search By Ip Address

    EDS-405A/408A Series User’s Manual EDS Configurator GUI Once the search is complete, the Configurator window will display a list of all switches that were located. Search by IP address This utility is used to search for EDSs one at a time. Note that the search is conducted by IP address, so you should be able to locate any EDS that is properly connected to your LAN, WAN, or even the Internet.

  • Page 85: Upgrade Firmware

    EDS-405A/408A Series User’s Manual EDS Configurator GUI Upgrade Firmware Keep your Moxa EtherDevice Switch up to date with the latest firmware from Moxa. Do the following to upgrade the firmware: 1. Download the updated firmware (*.rom) file from the Moxa website (www.moxa.com). 2.

  • Page 86: Modify Ip Address

    EDS-405A/408A Series User’s Manual EDS Configurator GUI Modify IP Address You may use the Modify IP Address function to reconfigure the EDS’s network settings. Start by clicking the Modify IP address icon , or by selecting Modify IP address from the Configuration menu.

  • Page 87: Export Configuration

    EDS-405A/408A Series User’s Manual EDS Configurator GUI Export Configuration The Export Configuration utility is used to save the entire configuration of a particular EDS to a text file. Do the following to export a configuration: 1. Highlight the switch (from the Server list in the Configurator window’s left pane), and then click the Export toolbar icon or select Export Configuration from the Configuration menu.

  • Page 88: Import Configuration

    EDS-405A/408A Series User’s Manual EDS Configurator GUI Import Configuration The Import Configuration function is used to import an entire configuration from a text file to the EDS. This utility can be used to transfer the configuration from one EDS to another, by first using the Export Configuration function (described in the previous section) to save a switch configuration to a file, and then using the Import Configuration function.

  • Page 89: Unlock Server

    EDS-405A/408A Series User’s Manual EDS Configurator GUI 4. Click Yes in response to the following warning message to accept the new settings. Unlock Server The Unlock Server function is used to open a password protected switch so that the user can modify its configuration, import/export a configuration, etc.
  • Page 90 EDS-405A/408A Series User’s Manual EDS Configurator GUI Perform the following steps to unlock a locked EDS (i.e., a Moxa EtherDevice Switch with Status “Locked” or “Locked Fixed”). Highlight the server (from the Moxa EtherDevice Switch list in the Configurator window’s left pane), and then click the Unlock toolbar icon , or select Unlock from the Configuration menu.

  • Page 91: Mib Groups

    MIB Groups Appendix A Moxa EtherDevice Switches come with built-in SNMP (Simple Network Management Protocol) agent software that supports cold/warm start trap, line up/down trap, and RFC 1213 MIB-II. The standard MIB groups that the EDS-405A/408A support are: MIB II.1 – System Group MIB II.2 –...

  • Page 92: Appendix B Modbus/Tcp Map

    Modbus/TCP Map Appendix B EDS-405A Modbus information v1.0 Read Only Registers (Support Function Code 4) 1 Word = 2Bytes Address Data Type Description System Information 0x0000 1 word Vendor ID = 0x1393 0x0001 1 word Unit ID (Ethernet = 1) 0x0002 1 word Product Code = 0x0002...

  • Page 93: Port Information

    EDS-405A/408A Series User’s Manual Specifications 0x0055 3 word Ethernet MAC Address Ex: MAC = 00-01-02-03-04-05 Word 0 Hi byte = 0x00 Word 0 Lo byte = 0x01 Word 1 Hi byte = 0x02 Word 1 Lo byte = 0x03 Word 2 Hi byte = 0x04 Word 2 Lo byte = 0x05 0x0058 1 word...

  • Page 94: Specifications

    EDS-405A/408A Series User’s Manual Specifications 0x2000~0x2023 2 word Port 1~5 Tx Packets Ex: port 1 Tx Packets = 0x44332211 Word 0 = 4433 Word 1 = 2211 0x2100~0x2123 2 word Port 1~5 Rx Packets Ex: port 1 Rx Packets = 0x44332211 Word 0 = 4433 Word 1 = 2211 0x2200~0x2223...
  • Page 95 EDS-405A/408A Series User’s Manual Specifications 0x3303 1 word TR Coupling 0x0000:Off 0x0001:On 0xFFFF:Turbo Ring Not Enable 0x3304 1 word TR Coupling Port status 0x0000:Port Disabled 0x0001:Not Coupling Port 0x0002:Link Down 0x0003:Blocked 0x0005:Forwarding 0xFFFF:Turbo Ring Not Enable 0x3305 1 word TR Coupling Control Port status 0x0000:Port Disabled 0x0001:Not Coupling Port 0x0002:Link Down...
  • Page 96 EDS-405A/408A Series User’s Manual Specifications 0x3602 1 word TR2 Ring 1 1st Port status 0x0000:Port Disabled 0x0001:Not Redundant 0x0002:Link Down 0x0003:Blocked 0x0004:Learning 0x0005:Forwarding 0xFFFF:Turbo Ring V2 Ring 1 Not Enable 0x3603 1 word TR2 Ring 1 2nd Port status 0x0000:Port Disabled 0x0001:Not Redundant 0x0002:Link Down 0x0003:Blocked...
  • Page 97 EDS-405A/408A Series User’s Manual Specifications 0x3700 1 word Turbo Chain Switch Role 0x0000:Head 0x0001:Member 0x0002:Tail 0xFFFF: Turbo Chain Not Enable 0x3701 1 word Turbo Chain 1st Port status 0x0000: Link Down 0x0001: Blocking 0x0002: Blocked 0x0003: Forwarding 0xFFFF:Turbo Ring V2 Ring 2 Not Enable 0x3702 1 word Turbo Chain 2nd Port status...

  • Page 98: Eds-408A Modbus Information V1.0

    EDS-405A/408A Series User’s Manual Specifications EDS-408A Modbus information v1.0 Read Only Registers (Support Function Code 4) 1 Word = 2Bytes Address Data Type Description System Information 0x0000 1 word Vendor ID = 0x1393 0x0001 1 word Unit ID (Ethernet = 1) 0x0002 1 word Product Code = 0x0003...
  • Page 99 EDS-405A/408A Series User’s Manual Specifications 0x005A 1 word Fault LED Status 0x0000:No 0x0001:Yes 0x0082 1 word 0x0000:Off 0x0001:On Port Information 0x1000~0x1011 1 word Port 1~8 Status 0x0000:Link down 0x0001:Link up 0x0002:Disable 0xFFFF:No port 0x1100~0x1111 1 word Port 1~8 Speed 0x0000:10M-Half 0x0001:10M-Full 0x0002:100M-Half 0x0003:100M-Full...
  • Page 100 EDS-405A/408A Series User’s Manual Specifications 0x2300~0x2323 2 word port 1~8 Rx Error Packets Ex: port 1 Rx Error Packets = 0x44332211 Word 0 = 4433 Word 1 = 2211 Redundancy Information 0x3000 1 word Redundancy Protocol 0x0000:None 0x0001:RSTP 0x0002:Turbo Ring 0x0003:Turbo Ring V2 0x0004:Turbo Chain 0x3100...
  • Page 101 EDS-405A/408A Series User’s Manual Specifications 0x3305 1 word TR Coupling Control Port status 0x0000:Port Disabled 0x0001:Not Coupling Port 0x0002:Link Down 0x0003:Blocked 0x0005:Forwarding 0x0006:Inactive 0x0007:Active 0xFFFF:Turbo Ring Not Enable 0x3500 1 word TR2 Coupling Mode 0x0000:None 0x0001:Dual Homing 0x0002:Coupling Backup 0x0003:Coupling Primary 0xFFFF:Turbo Ring V2 Not Enable 0x3501 1 word...
  • Page 102 EDS-405A/408A Series User’s Manual Specifications 0x3603 1 word TR2 Ring 1 2nd Port status 0x0000:Port Disabled 0x0001:Not Redundant 0x0002:Link Down 0x0003:Blocked 0x0004:Learning 0x0005:Forwarding 0xFFFF:Turbo Ring V2 Ring 1 Not Enable 0x3680 1 word TR2 Ring 2 status 0x0000:Healthy 0x0001:Break 0xFFFF:Turbo Ring V2 Ring 2 Not Enable 0x3681 1 word TR2 Ring 2 Master/Slave...
  • Page 103 EDS-405A/408A Series User’s Manual Specifications 0x3701 1 word Turbo Chain 1st Port status 0x0000: Link Down 0x0001: Blocking 0x0002: Blocked 0x0003: Forwarding 0xFFFF:Turbo Ring V2 Ring 2 Not Enable 0x3702 1 word Turbo Chain 2nd Port status 0x0000: Link Down 0x0001: Blocking 0x0002: Blocked 0x0003: Forwarding...
