Installing the Device
2.3.1 Mounting the Device on a DIN Rail
Mounting the Device
To mount the device to a DIN rail, do the following:
1.
2.
10
Hook the top teeth of the adapters onto the DIN rail.
1
2
3
Panel/DIN Rail Adapter
1
DIN Rail
2
Screw
3

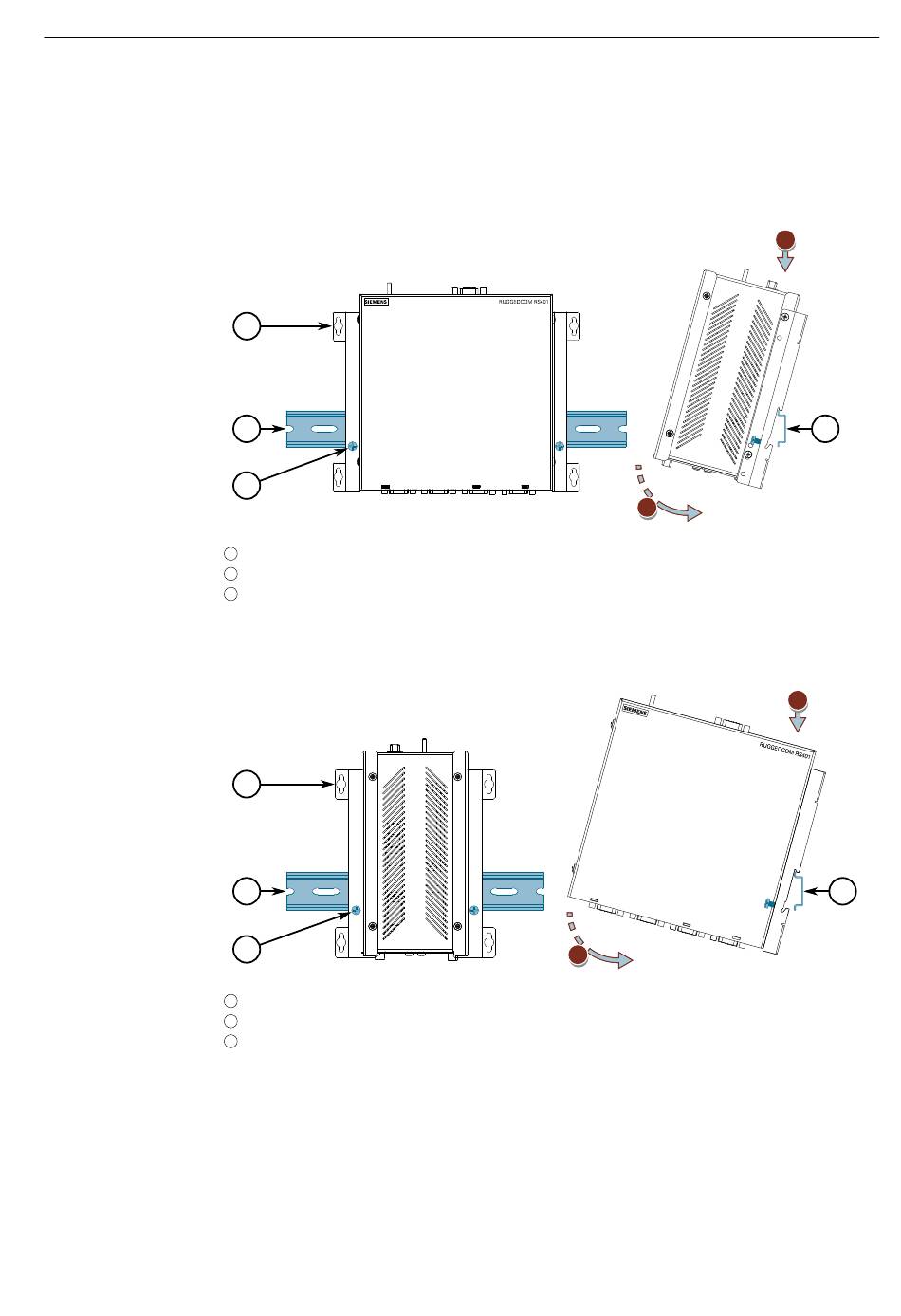

Figure 2.1
Mounting the Device to a DIN Rail (Front Panel Mount Option)
1
2
3
Panel/DIN Rail Adapter
1
DIN Rail
2
Screw
3
Figure 2.2
Mounting the Device to a DIN Rail (Side Panel Mount Option)
Install one of the supplied #8-32 lock screws on either side of the device to se-
cure the adapters to the DIN rails.
2
2
Installation Manual, 01/2020, C79000-G8976-1017-09
1
2
1
2
RUGGEDCOM RS401
