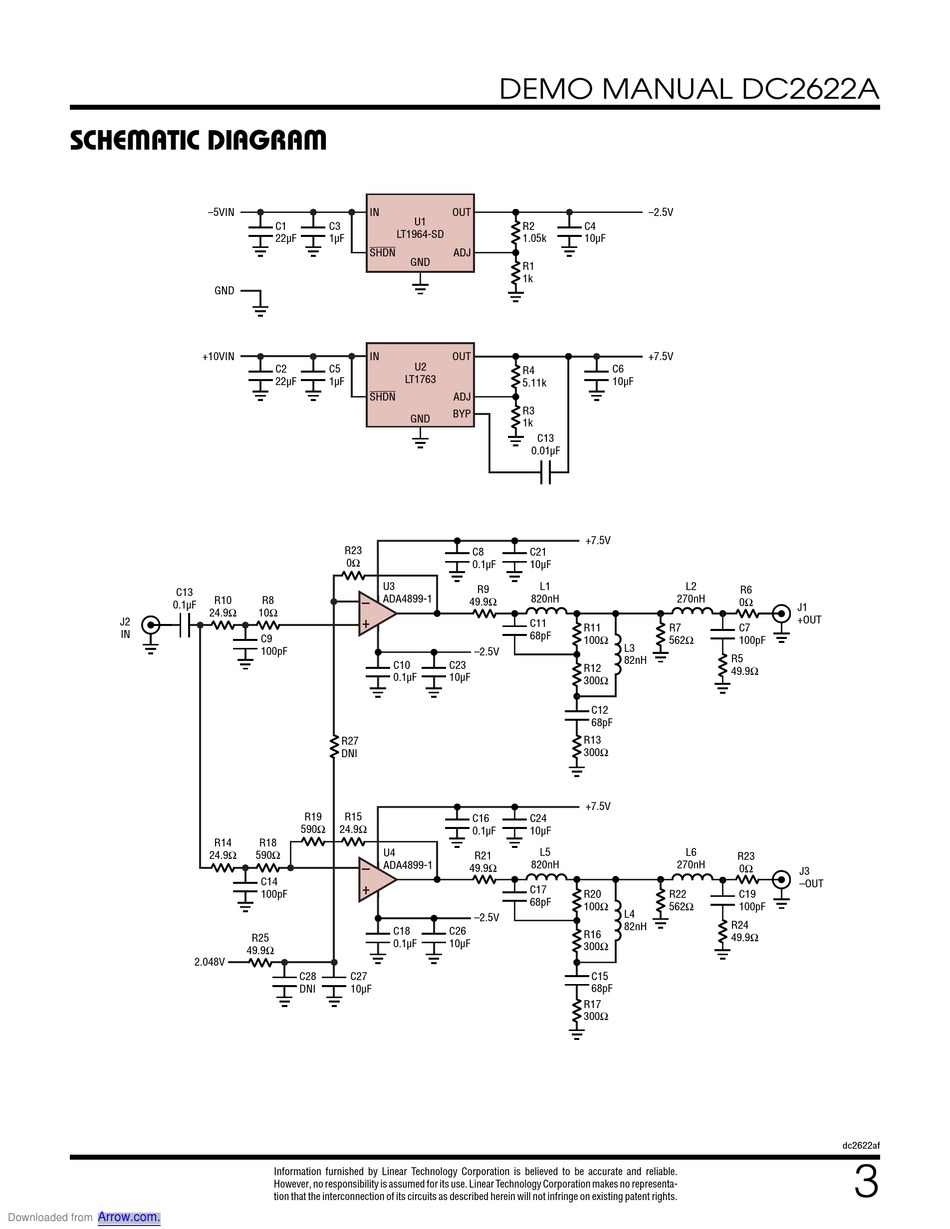

Schematic Diagram - Analog Devices Linear Technology DC2622A Demo Manual

scHematic Diagram

C13
0.1µF
J2
IN
Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from
–5VIN IN
C1 C3
22µF 1µF
SHDN
GND
+10VIN IN
C2 C5
22µF 1µF
SHDN
R23
0
R10 R8
24.9 10
C9
100pF
R27
DNI
R19 R15
590 24.9
R14 R18
24.9 590
C14
100pF
R25
49.9
2.048V
C28 C27
DNI 10µF
Information furnished by Linear Technology Corporation is believed to be accurate and reliable.
However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa-
tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.
DEMO MANUAL DC2622A
OUT
U1
R2
LT1964-SD
1.05k
ADJ
GND
R1
1k
OUT
U2
R4
LT1763
5.11k
ADJ
R3
BYP
GND
1k
C13
0.01µF
C8 C21
0.1µF 10µF
U3 L1
R9
ADA4899-1 820nH
49.9
C11
68pF
–2.5V
C10 C23
0.1µF 10µF
C16 C24
0.1µF 10µF
L5
U4
R21
ADA4899-1 820nH
49.9
C17
68pF
–2.5V
C18 C26
0.1µF 10µF
–2.5V
C4
10µF
+7.5V
C6
10µF
+7.5V
L2
R6
270nH
0
R11 R7 C7
100 562 100pF
L3
R5
82nH
R12
49.9
300
C12
68pF
R13
300
+7.5V
L6
R23
270nH
0
R20 R22 C19
100 562 100pF
L4
R24
82nH
R16
49.9
300
C15
68pF
R17
300
J1
+OUT
J3
–OUT
dc2622af
3
