DESCRIPTION
Demonstration circuit 2665B-B features the
µModule
regulator, a high performance, high effi-
®
ciency step-down regulator. The LTM4638 is a complete
DC/DC point-of-load regulator in a thermally enhanced
6.25mm × 6.25mm × 5.02mm BGA package. The
LTM4638 has an operating input voltage range of 3.1V to
20V and provides an output current up to 15A. The output
voltage is programmable from 0.6V to 5.5V and can be
remotely sensed. The stacked inductor design improves
thermal dissipation and significantly reduces the package

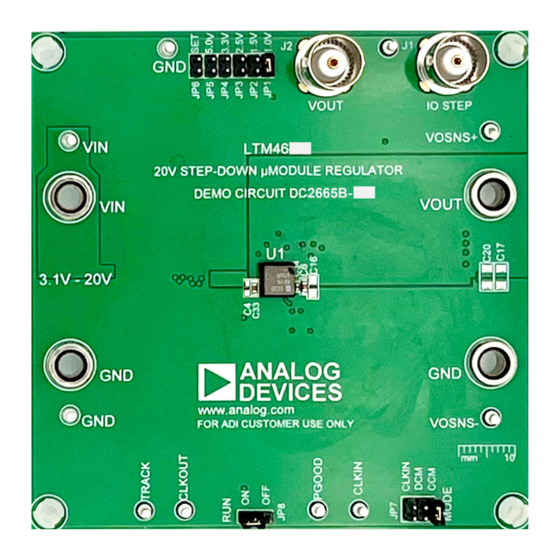

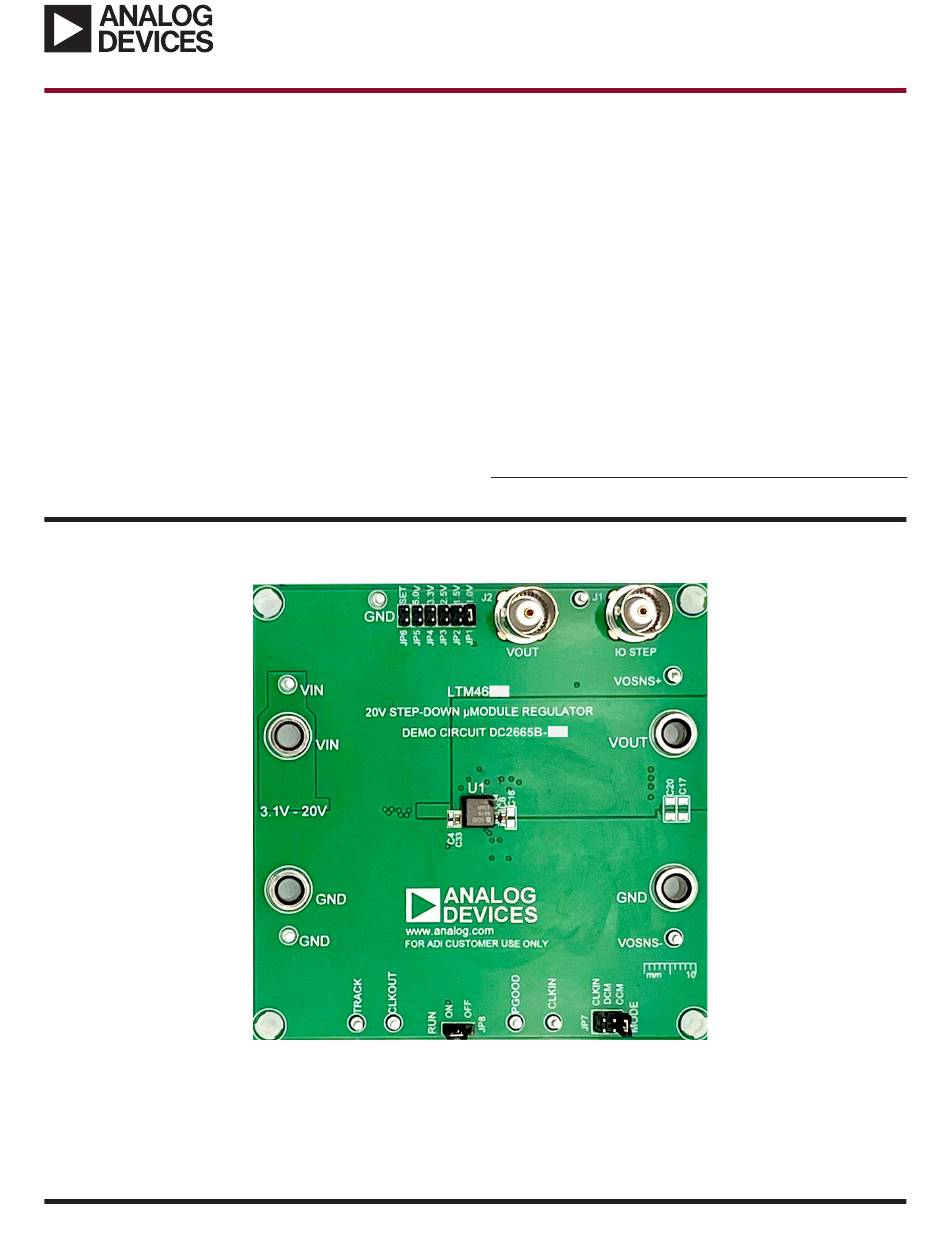

BOARD PHOTO
LTM
4638
®
Part marking is either ink mark or laser mark
DEMO MANUAL DC2665B-B
20V
IN
µModule Regulator
area. Output voltage tracking is available through the
TRACK/ SS pin for supply rail sequencing. External clock
synchronization is available through the SYNC/MODE pin.
For high efficiency at low load currents, select discon-
tinuous current mode (DCM) operation using the MODE
jumper (JP7) in less noise sensitive applications. Refer
to the LTM4638 data sheet in conjunction with this demo
manual for working on or modifying the DC2665B-B.
Design files for this circuit board are available.
