DESCRIPTION
Demonstration circuit 2685B-KIT is an Ethernet Alliance
Gen 2 PoE certified 4-port IEEE 802.3bt power sourcing
equipment (PSE) composed of a DC2684A-B (daugh-
ter card) and DC2683A (motherboard). The DC2685B-
KIT is used for evaluation of the
PSE chipset. Up to four IEEE 802.3af, IEEE 802.3at, or
IEEE 802.3bt powered devices (PDs) can be connected

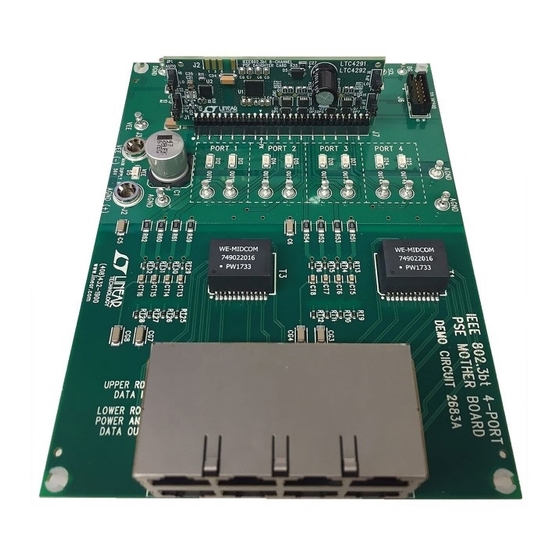

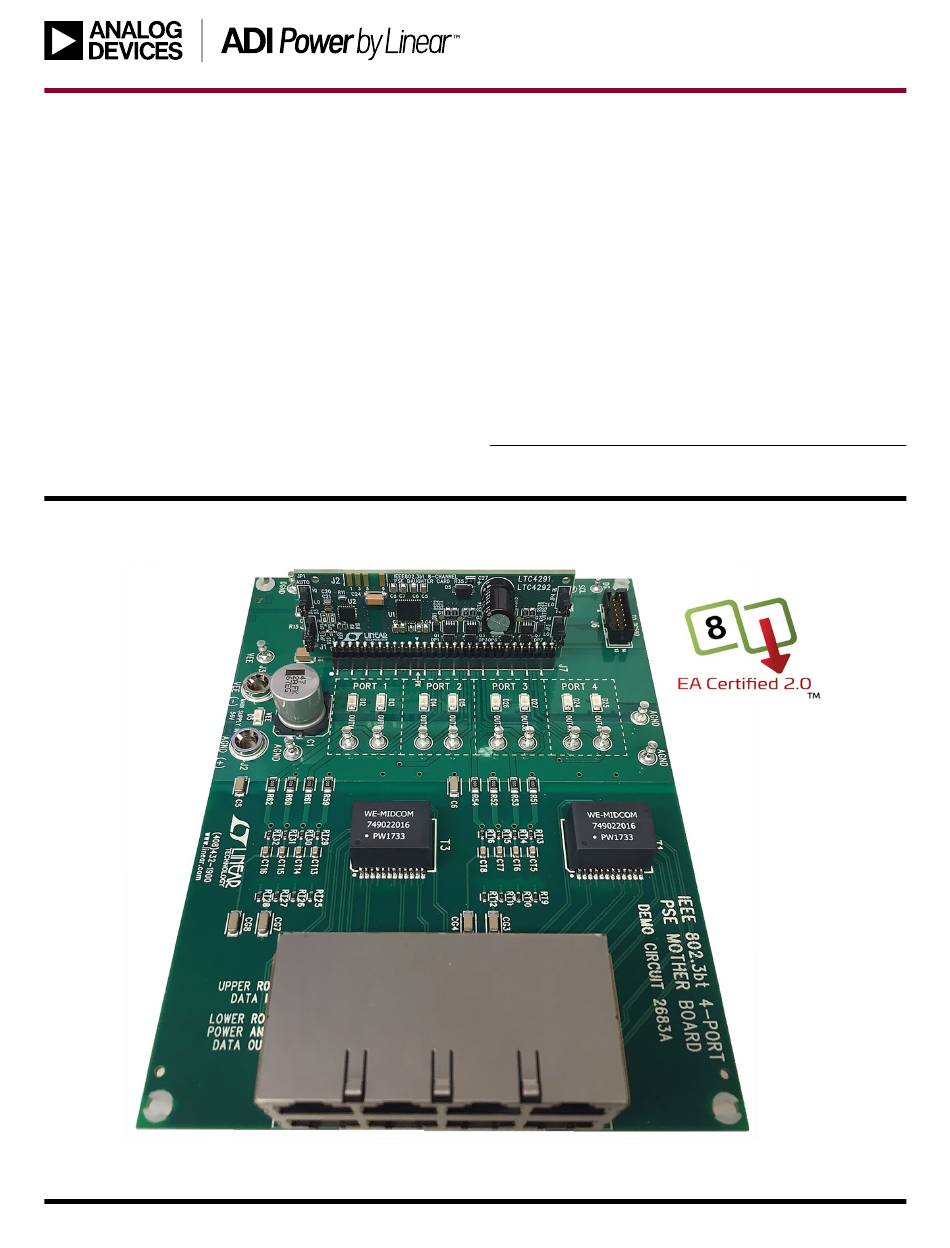

BOARD PHOTO
LTC
4291-1/LTC4292
®
DEMO MANUAL
DC2683A and DC2684A-B
LTC4291-1/LTC4292
4-Port IEEE 802.3bt PSE
and powered from this system using a single power sup-
ply. A DC590 is connected to the DC2685B-KITfor I
interfacing with QuikEval™.
This demonstration manual provides a quick start proce-
dure, a DC2684A-B daughter card overview, a DC2683A
mother board overview, schematics, and layout printouts.
Design files for this circuit board are available.
All registered trademarks and trademarks are the property of their respective owners.
DC2685B-KIT
2
Rev. B
1
C
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Analog Devices DC2685B-KIT
Summary of Contents for Analog Devices DC2685B-KIT
- Page 1 DEMO MANUAL DC2685B-KIT DC2683A and DC2684A-B LTC4291-1/LTC4292 4-Port IEEE 802.3bt PSE DESCRIPTION Demonstration circuit 2685B-KIT is an Ethernet Alliance and powered from this system using a single power sup- Gen 2 PoE certified 4-port IEEE 802.3bt power sourcing ply. A DC590 is connected to the DC2685B-KITfor I equipment (PSE) composed of a DC2684A-B (daugh- interfacing with QuikEval™.
-
Page 2: Quick Start Procedure
Figure 2. Pin 12 is polarized to assist with the alignment. Carefully push the daughter card 9. Connect up to four PDs to the DC2685B-KIT RJ45 straight down until the male and female 30-pin con- connector J1, bottom row ports 1-4 as shown in nectors are flush with each other. - Page 3 DEMO MANUAL DC2685B-KIT QUICK START PROCEDURE Figure 1. DC2684A-B Jumpers: AUTO, 4PV#, PM0 and PM1 Figure 2. Inserting the DC2684A-B Daughter Card Into J7 of the DC2683A Motherboard Rev. B...
- Page 4 DEMO MANUAL DC2685B-KIT QUICK START PROCEDURE Table 1. DC2684A-B AUTO and 4PV# Jumper Settings Table 3. DC2685B-KIT Power Supply Voltage Range per PSE Type JUMPER SETTING OPERATION IEEE TYPE Supply Voltage Range AUTO (JP1) Host Control Required Type 3 51V to 57V...
- Page 5 DEMO MANUAL DC2685B-KIT DEMONSTRATION CIRCUIT 2684A-B DAUGHTER CARD Demonstration circuit 2684A-B is an IEEE 802.3bt 8-chan- LTC4292 data sheet. The DC2684A-B demonstrates nel PSE daughter card that features the LTC4291-1/ proper LTC4291-1/LTC4292 board layout on a compact LTC4292 chipset. This daughter card mates with a 4-Port, daughter card approximately the height and width of a 2 4-Pair PoE motherboard for use in IEEE 802.3bt Type 3 or...
- Page 6 DEMO MANUAL DC2685B-KIT DEMONSTRATION CIRCUIT 2684A-B DAUGHTER CARD I/O LED Indicators The DC2684A-B features two LEDs to indicate the states SDAOUT SDAOUT of the LTC4291-1/LTC4292 general purpose input/output SDAIN SDAIN pins GP0 and GP1. These pins are configured as inputs or outputs via I C.
-
Page 7: Demonstration Circuit 2683A Mother Board
3.3V supply across V Pushbutton switch SW2, when pressed, pulls the mas- DGND. If the DC2685B-KIT is connected in parallel for kable shutdown input (MSD) pin of the daughter card multi-quad port evaluation, verify all ground connections logic low. - Page 8 DEMO MANUAL DC2685B-KIT SUPPLEMENTARY Table 5. DC590 Jumper Selection. Refer to the DC590 Demo Manual for Further Details. JUMPER SETTING OPERATION PROG Microcontroller in-circuit programming header. Do NOT install jumper; make no connections. MODE Do NOT install jumper; make no connections.
- Page 9 DEMO MANUAL DC2685B-KIT DC2684A-B DAUGHTER CARD LAYOUT FILES Figure 7. DC2684A-B Top Silkscreen Figure 8. DC2684A-B Top Layer Rev. B...
- Page 10 DEMO MANUAL DC2685B-KIT DC2684A-B DAUGHTER CARD LAYOUT FILES Figure 9. DC2684A-B Inner Layer 2 Figure 10. DC2684A-B Inner Layer 3 Rev. B...
- Page 11 DEMO MANUAL DC2685B-KIT DC2684A-B DAUGHTER CARD LAYOUT FILES Figure 11. DC2684A-B Bottom Layer Figure 12. DC2684A-B Bottom Silkscreen Rev. B...
-
Page 12: Dc2683A Mother Board Layout Files
DEMO MANUAL DC2685B-KIT DC2683A MOTHER BOARD LAYOUT FILES Figure 13. DC2683A Top Silkscreen Rev. B... - Page 13 DEMO MANUAL DC2685B-KIT DC2683A MOTHER BOARD LAYOUT FILES Figure 14. DC2683A Top Layer Rev. B...
- Page 14 DEMO MANUAL DC2685B-KIT DC2683A MOTHER BOARD LAYOUT FILES Figure 15. DC2683A Inner Layer 2 Rev. B...
- Page 15 DEMO MANUAL DC2685B-KIT DC2683A MOTHER BOARD LAYOUT FILES Figure 16. DC2683A Inner Layer 3 Rev. B...
- Page 16 DEMO MANUAL DC2685B-KIT DC2683A MOTHER BOARD LAYOUT FILES Figure 17. DC2683A Bottom Layer Rev. B...
- Page 17 DEMO MANUAL DC2685B-KIT DC2683A MOTHER BOARD LAYOUT FILES Figure 18. DC2683A Bottom Silkscreen Rev. B...
- Page 18 DEMO MANUAL DC2685B-KIT DC2684A-B DAUGHTER CARD SCHEMATIC Rev. B...
- Page 19 DEMO MANUAL DC2685B-KIT DC2684A-B DAUGHTER CARD SCHEMATIC Rev. B...
- Page 20 DEMO MANUAL DC2685B-KIT DC2683A MOTHERBOARD SCHEMATIC Rev. B...
-
Page 21: Dc2683A Motherboard Schematic
