ASSEMBLY AND INSTALLATION
S.R.
SMITH
INSTALLATION AND USE ON RESIDENTIAL INGROUND SWIMMING
POOLS ONLY. THE TYPHOON IS NEVER TO BE INSTALLED AND USED
ON ABOVEGROUND POOLS, ONGROUND POOLS, HOUSEBOATS, BOAT
DOCKS, FLOATING DOCKS OR PLATFORMS OR OTHER BODIES OF
WATER SUCH AS LAKES, PONDS, RIVERS, ETC.
SRS AUSTRALIA, PTY LTD
12 Enterprise St
Richlands QLD 4077
Australia
Phone 07 3812 2283 • Fax 07 3812 1187
www.srsmith.com/au
06-714

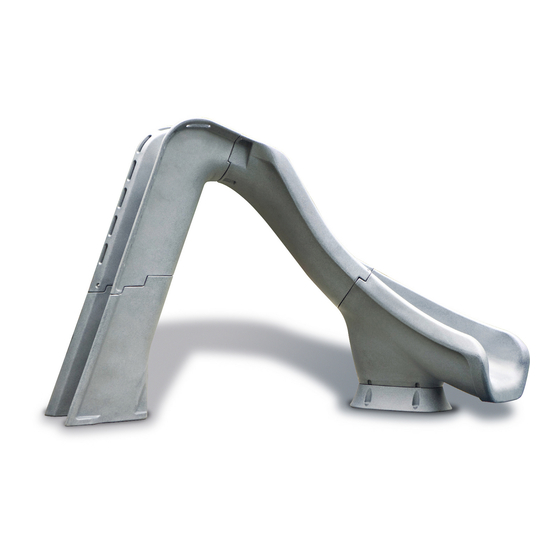

TYPHOON®
INSTRUCTIONS
TYPHOON
SLIDES
ARE
MANUFACTURED
S.R. SMITH, LLC
CORPORATE HEADQUARTERS
P.O. Box 400 • 1017 S.W. Berg Parkway
Canby, Oregon 97013
Phone (503) 266 2231 • Fax (503) 266 4334
www.srsmith.com
FOR
USA
DEC18
Advertisement
Table of Contents
Related Manuals for S.R.Smith Typhoon
Summary of Contents for S.R.Smith Typhoon
- Page 1 SLIDES MANUFACTURED INSTALLATION AND USE ON RESIDENTIAL INGROUND SWIMMING POOLS ONLY. THE TYPHOON IS NEVER TO BE INSTALLED AND USED ON ABOVEGROUND POOLS, ONGROUND POOLS, HOUSEBOATS, BOAT DOCKS, FLOATING DOCKS OR PLATFORMS OR OTHER BODIES OF WATER SUCH AS LAKES, PONDS, RIVERS, ETC.
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ............................3 INSTALLED TYPHOON STRUCTURAL & INSTALLATION CHECKLIST ........... 4 MAINTENANCE INSTRUCTIONS ........................ 4 ASSEMBLED TYPHOON LAYOUT ......................5 PARTS LIST ..............................6 ASSEMBLY INSTRUCTIONS ........................7 Tools Required ............................7 Gasket Installation ............................. 7 Typhoon Assembly ............................ 9 ON-DECK MOUNTING INSTRUCTIONS .................... -
Page 3: Introduction
DANGER – FAILURE TO FOLLOW THESE WARNINGS, INSTRUCTIONS, AND THE OWNER’S MANUAL MAY RESULT IN SERIOUS INJURY OR DEATH. THE TYPHOON IS DESIGNED AND MANUFACTURED FOR INSTALLATION AND USE ON INGROUND SWIMMING POOLS ONLY. DO NOT INSTALL THIS SLIDE ON ABOVE GROUND POOLS, HOUSEBOATS, BOAT DOCKS, FLOATING DOCKS OR PLATFORMS, OR OTHER BODIES OF WATER SUCH AS LAKES, PONDS, RIVERS, ETC. -
Page 4: Installed Typhoon Structural & Installation Checklist
Observe the position of the exit of the slide as shown in FIGURE M, FIGURE N, and FIGURE P on pages 16 and 17. MAINTENANCE INSTRUCTIONS When hosing down the deck, hose your Typhoon to wash away any dust, dirt or other debris, which may have accumulated. Be sure that all connections are secure. Tighten hardware if necessary. -
Page 5: Assembled Typhoon Layout
ASSEMBLED TYPHOON LAYOUT FIGURE A... -
Page 6: Parts List
PARTS LIST ITEM NO. PART NO. DESCRIPTION QTY. KIT A KIT A 69-209-123 TYPHOON HARDWARE CARTON 1 ea. 3/8” HEX NUT ● 5-139 10 ea. 3/8” LOCK WASHER ● 5-151 10 ea. ● 05-14-115 1/2" LOCK WASHER 8 ea. 3/8” FLAT WASHER ●... -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Tools Required 1. Ratchet handle 9. Power drill 2. 9/16” deep socket 10. PVC pipe primer & glue 3. 9/16” wrench 11. Anti-seize 4. 3/4" socket or wrench 12. Saw to cut PVC pipe 5. 7/32” allen wrench 13. -
Page 9: Typhoon Assembly
Typhoon Assembly Before getting started: • To prevent damage to the parts during assembly, it is recommended that cardboard or some other protective barrier is laid down on the ground where the slide is to be assembled. • Verify that the gasket material is affixed to the slide parts as shown on page 6 •... - Page 10 Notes: It may take more than one person to perform this step. Verify that the gasket material is properly attached before assembling the parts. Insert the threaded studs into each of the threaded inserts as shown in FIGURE D. The studs should be screwed in by hand until they reach the bottom of the insert.
- Page 11 FIGURE F Before getting started, be sure that the joint surfaces of the top runway and ladder sections are clean and dry. Unroll the gasket material and hold so that that length of the gasket is centered on the center of the ladder joint. With the exposed adhesive side of the gasket facing the ladder joint surface, apply the gasket starting at the center of the part, working outward to the sides.
- Page 12 Align the threaded studs sticking out of the top ladder section with the holes in the upper runway section. Attach the runway to the ladder using the hardware shown in FIGURE H. Tighten until the lock washer is fully compressed. Notes: It may take more than one person to perform this step.
- Page 13 Attach the pipe clamps to the ladder as shown in FIGURE J, detail B. Use PVC primer and glue to permanently assemble the parts together as in step 11. Glue the top end of the PVC hose into the fitting in the ladder. Use the pipe straps to fasten the ball valve into the ladder recess as shown in FIGURE K, detail A.
-
Page 14: On-Deck Mounting Instructions
ON-DECK MOUNTING INSTRUCTIONS Place the assembled slide on the deck relative to the pool wall. Ensure that the exit flume clears any coping. Slide may be angled slightly providing all dimensions are maintained as noted in the Manufacturer’s Placement Instructions noted in the following section. With the slide in its proper location, center punch or otherwise mark through the (8) mounting holes at the bottom of the ladder and pedestal so that a visible mark is apparent on the concrete. -
Page 15: Slide Plumbing Instructions
SLIDE PLUMBING INSTRUCTIONS The Typhoon is designed for a water supply line of 1” pipe. Plumb from pool return line with a 1” PVC pipe “stubbed up” at the deck positioned at the base of the ladder. Refer to FIGURE A on page 5. -
Page 16: Manufacturer's Placement Instructions
OPERATION AND TO REDUCE THE RISK OF SERIOUS INJURY. 1. The critical dimensions for placement of the Typhoon are as shown in FIGURE M and FIGURE N. A. The slide exit runway surface shall not exceed 20” (508 mm) above the water surface as shown in FIGURE M. - Page 17 TABLE 1 Board Minimum Clearance Area “C” Dimension “W” Dimension Pool Type 14’ -6” (4420 mm) 5’ -0” (1524 mm) 14’ -6” (4420 mm) 6’ -0” (1829 mm) 16’ -6” (5029 mm) 6’ -0” (1829 mm) 18’ -6” (5639 mm) 7’...
