- Page 1 Owner’s Manual 1017 SW Berg Parkway Canby, OR 97013 Phone: 503.266.2231 Toll Free: 800.824.4387 www.srsmith.com 700-1000 - B June - 2010...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAL/200-0000/EU - PAL Hi-Lo/250-0000/EU - PAL Spa/275-0000/EU INTRODUCTION............................3 PRODUCT OVERVIEW ..........................4 PAL PRODUCT COMPONENTS........................5 UNPACKING & ASSEMBLY INSTRUCTIONS..................... 8 UNPACKING AND ASSEMBLY PROCEDURE FOR THE PAL..............9 USING THE PAL ..………………………………………………………………………………………………... 11 POSITIONING............................. 11 TRANSFERRING ...………………………………………………………………………………………………..12 BATTERY CHARGING .......................... -
Page 3: Introduction
Intended Lift User: All of S.R. Smith’s lifts have been designed to assist anyone who has problems entering or exiting a swimming pool or spa - the only restriction is that the User does not exceed the weight limit of the product (300 lb/136 kg). -
Page 4: Product Overview
24 volt rechargeable battery operated by a screw-driven electronic actuator that provides the lifting and turning motions. S.R. Smith has designed the safest possible lift system, following all instructions in the owner’s manual, and all product labels is necessary to achieve safe, reliable and proper performance of the lift and avoid injury. -
Page 5: Pal Product Components

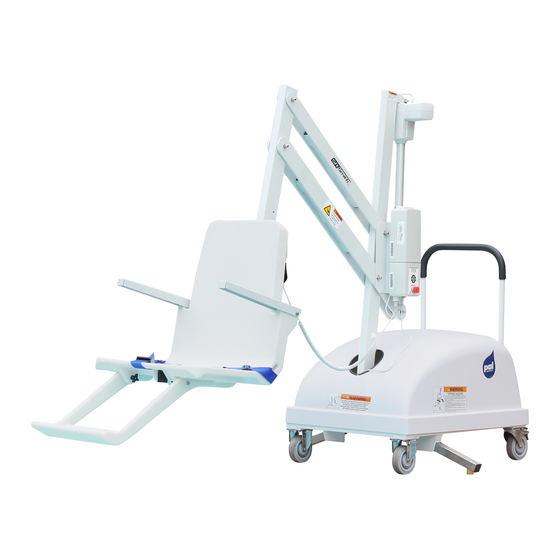

PAL – Portable Aquatic Lift - PRODUCT COMPONENTS ACTUATOR ACTUATOR BUSHING BUSHING NYLOCK BOLT BUSHING Component Description The Base Assembly is made up of several components as described below: Wheels - Front wheels are rigid and back wheels swivel to facilitate movement. Both back wheels can and must be locked to prevent movement during transfer to and from the pool. - Page 6 They can be rotated up out of the way during transfer. If the lift did not include the optional arm rests (US only) they can be purchased separately and easily installed at a later date. This lift seat assembly is designed to be used exclusively with S.R. Smith aquatic access lifts. 700-1000 - B...
- Page 7 Counter Weights - The weights for the lift are located in the bottom of the pallet. Remove the restraining planks with a screwdriver to gain access. Each weight is approximately 30 lb/13.6 kg. Use caution when lifting. There are finger holds on each weight to help handling.
-
Page 8: Unpacking & Assembly Instructions
READ THESE INSTRUCTIONS IN THEIR ENTIRETY BEFORE UNCRATING PAL Prior to opening pallet, inspect external condition for any visible damage. It is important that any damage be noted on the Bill of Lading. Immediately notify S.R. Smith or your Authorized Reseller of missing or damaged parts. -
Page 9: Unpacking And Assembly Procedure For The Pal
Unpacking & Assembly Procedure for the PAL – Portable Aquatic Lift 1. Cut open enclosure bag at base of unit - carefully remove plastic. 2. Cut internal bands – remove mast assembly, seat assembly and housing. Lift assembly by mast and seat arm. - Page 10 14. Insert actuator cable (green stripe with the “o” ring) into connector #1 on the Control Box. Make sure plug is secure. 15. Insert 24v motor cable (red stripe) into connector #2 on the Control Box. Make sure plug is secure. 16.
-
Page 11: Using The Pal
USING THE PAL – Portable Aquatic Lift Obey all User Instructions listed in the Owners Manual whenever using lift. Obey all Caution, Warning, Operating Instruction(s) and Labels located on the lift whenever using. It is the responsibility of the lift Owner to ensure that the correct safety procedures have been put in place and a risk assessment carried out. -
Page 12: Transferring
TRANSFERRING Once the unit is positioned for use with both stabilizing arms fully extended and both rear wheels locked - use the following procedure to transfer to the seat and into the water. Only persons healthy enough for water activities should use the PAL. Users should consult with their physician to determine if water activities are appropriate for the User: Keep fingers and hands clear of lift arms during use. -
Page 13: Battery Charging
BATTERY CHARGING Connect the charging unit to the port located on the contact side of the battery. It is not necessary to fully discharge the battery prior to charging. Battery should be charged daily and cannot be overcharged. It takes two to four hours to fully charge depending upon battery usage. Do not allow battery to fully discharge, as it will shorten battery life. -
Page 14: Standard Accessories/Optional Accessories
STANDARD ACCESSORIES/OPTIONAL ACCESSORIES The following items are included with all pool lift models: Console/Battery Cover - Protects battery and control unit from exposure to moisture. • Seat Belt Assembly - Nylon water-resistant belt for added security. • Battery/Charger – 24-volt rechargeable battery. •... -
Page 15: Maintenance & Cleansing
MAINTENANCE and CLEANSING Minimal maintenance will prolong the life of your lift. Keep all electronic components clean and dry. Keep the Console/Battery Cover installed at all times to prevent moisture from collecting on the Control Box and battery. Excessive moisture collection can affect battery and lift performance and could lead to battery failure and/or the lift failing to operate. -
Page 16: Long Term Storage
WetDek™ (1 year) and PoolSonix™ (2 years). The original retail purchaser must follow the procedure set forth below when submitting a warranty claim. S.R. Smith will repair or replace, at its option, the product, and return it to the owner freight prepaid. - Page 17 EXEMPLARY DAMAGES OR LOST PROFITS FROM ANY BREACH OF THIS LIMITED WARRANTY OR OTHERWISE. No representative of S.R. Smith, nor any of its agents, distributors or dealers has any authority to alter in any manner the terms of this warranty and S.R. Smith is not responsible for any undertaking, representation or warranty made by any other person beyond the warranty expressly set forth in this warranty.
-
Page 18: Batteries And Battery Disposal
2. Remove the serial # sticker from the product. a) S.R. Smith provides a serial # for every board, stand, slide and rail product we produce. The sticker with the serial number for our boards, stands and slides is a silver, 1" long rectangular sticker found on the side or bottom of the item. -
Page 19: Specifications
SPECIFICATIONS PAL/200-0000/EU - PAL Hi-Lo/250-0000/EU - PAL Spa/275-0000/EU 1. Dimensions/Capacity Overall Height 66”/167.6cm Base Dimensions Height 22.5”/55.1cm, length. 37.5”/95.2cm, width 27.5”/69.8cm Overall Length with Footrest 106”/269.2cm (fully extended) Overall Length without Footrest 91”/231.1cm (fully extended) Overall Length in Stored position 61”/154.9cm (fully raised) Total Weight 945 lb/429 kg... -
Page 20: Materials And Finish
7. Materials and Finish Frame Powder Coated Stainless Steel Handle Powder Coated Aluminum Housing Vacuum Formed ABS Plastic Casters Front Ball Bearing, Stainless Steel, 5”/12.7cm Fixed, Polyurethane Tread Rear Ball Bearing, Stainless Steel, 5”/12.7cm Total Lock Swivel, Polyurethane Tread Arms Powder Coated Aluminum Mast Powder Coated, Stainless Steel...
