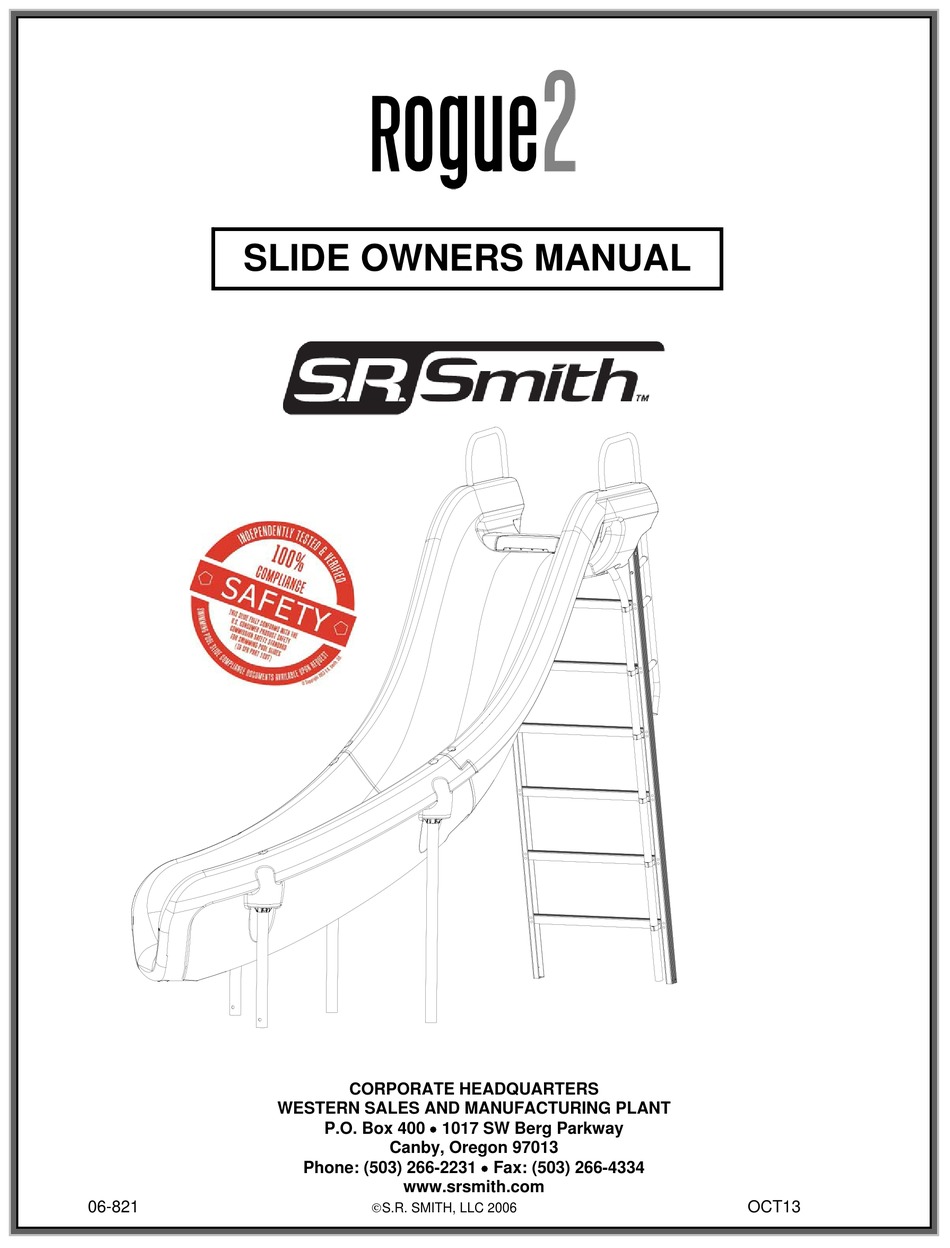

SLIDE OWNERS MANUAL
CORPORATE HEADQUARTERS
WESTERN SALES AND MANUFACTURING PLANT
P.O. Box 400  1017 SW Berg Parkway
Canby, Oregon 97013
Phone: (503) 266-2231  Fax: (503) 266-4334
www.srsmith.com
S.R. SMITH, LLC 2006
06-821
OCT13

Advertisement

loading

Related Manuals for S.R.Smith rogue2

Summary of Contents for S.R.Smith rogue2

  • Page 1 SLIDE OWNERS MANUAL CORPORATE HEADQUARTERS WESTERN SALES AND MANUFACTURING PLANT P.O. Box 400  1017 SW Berg Parkway Canby, Oregon 97013 Phone: (503) 266-2231  Fax: (503) 266-4334 www.srsmith.com S.R. SMITH, LLC 2006 06-821 OCT13...

  • Page 2: Table Of Contents

    Page #   SLIDE WARNING AND SAFETY SUMMARY ......................3   INTENDED USE INSTRUCTIONS ........................... 4   INSTALLED ROGUE2 STRUCTURAL & INSTALLATION CHECKLIST ............5   DAILY/WEEKLY MAINTENANCE OF THE ROGUE2 ..................5   APPLICABLE STANDARDS AND CODES ......................5  ...

  • Page 3: Slide Warning And Safety Summary

    SLIDE WARNING AND SAFETY SUMMARY DANGER – FAILURE TO FOLLOW THESE WARNINGS, INSTRUCTIONS AND THE OWNER’S MANUAL MAY RESULT IN SEROUS INJURY OR DEATH DO NOT SLIDE HEAD FIRST HEAD FIRST SLIDES ARE STRICTLY PROHIBITED TO REDUCE THE POSSIBILITY OF INJURY, IT IS NECESSARY THAT THE USER KNOW THAT THE CHIEF DANGER OF HEAD FIRST SLIDING IS SERIOUS SPINAL INJURY.

  • Page 4: Intended Use Instructions

    INTENDED USE INSTRUCTIONS THE ROGUE2 SLIDE IS DESIGNED AND MANUFACTURED FOR INSTALLATION AND USE ON INGROUND SWIMMING POOLS ONLY. DO NOT INSTALL THE ROGUE2 SLIDE ON ABOVE GROUND POOLS, HOUSEBOATS, BOAT DOCKS, FLOATING DOCKS OR PLATFORMS, OR OTHER BODIES OF WATER SUCH AS LAKES, PONDS, RIVERS, ETC.

  • Page 5: Installed Rogue2 Structural & Installation Checklist

    6. Read, understand and enforce all safety and use instructions on the slide. DAILY/WEEKLY MAINTENANCE OF THE ROGUE2 1. When hosing down the deck, hose your Rogue2 to wash away any dust, dirt or other debris, which may have accumulated.

  • Page 6: Drawings

    PROPER ASSEMBLY, INSTALLATION, USE, AND SUPERVISION IS ESSENTIAL FOR PROPER OPERATION AND TO REDUCE THE RISK OF SERIOUS INJURY OR DEATH. 1. The critical dimensions for placement of the Rogue2 slide are as shown in Figures 2 and 3. A. The slide exit runway surface shall not exceed twenty inches (20”) above the water surface as shown in Figure 2.
  • Page 7 2. A minimum clearance area in front of the slide shall be maintained at all times as follows: The minimum clearance distance on either side of the extended centerline of the slide runway shall not be less than three feet six inches (3’-6”) at a point no less than two feet six inches (2’-6”) from the exit lip of the slide and extending a distance of thirteen feet six inches (13’-6”) in front of the slide as shown...

  • Page 8: Cleaning Instructions

    CHART 1 BOARD MINIMUM CLEARANCE AREA POOL TYPE “C” DIMENSION “W” DIMENSION 14’-6” 5’-0” 14’-6” 6’-0” 16’-6” 6’-0” 18’-6” 7’-6” 21’-0” 7’-6” See Article 5 contained in ANSI/APSP/ICC-5 2011 STANDARD FOR RESIDENTIAL INGROUND SWIMMING POOLS and refer to FIGURE 3 and Table 1 for Minimum Water Envelope Dimensions AB, BC and Width at Point C.
  • Page 9 White Cap ® Ajax ® Liquid Serious Equipment, Serious Fun! Product Name: Rogue2 Serial Number: ___________________ (located on label attached to slide) Purchase Date:____________________ To register your slide and find information on the full line of S.R. Smith deck equipment please visit www.srsmith.com.
