Trojan POWER RACK User Manual page 12

STEP 5
2
11
18
16
STEP 6
2
17
19
17
3
19
19
19
17
17
19
1R
13
13
ASSEMBLY STEPS
2
11
18
16
15
17
2
15
17
15
17
17
15
17
17
19
19
17
19
17
1L
13
13
12

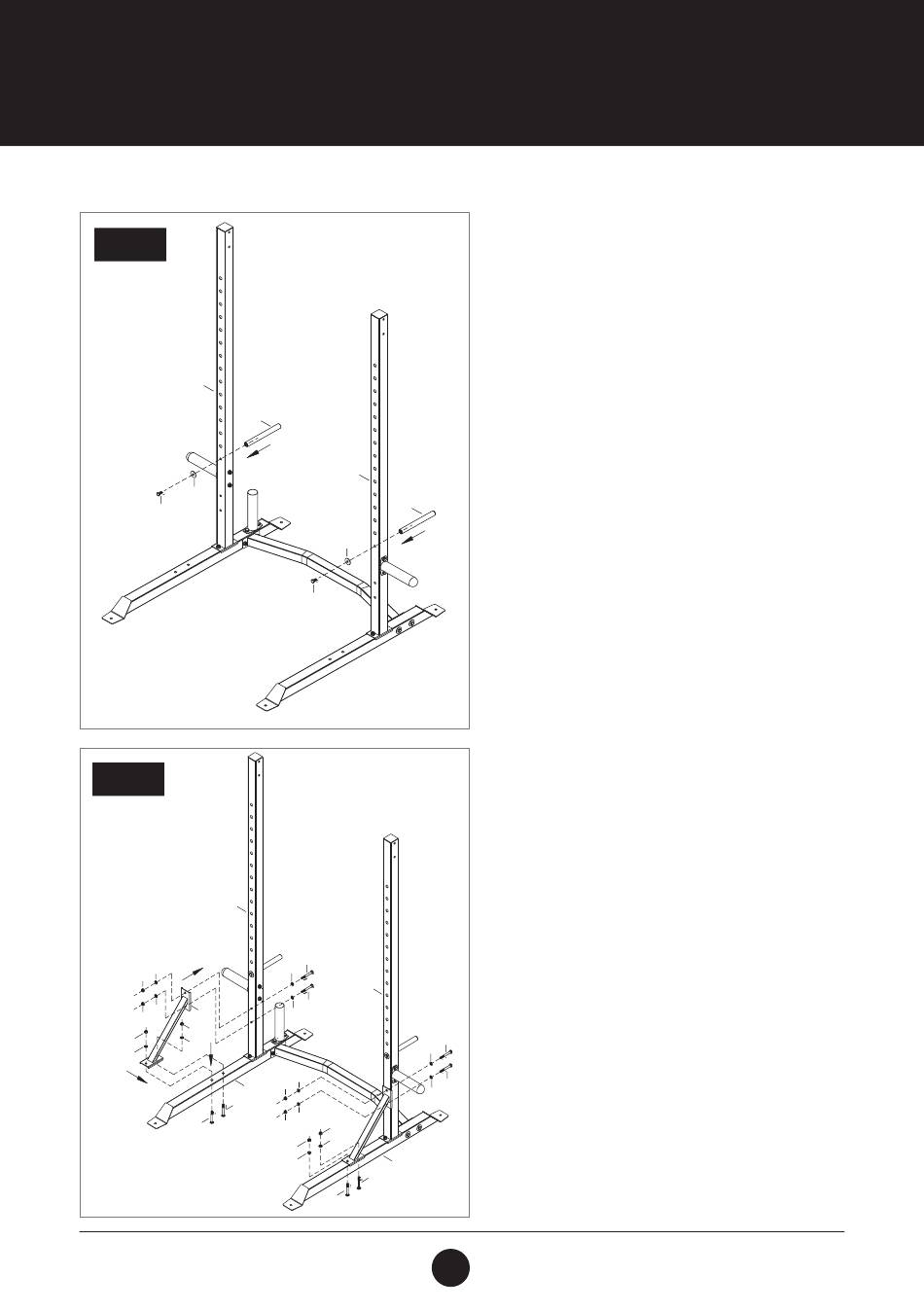

STEP 5:
Pass 2 x (11) through the lower hole of the
respective (2) and align it with the hole; use 1 x (16)
and 1 x (18) to secure on each sides.
STEP 6:
Place 2 x (3) support beams at the corresponding
positions of (2) and (1L) / (2) and (1R) as shown to the
left and align the hole positions. Use 2 x (13), 6 x (17),
2 x (15), and 4 x (19) to secure.
