Assembly Steps - Trojan POWER RACK User Manual

1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the supplied parts and hardware for the assembly.
• Before assembling please check whether all the required parts have been supplied as per the exploded
drawing on the opposite page.
STEP 1
STEP 2
15
18
15
18
17
19
1R

ASSEMBLY STEPS

16
17
16
17
12
1R
17
19
19
17
6
19
17
18
15
18
15
1L
10

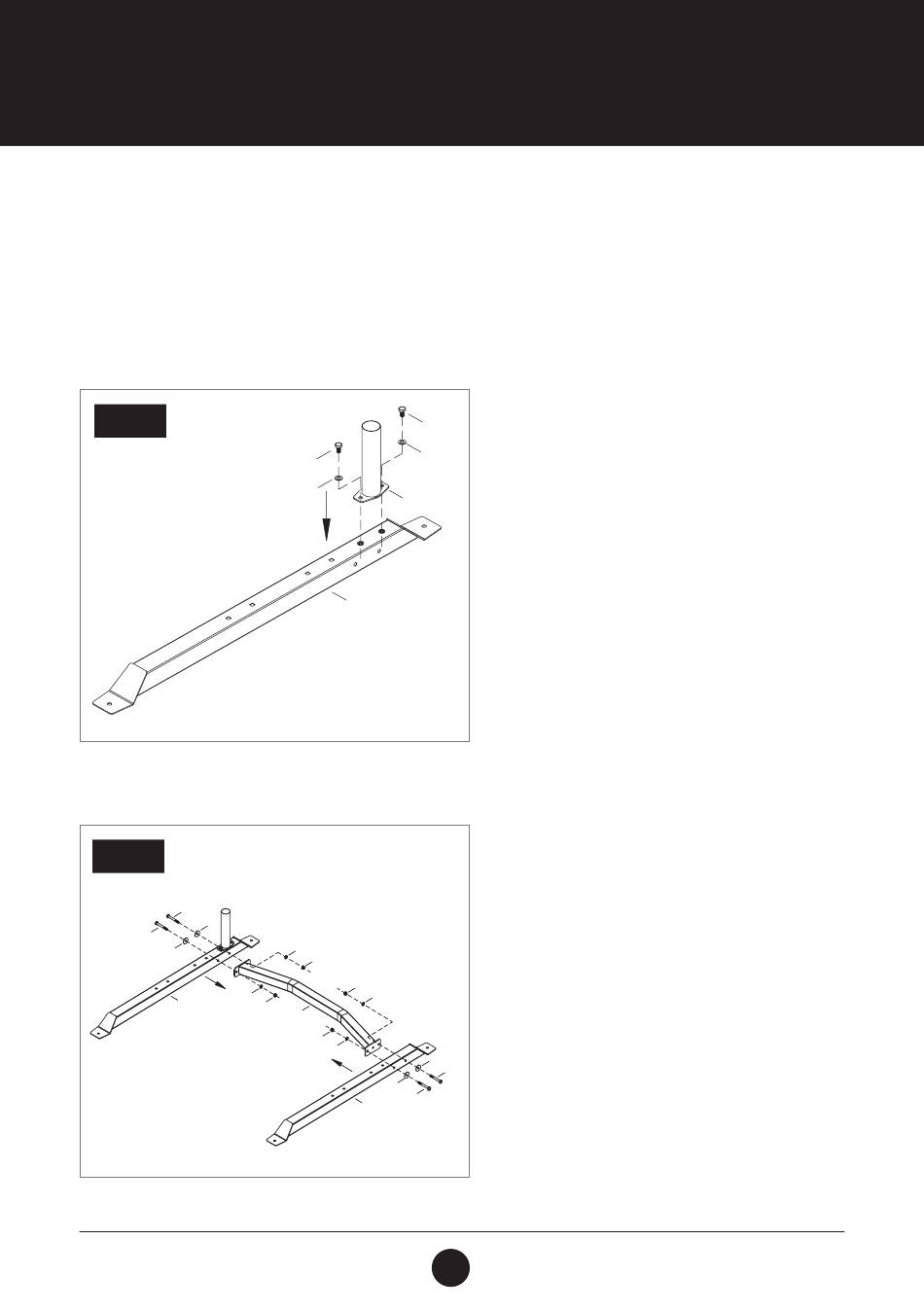

STEP 1:
Place Right Tube (1R) flat on the ground and place
(12) on top of it, aligning the holes. Use 2 x Bolt (16)
and 2 x Washer (17) to secure it.
STEP 2:
Next place Lower Connection Tube (6) in the middle
of the Left Tube (1L) and the Right Tube (1R) and align
the hole positions with 2 x (15) Bolts and 2 x (18)
Washers on each side. Use 2 x Washer (17) and
2 x Nut (19) to secure bolts.
PRACK
