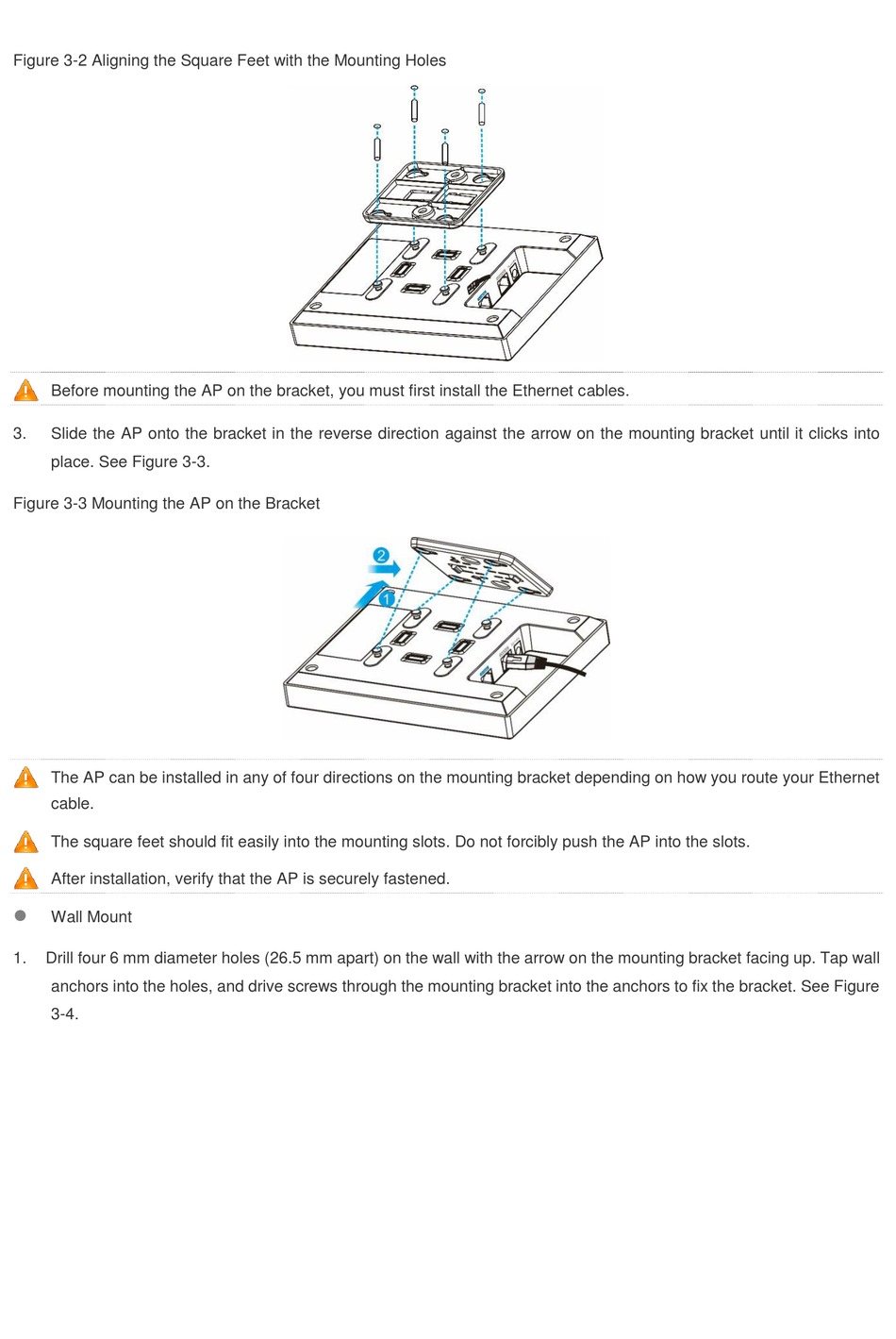

Ruijie RG-AP820-L(V2) Series Hardware Installation And Reference Manual page 14

Figure 3-2 Aligning the Square Feet with the Mounting Holes
Before mounting the AP on the bracket, you must first install the Ethernet cables.
3. Slide the AP onto the bracket in the reverse direction against the arrow on the mounting bracket until it clicks into
place. See Figure 3-3.
Figure 3-3 Mounting the AP on the Bracket
The AP can be installed in any of four directions on the mounting bracket depending on how you route your Ethernet
cable.
The square feet should fit easily into the mounting slots. Do not forcibly push the AP into the slots.
After installation, verify that the AP is securely fastened.

Wall Mount
1. Drill four 6 mm diameter holes (26.5 mm apart) on the wall with the arrow on the mounting bracket facing up. Tap wall
anchors into the holes, and drive screws through the mounting bracket into the anchors to fix the bracket. See Figure
3-4.
·
