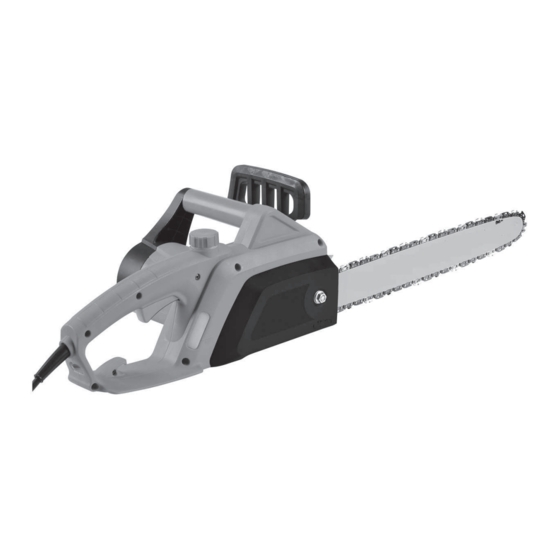

Fieldmann FZP 2000-E Manual

Fieldmann FZP 2000-E Manual

Hide thumbs Also See for FZP 2000-E:

Advertisement

Quick Links

EN
FZP 2000-E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FZP 2000-E and is the answer not in the manual?

Questions and answers

Summary of Contents for Fieldmann FZP 2000-E

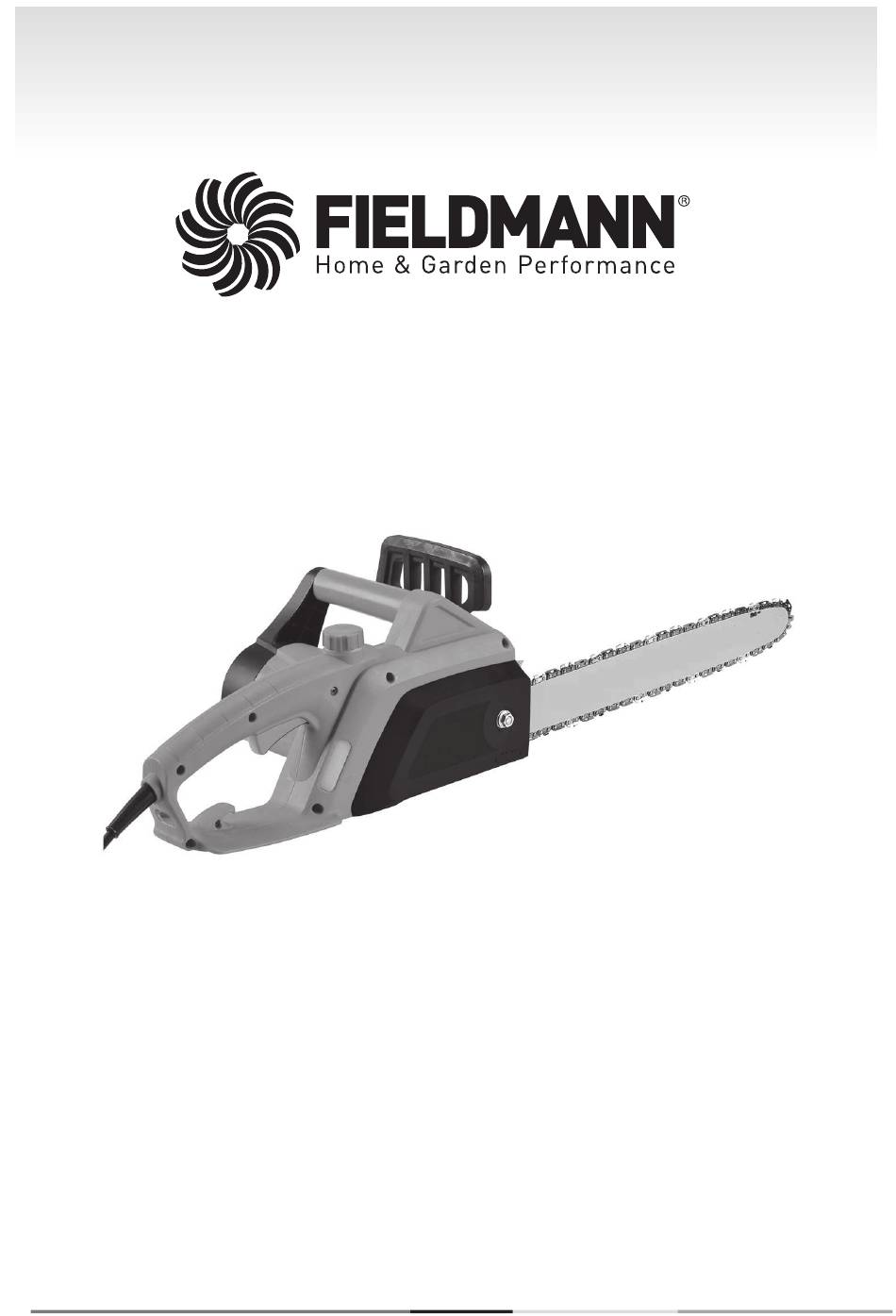

  • Page 1 FZP 2000-E...
  • Page 2: Table Of Contents

    Table of Contents Chain saw USER'S MANUAL TABLE OF CONTENTS 1. GENERAL SAFETY INSTRUCTIONS .......................... 4 2. SYMBOLS ................................... 5 3. SAFETY INSTRUCTIONS ..............................7 4. DESCRIPTION OF THE CHAIN SAW ........................9 5. INSTALLING THE GUIDE BAR AND CHAIN .......................10 6.
  • Page 3: General Safety Instructions

    Following the instructions in the included user's manual is a prerequisite for the proper use of the power tool. The user's manual also contains operating, maintenance and repair instructions. The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual. FZP 2000-E...
  • Page 4: Symbols

    Symbols 2. SYMBOLS Do not expose the power tool to rain. Before using the power tool, carefully read the user's manual. In the event that the power cord is damaged, immediately disconnect it from the power supply. When working, always use a safety helmet, safety glasses and ear protection.
  • Page 5 DANGER! Do not use the power tool if there are children, other persons or animals in your vicinity. While working use protective gloves. Use solid insulating work footwear. Use hearing protection. Use work gloves. Be careful of falling branches. FZP 2000-E...
  • Page 6: Safety Instructions

    Safety Instructions 3. SAFETY INSTRUCTIONS ATTENTION! Acquaint yourself with all warnings and safety instructions and with operation instructions for the power tool. ATTENTION! Not adhering to warnings or safety instructions may result in injury by electrical shock, a fi re and/or serious injury.
  • Page 7 Using power tools for tasks other than for which they are designed may lead to dangerous situations. FZP 2000-E...
  • Page 8: Description Of The Chain Saw

    Safety instructions | Description of the chain saw Service Have your power tool repaired by a qualifi ed person that will use original spare parts. In this manner, the same level of safety will be ensured as before the repair of the power tool. Storage only move or store the power tool with the protective cover attached carefully clean and perform appropriate maintenance before storing the power tool...
  • Page 9: Installing The Guide Bar And Chain

    6. FILLING THE CHAIN SAW OIL TANK ATTENTION! A new chain requires a certain running-in period, which is usually 5 minutes. The lubrication of the chain is very important during this phase. After this running-in period, check the chain tension and readjust if necessary. FZP 2000-E...
  • Page 10: Operating The Chain Saw

    Filling the chain saw oil tank | Operating the chain saw The oil tank on the supplied chain saw is empty. Fill this oil tank with oil prior to fi rst use of this chain saw. Only use oil specifi ed for total-loss lubrication Screw off the oil tank cap (fi...
  • Page 11: Chain Brake

    3 to 4 mm). Firmly tighten the guide bar fastening nut (fi g. 1, point 8). ATTENTION! Do not tension the chain excessively. Excessive tension of a warm chain may result in excessively tension when it cools down. FZP 2000-E...
  • Page 12: Using The Chain Saw

    Using the chain saw | Cutting 10. USING THE CHAIN SAW Before starting any kind of work, thoroughly acquaint yourself with the sections describing the safety instructions for the operation of the chain saw. We recommend that you acquire experience by practising on waste wood.
  • Page 13 In part "A" make a cut from below to a third of the log and then complete the cut from above. In part "B" make a cut from above to a third of the log and then complete the cut from below. FZP 2000-E...
  • Page 14: Cleaning And Maintenance

    Cutting | Cleaning and maintenance Removing a fallen tree First fi nd out to which side the branch is bent. Then make the initial cut from the side of the bend and then complete the cut from the opposite side. ATTENTION! A bent branch may spring up.
  • Page 15: Sharpening The Saw Chain

    Place the fi le guide at the required angle (mark A, see fi gure). Check that the mark is at 30° on the fi le guide aligned with the centre of the guide bar. This will ensure that you will fi le at an angle of 30°. FZP 2000-E...
  • Page 16: Replacing The Saw Chain

    Sharpening the saw chain | Replacing the saw chain File the tooth in the direction from inside out (in direction B, see fi gure) until it is sharp. File only in this direction. Note: Two to three passes of the fi le should be suffi cient to sharpen the tooth. Filing the depth gauge As a result of sharpening the teeth on the chain, the depth gauge tolerance is reduced.
  • Page 17: Storage

    Wipe the body of the chain saw with a cloth. When cleaning, use a soft cloth dipped in a soap solution. Store the chain saw • In higher shelves or in locked areas out of children's reach • in a dry location FZP 2000-E...
  • Page 18: Technical Specifications

    Technical specifications | Disposal 16. TECHNICAL SPECIFICATIONS Power input 1800 W Voltage/frequency 230 V - 240 V / 50 Hz Chain pitch 3/8“ Guiding groove width 1.3 mm Number of chain links 52 links Length of the guide bar 35 cm File diameter 4 mm Cutting speed...
  • Page 19 Notes FZP 2000-E...
