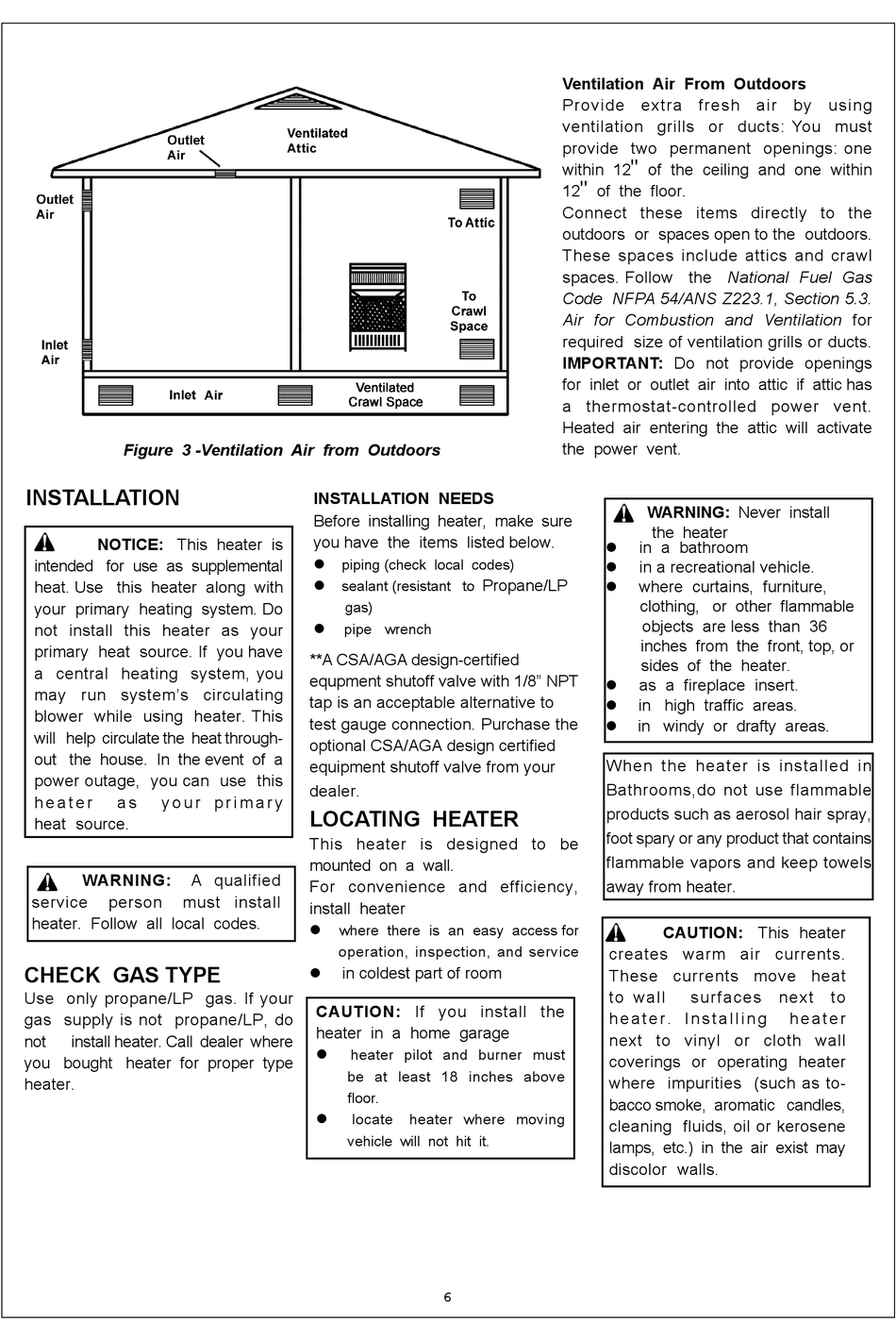

Figure 3 -Ventilation Air from Outdoors
INSTALLATION
NOTICE: This heater is
intended for use as supplemental
heat. Use this heater along with
your primary heating system. Do
not install this heater as your
primary heat source. If you have
a central heating system, you
may run system's circulating
blower while using heater. This
will help circulate the heat through-
out the house. In the event of a
power outage, you can use this
h e a t e r
a s
y o u r p r i m a r y
heat source.
WARNING:
A qualified
service
person
must install
heater. Follow all local codes.
CHECK GAS TYPE
Use only propane/LP gas. If your
gas supply is not propane/LP, do
not
install heater. Call dealer where
you bought heater for proper type
heater.
INSTALLATION NEEDS
Before installing heater, make sure
you have the items listed below.
l
piping (check local codes)
l
sealant (resistant to
gas)
l
pipe wrench
**A CSA/AGA design-certified
equpment shutoff valve with 1/8" NPT
tap is an acceptable alternative to
test gauge connection. Purchase the
optional CSA/AGA design certified
equipment shutoff valve from your
dealer.
LOCATING HEATER
This heater is designed to be
mounted on a wall.
For convenience and efficiency,
install heater
l
where there is an easy access for
operation, inspection, and service
l
in coldest part of room
CAUTION: If you install the
heater in a home garage
l
heater pilot and burner must
be at least 18 inches above
floor.
l
locate
heater where moving
vehicle will not hit it.
6
Ventilation Air From Outdoors
Provide extra fresh air by using
ventilation grills or ducts: You must
provide two permanent openings: one
"
within 12
of the ceiling and one within
"
12
of the floor.
Connect these items directly to the
outdoors or spaces open to the outdoors.
These spaces include attics and crawl
spaces. Follow the National Fuel Gas
Code NFPA 54/ANS Z223.1, Section 5.3.
Air for Combustion and Ventilation for
required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings
for inlet or outlet air into attic if attic has
a thermostat-controlled power vent.
Heated air entering the attic will activate
the power vent.
WARNING: Never install
l
in a bathroom
l
in a recreational vehicle.
Propane/LP
l
where curtains, furniture,
clothing, or other flammable
objects are less than 36
inches from the front, top, or
sides of the heater.
l
as a fireplace insert.
l
in high traffic areas.
l
in windy or drafty areas.
When the heater is installed in
Bathrooms,do not use flammable
products such as aerosol hair spray,
foot spary or any product that contains
flammable vapors and keep towels
away from heater.
creates warm air currents.
These currents move heat
to wall
h e a t e r . I n s t a l l i n g
next to vinyl or cloth wall
coverings or operating heater
where impurities (such as to-
bacco smoke, aromatic candles,
cleaning fluids, oil or kerosene
lamps, etc.) in the air exist may
discolor walls.
the heater
CAUTION: This heater
surfaces
next
h e a t e r
to
