Procom FeatureComforts ML150TPE Owner's Manual

Vent-free gas wall heater infrared
Hide thumbs

Advertisement

Table of Contents

WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INJURY, OR LOSS OF LIFE.
– Do not store or use gasoline or other flammable vapors and liquids in vicinity of
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by a qualified installer, service agency
or the gas supplier.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is
installed. Provisions for adequate combustion and ventilation air must be provided.
Refer to Air For Combustion and Ventilation section on page 7 of this manual.
INSTALLER : DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER'S
FUTURE REFERENCE.
This appliance may be installed in an aftermarket, permanently located manufactured
(mobile) home, where not prohibited by local codes. This appliance is for use with the
type of gas indicated on the rating plate only. This appliance is not convertible for use
with other gases.
Questions, problems, missing parts? Before returning to your retailer, call
our customer service department at 1-866-573-0674, 8:00 a.m - 4:30 p.m.,
EST, Monday - Friday or e-mail customerservice@usaprocom.com
MODEL #ML150TPE MN180TPE ML250TPE MN300TPE
CAUTION - FOR YOUR SAFETY
ITEM #0051266 0051239 0051437 0051434
VENT-FREE GAS WALL HEATER INFRARED
Español p. 29
LS-SM-20TPE-0805

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FeatureComforts ML150TPE and is the answer not in the manual?

Questions and answers

Related Manuals for Procom FeatureComforts ML150TPE

Summary of Contents for Procom FeatureComforts ML150TPE

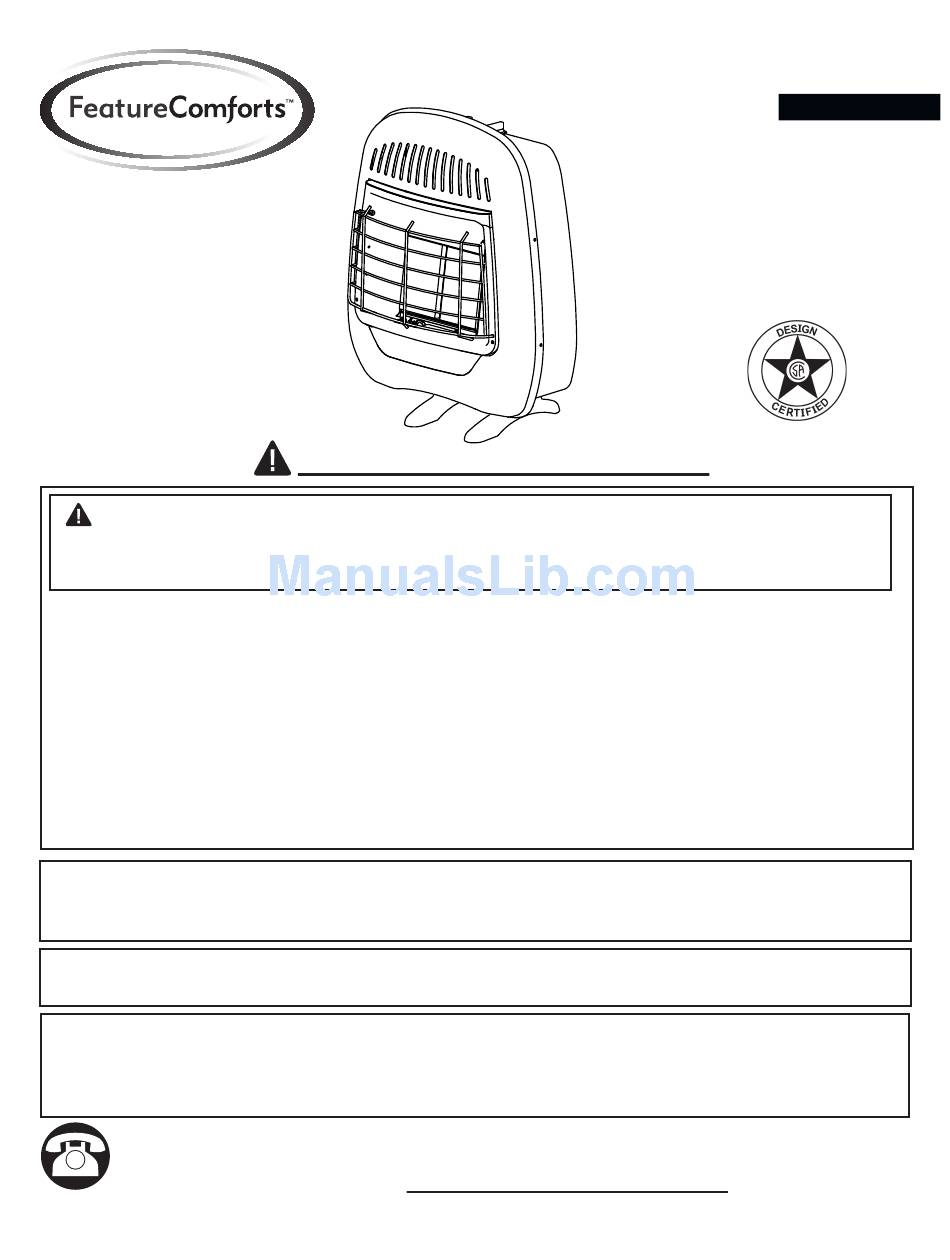

  • Page 1 ITEM #0051266 0051239 0051437 0051434 VENT-FREE GAS WALL HEATER INFRARED MODEL #ML150TPE MN180TPE ML250TPE MN300TPE Español p. 29 CAUTION - FOR YOUR SAFETY WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE.
