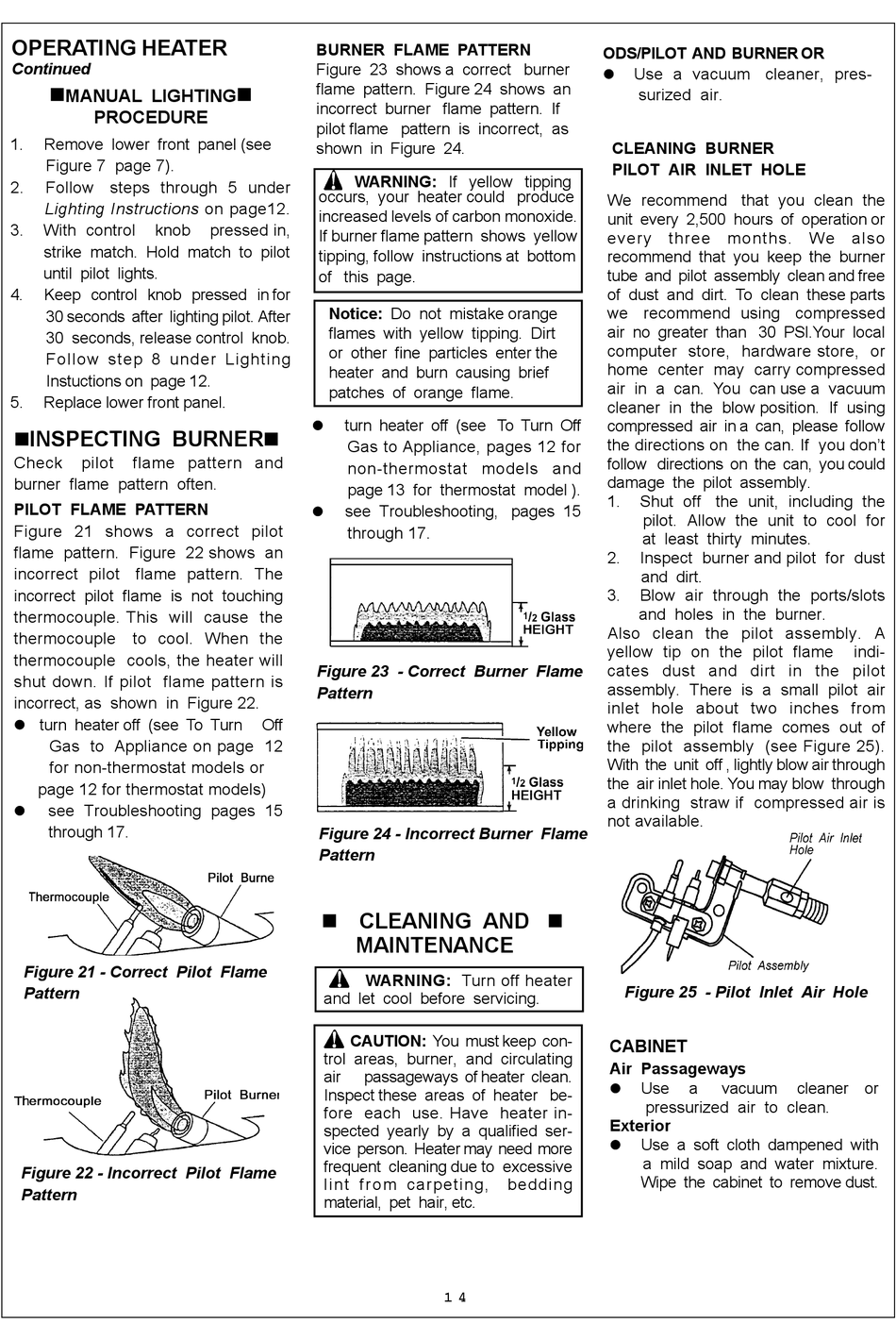

OPERATING HEATER
Continued
n
MANUAL LIGHTING
PROCEDURE
1. Remove lower front panel (see
Figure 7 page 7).
2. Follow steps through 5 under
Lighting Instructions on page12.
3. With control knob
strike match. Hold match to pilot
until pilot lights.
4. Keep control knob pressed in for
30 seconds after lighting pilot. After
30 seconds, release control knob.
Follow step 8 under Lighting
Instuctions on page 12.
5. Replace lower front panel.
nINSPECTING BURNERn
Check pilot flame pattern and
burner flame pattern often.
PILOT FLAME PATTERN
Figure 21 shows a correct pilot
flame pattern. Figure 22 shows an
incorrect pilot flame pattern. The
incorrect pilot flame is not touching
thermocouple. This will cause the
thermocouple to cool. When the
thermocouple cools, the heater will
shut down. If pilot flame pattern is
incorrect, as shown in Figure 22.
l turn heater off (see To Turn
Gas to Appliance on page 12
for non-thermostat models or
page 12 for thermostat models)
l see Troubleshooting pages 15
through 17.
Figure 21 - Correct Pilot Flame
Pattern
Figure 22 - Incorrect Pilot Flame
Pattern
BURNER FLAME PATTERN
Figure 23 shows a correct burner
flame pattern. Figure 24 shows an
n
incorrect burner flame pattern. If
pilot flame pattern is incorrect, as
shown in Figure 24.
WARNING: If yellow tipping
occurs, your heater could produce
increased levels of carbon monoxide.
pressed in,
If burner flame pattern shows yellow
tipping, follow instructions at bottom
of this page.
Notice: Do not mistake orange
flames with yellow tipping. Dirt
or other fine particles enter the
heater and burn causing brief
patches of orange flame.
turn heater off (see To Turn Off
l
Gas to Appliance, pages 12 for
non-thermostat models and
page 13 for thermostat model ).
l see Troubleshooting, pages 15
through 17.
Figure 23 - Correct Burner Flame
Pattern
Off
Figure 24 - Incorrect Burner Flame
Pattern
n CLEANING AND n
MAINTENANCE
WARNING: Turn off heater
and let cool before servicing
CAUTION: You must keep con-
trol areas, burner, and circulating
air passageways of heater clean.
Inspect these areas of heater be-
fore each use. Have heater in-
spected yearly by a qualified ser-
vice person. Heater may need more
frequent cleaning due to excessive
l int from carpeting,
material, pet hair, etc.
ODS/PILOT AND BURNER OR
l
CLEANING BURNER
PILOT AIR INLET HOLE
We recommend that you clean the
unit every 2,500 hours of operation or
every
recommend that you keep the burner
tube and pilot assembly clean and free
of dust and dirt. To clean these parts
we recommend using compressed
air no greater than 30 PSl.Your local
computer store, hardware store, or
home center may carry compressed
air in a can. You can use a vacuum
cleaner in the blow position. If using
compressed air in a can, please follow
the directions on the can. If you don't
follow directions on the can, you could
damage the pilot assembly.
1.
2.
3.
Also clean the pilot assembly. A
yellow tip on the pilot flame
cates dust and dirt in the pilot
assembly. There is a small pilot air
inlet hole about two inches from
where the pilot flame comes out of
the pilot assembly (see Figure 25).
With the unit off , lightly blow air through
the air inlet hole. You may blow through
a drinking straw if compressed air is
not available.
.
CABINET
Air Passageways
l
Exterior
l
bedding
1 4
Use a vacuum cleaner, pres-
surized air.
three months. We also
Shut off the unit, including the
pilot. Allow the unit to cool for
at least thirty minutes.
Inspect burner and pilot for dust
and dirt.
Blow air through the ports/slots
and holes in the burner.
Figure 25 - Pilot Inlet Air Hole
Use a vacuum
pressurized air to clean.
Use a soft cloth dampened with
a mild soap and water mixture.
Wipe the cabinet to remove dust.
indi-
cleaner or
