WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable va-
pors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Questions, problems, missing parts? Before returning to your retailer, call
our customer service department at 1-866-573-0674, 7:30 am - 4:30 pm CST,
Monday through Friday or email service@usaprocom.com

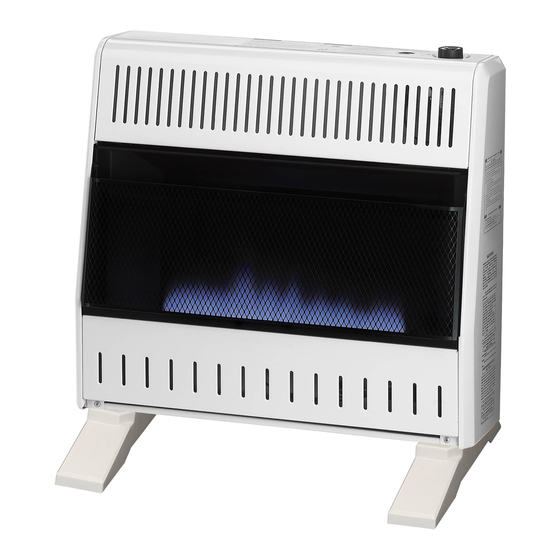

BLUE FLAME
VENT - FREE
GAS SPACE HEATER
OWNER'S OPERATION AND
INSTALLATION MANUAL
MODELS
MN200TBA - B, ML200TBA - B
MN300TBA - B, ML300TBA - B
PFS
F09 - 022
CSA/ANS
Z21.11.2 2019
Unvented
Room Heaters
®
US
Advertisement
Table of Contents
Related Manuals for Procom MN200TBA-B
Summary of Contents for Procom MN200TBA-B
- Page 1 BLUE FLAME VENT - FREE GAS SPACE HEATER OWNER’S OPERATION AND INSTALLATION MANUAL MODELS MN200TBA - B, ML200TBA - B MN300TBA - B, ML300TBA - B ® F09 - 022 CSA/ANS Z21.11.2 2019 Unvented Room Heaters WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety ............3 Operation ..........15 Specifications ..........4 Inspecting Heater ........17 Product Identification ......... 5 Care And Maintenance ......18 Qualified Installing Agency ......5 Troubleshooting ........19 Product Features ........5 Replacement Parts ........22 Local Codes.......... -
Page 3: Safety
SAFETY NATURAL AND PROPANE GAS: Natural IIMPORTANT: Read this owner’s and propane gas are odorless. An odor- manual carefully and completely making agent is added to the gas. The odor before trying to assemble, op- helps you detect a gas leak. However, the erate, or service this heater. -
Page 4: Specifications
100 lbs. capacity. 6. Do not run heater: • Where flammable liquids or vapors are used or stored. • Under dusty conditions. SPECIFICATIONS MODEL MN200TBA-B MN300TBA-B ML200TBA-B ML300TBA-B BTU (available) 10,500/20,000 9,000/20,000 15,000/28,000 14,000/28,000 Ignition Piezo Piezo... -
Page 5: Product Identification
PRODUCT IDENTIFICATION Ignitor Button Control Knob Grill Burners Front Panel Heater Cabinet Figure 1 - Vent-Free Gas Heater QUALIFIED INSTALLING AGENCY Only a qualified agency should install and a) Installing, testing, or replacing gas piping replace gas piping, gas utilization equipment or accessories, and repair and equipment ser- b) Connecting, installing, testing, repairing, vicing. -
Page 6: Local Codes
LOCAL CODES Install and use heater with care. Follow all State of Massachusetts: The installation local codes. In the absence of local codes, must be made by a licensed plumber or use the latest edition of The National Fuel gas fitter in the Commonwealth of Mas- Gas Code, ANSI Z223.1/NFPA 54*. - Page 7 AIR FOR COMBUSTION AND VENTILATION Exhaust fans, fireplaces, clothes dryers and fuel burning appliances draw air from the house to operate. You must provide adequate fresh 12" air for these appliances. This will insure proper venting of vented fuel-burning appliances. Ventilation Grills WARNING: This heater shall Into Adjoining Room,...
-
Page 8: Installation
INSTALLATION NOTICE: This heater is intended CAUTION: This heater cre- for use as supplemental heat. ates warm air currents. These Use this heater along with your currents move heat to wall sur- primary heating system. Do not faces next to heater. Installing install this heater as your pri- heater next to vinyl or cloth wall mary heat source. - Page 9 INSTALLATION LOCATING HEATER FASTENING HEATER TO WALL Mounting Bracket This heater is designed to be mounted on a wall. You can locate heater on the floor, away The mounting bracket is located on back panel from a wall. An optional floor mounting stand of heater (see Figure 6).
- Page 10 INSTALLATION Methods For Attaching Mounting WARNING: Maintain mini- Bracket To Wall mum clearances shown in Figure Use only the last hole on each end of mount- ing bracket to attach bracket to wall. Attach 4, page 8. If you can, provide mounting bracket to a wall only in one of two greater clearances from floor ways:...
- Page 11 INSTALLATION 5. Place mounting bracket onto wall. Line up 5. If installing bottom mounting screws into last hole on each end of bracket with wall hollow or solid wall, install wall anchors. anchors. Follow steps 1 through 4 under Attaching To Wall Anchor Method, page 10.
- Page 12 INSTALLATION CONNECTING TO GAS SUPPLY WARNING: A qualified ser- CAUTION: Avoid damage to vice technician must connect regulator. Hold gas regulator heater to gas supply. Follow all with wrench when connecting local codes. into gas piping and/or fittings. WARNING: This appliance CAUTION: Use pipe joint requires a 3/8"...
- Page 13 INSTALLATION The installer must supply an external regula- Install sediment trap in supply line as shown tor. The external regulator will reduce incom- in Figure 13. Place sediment trap where it ing gas pressure. You must reduce incoming is within reach for cleaning. Place sediment gas pressure to between 11"...
- Page 14 INSTALLATION 3. Pressurize supply piping system by either 5. Correct all leaks at once. opening propane supply tank valve for 6. Reconnect heater and equipment shutoff propane gas or opening main gas valve valve to gas supply. Check reconnected located on or near gas meter for natural fittings for leaks.
-
Page 15: Operation
OPERATION FOR YOUR SAFETY READ BEFORE LIGHTING • Immediately call your gas supplier WARNING: If you do not fol- from a neighbor’s phone. Follow the low these instructions exactly, a gas supplier’s instructions. fire or explosion may result caus- • If you cannot reach your gas supplier, call the fire department. - Page 16 OPERATION Note: If pilot goes out, repeat steps 3 through 7. This heater has a safety inter- Ignitor Electrode lock system. Wait one (1) minute before Thermocouple lighting pilot again. Pilot Burner 8. Turn control knob counterclockwise to desired heating level. The main burner should light.
-
Page 17: Inspecting Heater
INSPECTING HEATER IMPORTANT: Owner’s should check pilot flame pattern and burner flame pattern often. Incorrect flame patterns indicate the need for cleaning (see Care and Maintenance, page 18) or service. WARNING: Only a qualified service person should service and repair heater. This includes maintenance requiring replacement or alteration of components. -
Page 18: Care And Maintenance
CARE AND MAINTENANCE WARNING: Turn off heater and let cool before servicing. CAUTION: You must keep control areas, burner, and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a qualified service techni- cian. -
Page 19: Troubleshooting
TROUBLESHOOTING WARNING: If you smell gas: • Shut off gas supply. • Do not try to light any appliance. • Do not touch any electrical switch; do not use any phone in your building. • Immediately call your gas supplier from a neighbor’s phone. Fol- low the gas supplier’s instructions. - Page 20 TROUBLESHOOTING Problem Possible Cause Corrective Action ODS/pilot lights but flame 1. Control knob is not fully 1. Press in control knob fully. goes out when control pressed in. knob is released. 2. Control knob is not pressed 2. After ODS/pilot lights, keep in long enough.
- Page 21 TROUBLESHOOTING Problem Possible Cause Corrective Action Slight smoke or odor 1. Residues from manufactur- 1. Problem will stop after a few during initial operation. ing process. hours of operation. Heater produces a click- 1. Metal is expanding while 1. This is common with most ing/ticking noise just after heating or contracting while heaters.
-
Page 22: Replacement Parts
• Type of gas used (Propane or Natural gas/ • The replacement part number ACCESSORIES Purchase these heater accessories from your local dealer. If they can not supply these ac- cessories, contact ProCom Heating, Inc. at 1-866-573-0674 or email service@usaprocom. for information. EQUIPMENT SHUTOFF VALVE For all models. -
Page 23: Parts
PARTS MODELS ML200TBA - B AND ML300TBA - B (not field replaceable) This list contains replaceable parts for your heater. When ordering replacement parts, follow the instructions listed under Replacement Parts on page 22 of this manual. ITEM M(N,L)200TBA-B M(N,L)300TBA-B DESCRIPTION ML153-02-RW ML153-01-RW... -
Page 24: Warranty
We make no other warranty, expressed or implied. NEW PRODUCTS Standard Warranty: ProCom Heating, Inc. warrants this product to be free from defects in materials and components for ONE (1) year from the date of first purchase, provided that the product has been properly installed by a qualified installer in accordance with all local codes and instructions furnished with the unit, operated and maintained in accordance with all applicable instructions.
