SPECIfICATIONS

Engine Specifications

– Model . . . . . . . . . . . . . . . . . . . . . .
– Displacement . . . . . . . . . . . . . . . . . . . . . . .
– Type . . . . . . . . . . . . . . . . . . . . . . .
– Start Type . . . . . . . . . . . . . . . . . . . . . . . . .

Generator Specifications

– Model . . . . . . . . . . . . . . . . . . . . . . . . . . .
– Continuous Use Wattage
– Max Running Wattage
– Starting Wattage
– AC Load . . . . . . . . . . . . . . . . . . . . . . . . . .
– Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . .
– Frequency . . . . . . . . . . . . . . . . . . . . . . . . .
– Fuel Capacity . . . . . . . . . . . . . . . . . .
– Gross Weight . . . . . . . . . . . . . .
– Net Weight . . . . . . . . . . . . . . . . . .
– Height . . . . . . . . . . . . . . . .
– Width . . . . . . . . . . . . . . . . .
– Length. . . . . . . . . . . . . . . . . .

fuel

Fuel capacity is 4 gal. (15 L). Use regular unleaded
gasoline with a minimum octane rating of 85 and an
ethanol content of less than 10% by volume.

Oil

Use 10W-30 automotive oil.
Oil capacity is up to 0.63 qt. (0.6 L).
DO NOT OVERFILL.

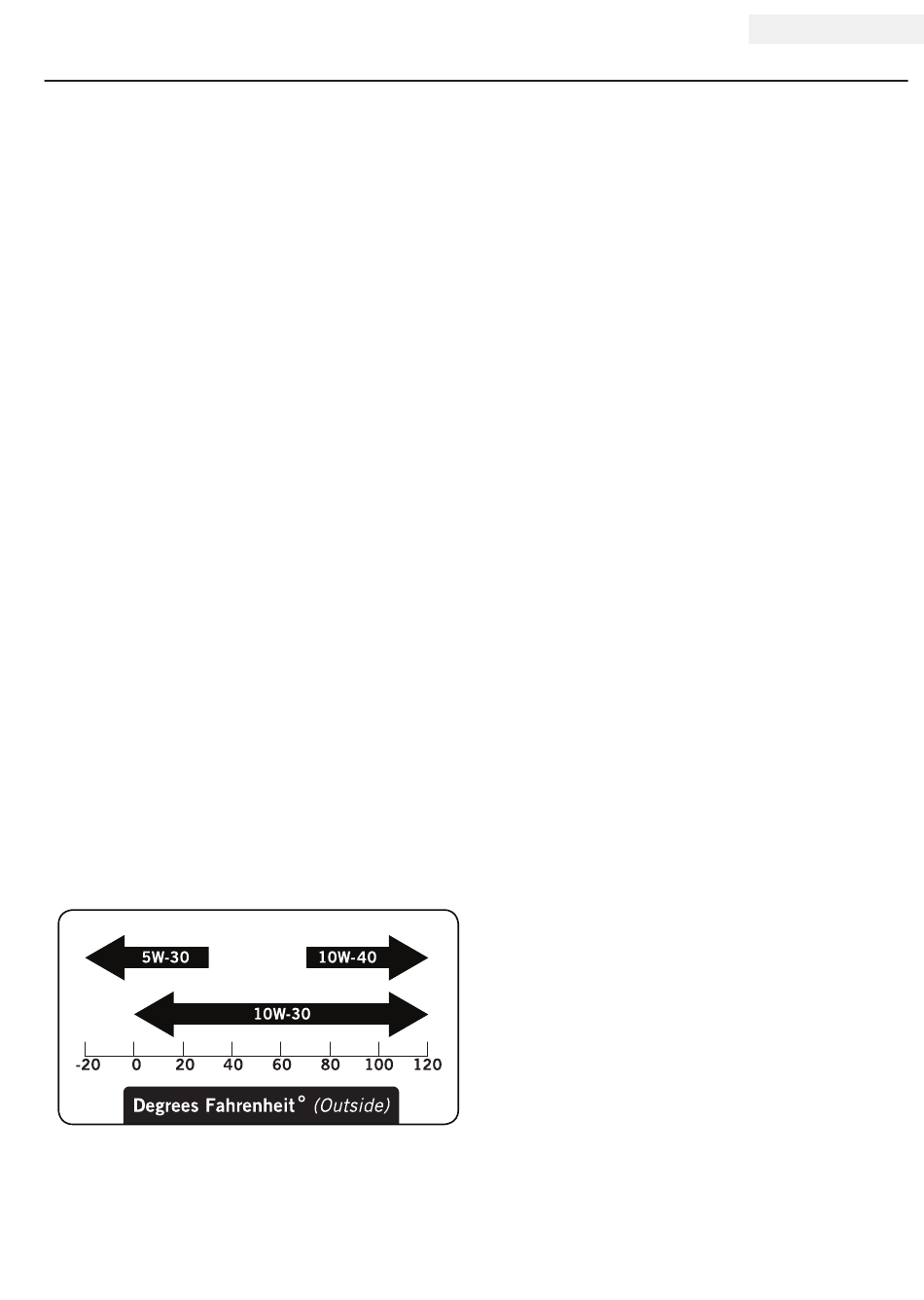

Please reference the following chart for recommended
oil types for use in the generator.
15
REV 46553-20130301
YF168FD-2-01
.4-Stroke OHV
. . . . . . . . . . . 2850 Watts
. . . . . . . . . . . . . 3000 Watts
. . . . . . . . . . . . . . . . . 4000 Watts
4 gal. (15 L)
105.6 lbs (47.9 kg)
99.2 lbs (45 kg)
.17.5 inches (44.4 cm)
17.8 inches (45.1 cm)
23.2 inches (59 cm)

Spark Plugs

OEM spark plug: NHSP F6RTC
Replacement spark plug: NGK BPR6ES or equivalent
196cc
Make certain the spark plug gap is 0.7 - 0.8 mm or
Recoil (0.028 - 0.031 in.).

Maintenance valve Clearance

– Intake: 0.13 – 0.17 mm (0.005 – 0.007 in.)
46553
– Exhaust: 0.18 – 0.22 mm (0.007 – 0.009 in.)
Note: Tech bulletin regarding the valve adjustment
procedure is on www.championpowerequipment.com.
120 V

An Important Message About Temperature

Single
60 Hz
Your Champion Power Equipment product is designed
and rated for continuous operation at ambient
temperatures up to 40°C (104°F). When your product is
needed your product may be operated at temperatures
ranging from -15°C (5°F) to 50°C (122°F) for short
periods. If the product is exposed to temperatures
outside this range during storage, it should be brought
back within this range before operation. In any event,
the product must always be operated outdoors, in a
well-ventilated area and away from doors, windows and
other vents.
