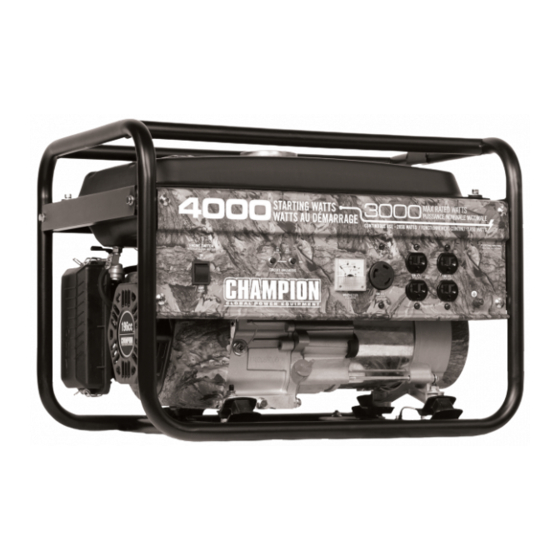

4000 Starting Watts / 3000 Max Rated Watts
2850 Continuous Use Watts
PORTABLE GENERATOR
SAvE ThESE INSTRUCTIONS
Important Safety Instructions
are included in this manual.
OWNER'S MANUAL & OPERATING INSTRUCTIONS
warranty_badges.pdf
1
8/18/11
10:45 AM
MADE IN CHINA
REV 46553-20130301
MODEL NUMBER
46553
10006 Santa Fe Springs Road
Santa Fe Springs CA 90670
USA / 1-877-338-0999
www.championpowerequipment.com
Advertisement
Table of Contents
Related Manuals for Champion 46553
Summary of Contents for Champion 46553

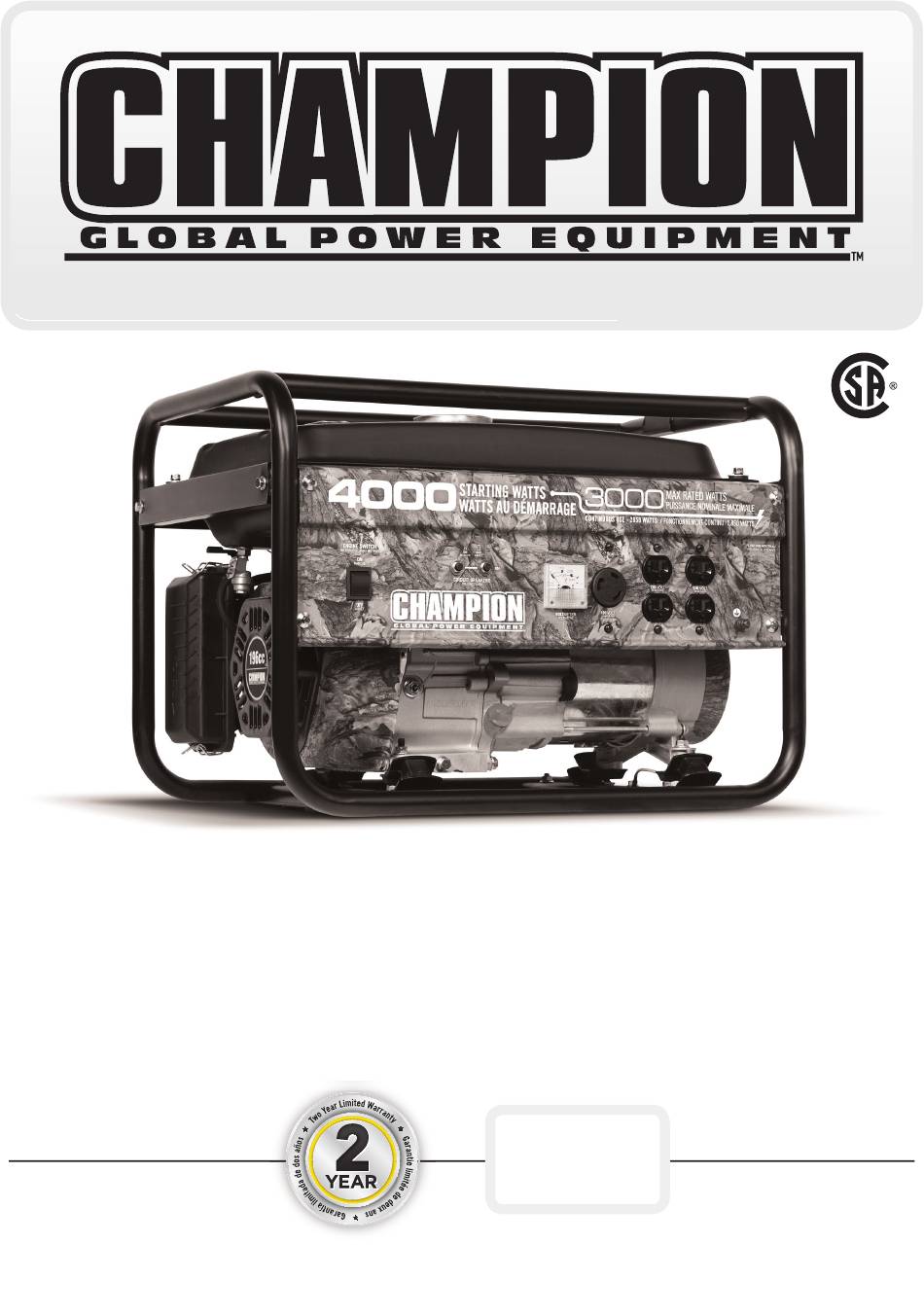

- Page 1 4000 Starting Watts / 3000 Max Rated Watts 2850 Continuous Use Watts PORTABLE GENERATOR MODEL NUMBER 46553 10006 Santa Fe Springs Road SAvE ThESE INSTRUCTIONS Santa Fe Springs CA 90670 Important Safety Instructions USA / 1-877-338-0999 MADE IN CHINA are included in this manual. REV 46553-20130301 www.championpowerequipment.com...
- Page 2 AN IMPORTANT MESSAGE ABOUT TEMPERATURE: Your Champion Power Equipment product is designed and rated for continuous operation at ambient temperatures up to 40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to 50°C (122°F) for short periods.
-
Page 3: Table Of Contents
46553 4000 Starting Watts / 3000 Rated Watts 2850 Continuous Use Watts PORTABLE GENERATOR TABLE Of CONTENTS Generator Maintenance ....Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . -
Page 4: Introduction
ENGLISH INTRODUCTION Introduction Accessories Congratulations on your purchase of a Champion Champion Power Equipment manufactures and sells Power Equipment generator. CPE designs and builds accessories designed to help you get the most from your generators to strict specifications. With proper use and purchase. -
Page 5: Manual Conventions
Please call our help line at 1-877-338-0999 situation which, if not avoided, could result in death or serious injury. CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. REV 46553-20130301... -
Page 6: Safety Rules
Inform your electricity provider immediately if you or anyone in your household depends on electrical equipment to live. Inform your electrical provider immediately if a loss of power would cause you or anyone in your household to experience a medical emergency. REV 46553-20130301... - Page 7 – Electrical output is lost – Equipment sparks, smokes or emits flames A spark arrestor may be required. The operator – Equipment vibrates excessively should contact local fire agencies for laws or regulations relating to fire prevention requirements. REV 46553-20130301...
-
Page 8: Controls And Features
Oil Filler Cap – Check and fill engine oil level. Air Cleaner – Protects the engine by filtering dust and debris from the intake air. Power Panel – See “Power Panel”. REV 46553-20130301... -
Page 9: Power Panel
Ground – Consult an electrician for local grounding regulations. Parts Included Your 46553 Gasoline Powered Generator ships with the following parts: Other – RV Adapter Plug ...... -
Page 10: Assembly
1. Place the generator on a flat, level surface. 2. Remove oil fill cap/dipstick to add oil. 3. Add up to 0.63 qt (0.6 L) of oil and replace oil fill cap/dipstick. DO NOT OVERFILL. 4. Check engine oil level daily and add as needed. REV 46553-20130301... -
Page 11: Add Fuel
DO NOT light cigarettes or smoke when filling the electrician to ensure compliance with local electrical codes. fuel tank. WARNING Pouring fuel too fast through the fuel screen may result in blow back of fuel at the operator while filling. REV 46553-20130301... -
Page 12: Operation
During operation the muffler and exhaust fumes produced will become hot. If adequate cooling and breathing space are not supplied, or if the generator is blocked or contained, temperatures can become extremely heated and may lead to fire. REV 46553-20130301... -
Page 13: Starting The Engine
Connections must isolate generator power from utility power and must comply with all applicable laws and codes. REV 46553-20130301... -
Page 14: Stopping The Engine
4. Allow the engine to stabilize. 5. Plug in and turn on the next item. 6. Allow the engine to stabilize. 7. Repeat steps 5-6 for each additional item. NOTE Never exceed the specified capacity when adding loads to the generator. REV 46553-20130301... -
Page 15: Maintenance And Storage
6. Dispose of used oil at an approved waste 5. Squeeze in a clean, absorbent cloth to remove all management facility. excess oil. 6. Place the fi lter in the assembly. 7. Reattach the air fi lter cover and snap in place. REV 46553-20130301... -
Page 16: Spark Arrester
Service your generator more frequently when operating in adverse conditions. Contact our help line at 1-877-338-0999 to locate the nearest Champion Power Equipment certified service dealer for your generator or engine maintenance needs. Every 8 hours or daily Check oil level... -
Page 17: Generator Maintenance
9. Remove the spark plug and pour about 1⁄2 ounce of oil into the cylinder. Crank the engine slowly to distribute the oil and lubricate the cylinder. 10. Reattach the spark plug. 11. Store the unit in a clean, dry place out of direct sunlight. REV 46553-20130301... -
Page 18: Specifications
......60 Hz Your Champion Power Equipment product is designed – Fuel Capacity .... -
Page 19: Wiring Diagram
46553 ENGLISH SPECIfICATIONS Wiring Diagram REV 46553-20130301... -
Page 20: Parts Diagram
46553 ENGLISH SPECIfICATIONS Parts Diagram REV 46553-20130301... -
Page 21: Parts List
AC.20A Breaker 1.5789.0608 Flange Bolt M6×8 5.1210.925 AC.25A Breaker 122.070011.05 Pipe,Fuel (5.5in) 122.210002.03 Control Box 2.06.007 Clamp Bolt And Washer 122.070400.05 Fuel Cock 1.9074.1.0538.2 Assembly M5×38 122.071000.06.2 Fuel Tank 122.210003.00 Plug Mount Vibration, Fuel 122.070015.01 Tank 2.03.004 Washer Ø6 REV 46553-20130301... -
Page 22: Engine Parts Diagram
46553 ENGLISH SPECIfICATIONS Engine Parts Diagram REV 46553-20130301... -
Page 23: Engine Parts List
Cover, Air Cleaner 23.030007.01 For Equipment) 23.091003.21 Element, Air Cleaner 1.5789.0832.0.8 Flange Bolt M8×32 23.091001.21 Separator, Air Cleaner 23.091002.21 Seal, Air Cleaner 2.03.021.1 Washer (Ø6.4×Ø13×1) 23.110006.00 Rod Governor 1.5789.0620 Flange Bolt M6×20 21.110003.00 Arm, Governor 1.6177.06 Flange Nut M6 REV 46553-20130301... -
Page 24: Troubleshooting
Review load and adjust. See “Power Management” Faulty cords or device Check for damaged, bare or frayed wires. Replace defective device for further technical support: Technical Service Mon – Fri 8:30 AM – 5:00 PM (PST/PDT) Toll Free: 1-877-338-0999 tech@championpowerequipment.com REV 46553-20130301... -
Page 25: Warranty
Warranty Qualifications Other Exclusions Champion Power Equipment (CPE) will register this This warranty excludes: warranty upon receipt of your Warranty Registration Card – Cosmetic defects such as paint, decals, etc. - Page 26 Champion Power Equipment, Inc (CPE), Emission Control System Warranty Your Champion Power Equipment (CPE) engine complies with Environment Canada (EC) emission regulations. YOUR WARRANTY RIGHTS AND OBLIGATIONS: CPE is pleased to explain the Emission Control Systems Warranty on your 2013 small off-road engine.
- Page 27 EMISSION CONTROL SYSTEM WARRANTY The following are specific provisions relative to your Emission Control System Warranty Coverage. Emission Control System Warranty (ECS Warranty): 1. APPLICABILITY: The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
- Page 28 You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours.
