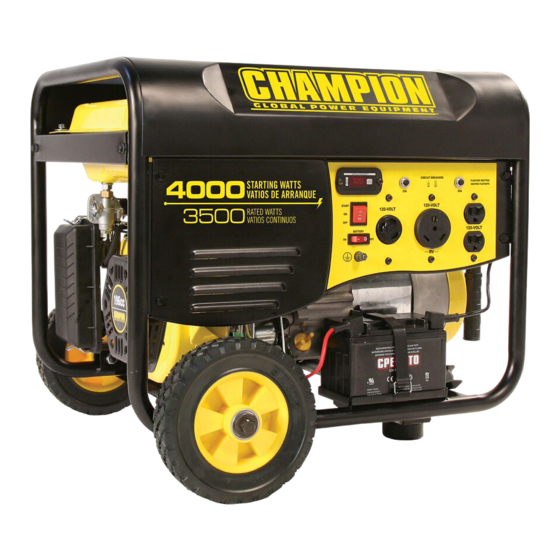

4000 Peak Watts/3500 Running Watts
Wireless Remote Electric Start
PORTABLE GENERATOR
SAvE THESE INSTRuCTIONS
Important Safety Instructions
are included in this manual.
OWNER'S MANUAL & OPERATING INSTRUCTIONS
warranty_badges.pdf
1
8/18/11
10:45 AM
MADE IN CHINA
REV 46565-20120802
MODEL NUMBER
46565
10006 Santa Fe Springs Road
Santa Fe Springs CA 90670
USA / 1-877-338-0999
www.championpowerequipment.com
Advertisement
Table of Contents
Related Manuals for Champion 46565
Summary of Contents for Champion 46565

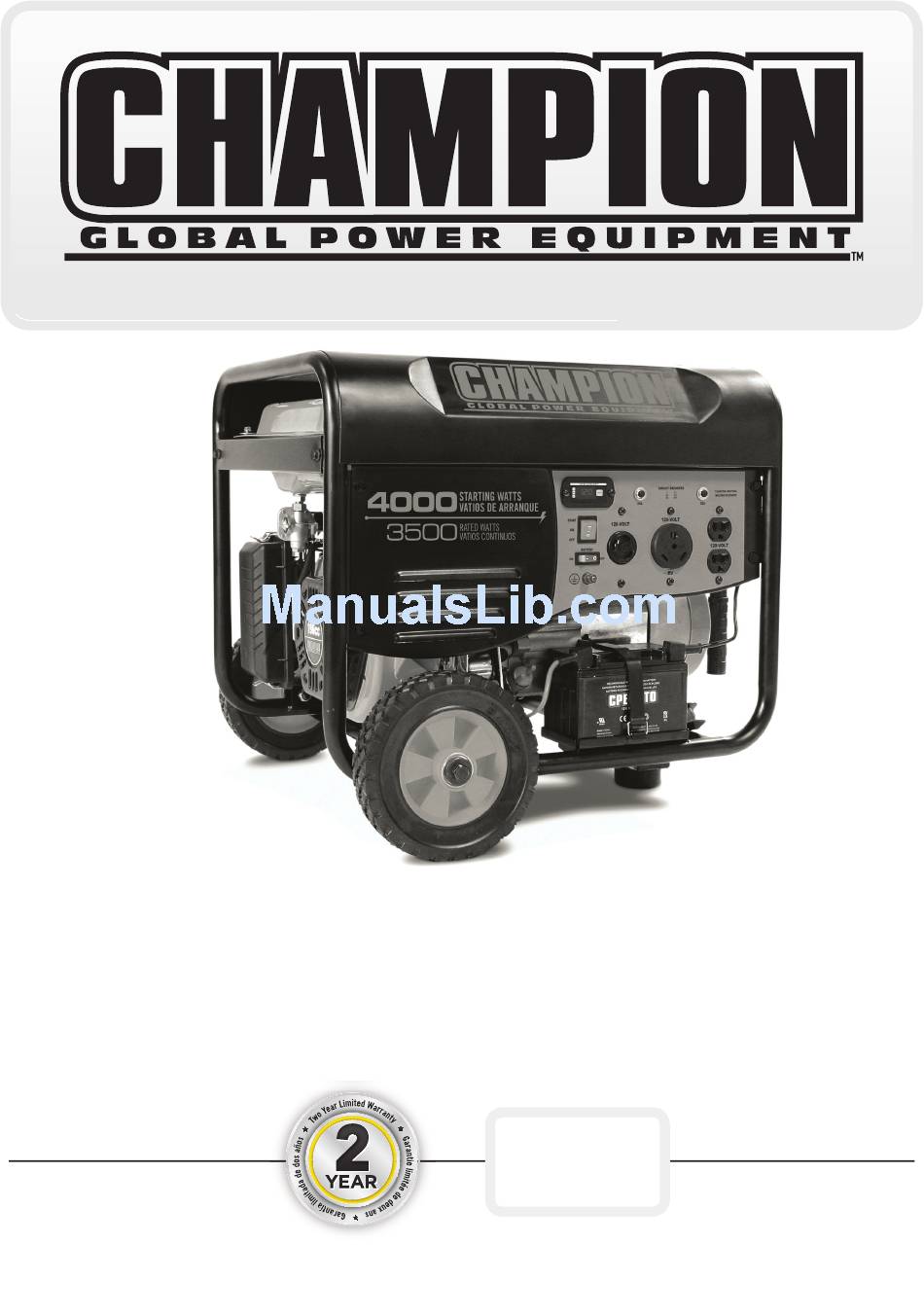

- Page 1 4000 Peak Watts/3500 Running Watts Wireless Remote Electric Start PORTABLE GENERATOR MODEL NUMBER 46565 10006 Santa Fe Springs Road SAvE THESE INSTRuCTIONS Santa Fe Springs CA 90670 Important Safety Instructions USA / 1-877-338-0999 MADE IN CHINA are included in this manual. REV 46565-20120802 www.championpowerequipment.com...
- Page 2 Have questions or need assistance? Do not return this product to the store! WE ARE HERE TO HELP! Visit our website: www.championpowerequipment.com for more info: • Product Info & Updates • Tech Bulletins • Frequently Asked Questions • Product Registration –...
-
Page 3: Table Of Contents
46565 4000 Peak Watts/3500 Running Watts Wireless Remote Electric Start PORTABLE GENERATOR TABLE Of CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -
Page 4: Introduction
ENGLISH INTRODuCTION Introduction Accessories Congratulations on your purchase of a Champion Champion Power Equipment manufactures and sells Power Equipment generator . CPE designs and builds accessories designed to help you get the most from generators to strict specifications . With proper use and your purchase . -
Page 5: Manual Conventions
. Please call our help line at 1-877-338-0999 situation which, if not avoided, could result in death or serious injury . CAuTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury . REV 46565-20120802... -
Page 6: Safety Rules
Inform your electricity provider immediately if you or anyone in your household depends on electrical equipment to live . Inform your electrical provider immediately if a loss of power would cause you or anyone in your household to experience a medical emergency . REV 46565-20120802... - Page 7 – Electrical output is lost – Equipment sparks, smokes or emits flames A spark arrestor may be required . The operator – Equipment vibrates excessively should contact local fire agencies for laws or regulations relating to fire prevention requirements . REV 46565-20120802...
-
Page 8: Controls And Features
DC to the electric starter and receiver control supply fuel to the engine . module . Air Cleaner – Protects the engine by filtering dust Power Panel – See “Power Panel” section . and debris from the intake air . REV 46565-20120802... -
Page 9: Power Panel
Ground Terminal – Consult an electrician for local push-to-reset circuit breaker . Use each recepticle grounding regulations . to operate 120 Volt AC, single phase, 60 Hz loads requiring up to 20 Amp 0r 2400 Watts of power . REV 46565-20120802... -
Page 10: Wireless Remote Control
(6) times . The RCM controls the Auto Choke during each attempt to start . If the generator does not start, call Champion Customer Care team for assistance at 1-877-338-0999 . To stop the generator by Remote Control, press the “STOP”... -
Page 11: Parts Included
46565 ENGLISH CONTROLS AND fEATuRES Parts Included Your 46565 Gasoline Powered Generator ships with the following parts: Wheel Kit – 8” Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -
Page 12: Assembly
2 . Attach the red (+) lead to the red (+) terminal on the battery with the cap screw (M5x12) and secure with the lock washer (M5) . 3 . Repeat steps 1-2 for the black (–) battery lead . REV 46565-20120802... -
Page 13: Add Engine Oil
. 4 . Check engine oil level daily and add as needed . CAuTION The engine is equipped with a low-oil-shutoff and will stop when the oil level in the crankcase falls below the threshold level . REV 46565-20120802... -
Page 14: Add Fuel
We strongly recommend that you consult with a qualified fuel tank . electrician to ensure compliance with local electrical codes . WARNING Pouring fuel too fast through the fuel screen may result in blow back of fuel at the operator while filling . REV 46565-20120802... -
Page 15: Operation
During operation the muffler and exhaust fumes produced will become hot . If adequate cooling and breathing space are not supplied, or if the generator is blocked or contained, temperatures can become extremely heated and may lead to fire . REV 46565-20120802... -
Page 16: Wireless Remote And Electric Start
. certain that the generator is on a flat, level surface . The engine is equipped with a low oil sensor that will prevent the engine from running when the oil level falls below a critical threshold . REV 46565-20120802... -
Page 17: Do Not Overload Generator
To alleviate high altitude issues other than the natural calculated in step 2 . Surge wattage is the extra power loss, Champion Power Equipment can provide a burst of power needed to start some electric driven high altitude carburetor main jet . The alternative main equipment . -
Page 18: Maintenance And Storage
5 . Squeeze in a clean, absorbent cloth to remove all management facility . excess oil . 6 . Place the fi lter in the assembly . 7 . Reattach the air fi lter cover and snap in place . REV 46565-20120802... -
Page 19: Spark Arrester
. Service your generator more frequently when operating in adverse conditions . Contact our helpline at 1-877-338-0999 to locate the nearest Champion Power Equipment certified service dealer for your generator or engine maintenance needs . First 5 Hours Change oil... -
Page 20: Generator Maintenance
30 should be followed . An automatic battery charger with days . REV 46565-20120802... -
Page 21: Specifications
– Increase the separation between the equipment and receiver . – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected . Consult the dealer or an experienced radio/TV technician for help . REV 46565-20120802... -
Page 22: Parts Diagram
46565 ENGLISH SPECIfICATIONS Parts Diagram REV 46565-20120802... -
Page 23: Parts List
AC .20A Breaker 168 .070100 .01 Fuel Tank Cap OV01-00000000 Over Voltage Protector ST02FD-04001002-CARB Pipe, Reversal Valve 504 .210002 .00 Control Box 24 .070025 .00 Orifice, Breather Tube ST02FD-05212001 Plug ST160F-1070007 Clamp ST02FD-05212007 Sheath, Wire ST168F-1070400-CARB Reversal Valve ST02FD-05212002 Plug REV 46565-20120802... -
Page 24: Engine Parts Diagram
46565 ENGLISH SPECIfICATIONS Engine Parts Diagram REV 46565-20120802... - Page 25 ST168FD-1090003 Separator 168 .125200 .01 Relay ST168FD-1090002 Air Cleaner Seal ST168FD-2-1131000-17 Standard Main Jet ST168FD-1090004 Base, Air Cleaner ST168F-2-1131000-17 Altitude Main Jet ST160F-1130004-CPE Carburetor Packing 168 .040004 .34 Guide Plate, Push Rod ST168F-1130001 Insulator, Carburetor ST168F-1130002-CPE Insulator Packing REV 46565-20120802...
-
Page 26: Wiring Diagram
46565 ENGLISH SPECIfICATIONS Wiring Diagram REV 46565-20120802... -
Page 27: Troubleshooting
Review load and adjust . See “Power Management” Faulty cords or device Check for damaged, bare or frayed wires . Replace defective device for further technical support: Technical Service Mon – Fri 8:30 AM – 5:00 PM (PST/PDT) Toll Free: 1-877-338-0999 tech@championpowerequipment .com REV 46565-20120802... -
Page 28: Warranty
. Warranty Qualifications Other Exclusions Champion Power Equipment (CPE) will register this This warranty excludes: warranty upon receipt of your Warranty Registration Card – Cosmetic defects such as paint, decals, etc . - Page 29 United States Environment Protection Agency (U.S. EPA.) Emission Control System Warranty Your Champion Power Equipment (CPE) engine complies with the U.S. EPA emission regulations. YOUR WARRANTY RIGHTS AND OBLIGATIONS: The US EPA AND CPE are pleased to explain the Federal Emission Control Systems Warranty on your 2012 small off-road engine and engine powered equipment.
- Page 30 EMISSION CONTROL SYSTEM WARRANTY The following are specific provisions relative to your Emission Control System Warranty Coverage. 1. APPLICABILITY: This warranty shall apply to 1997 and later model year small off-road engines. The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
- Page 31 You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours.
