8.3 Top and Bottom Views of the Module

NOTE
These are renderings of SC200L module. For authentic dimension and appearance, please refer to the
module that you receive from Quectel.
SC200L_Hardware_Design

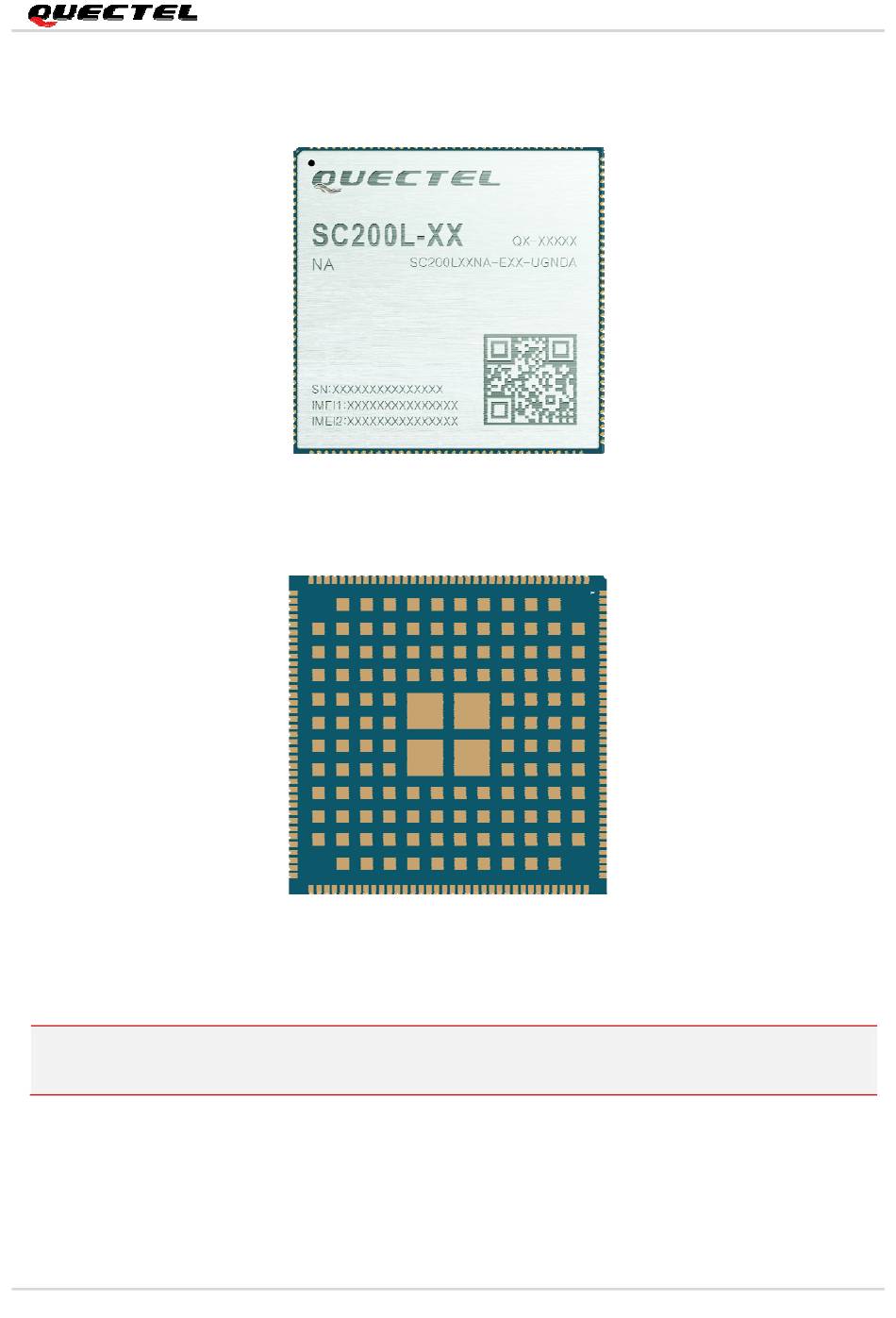

Figure37: Top View of the Module
Figure 38: Bottom View of the Module
