Demonstration Case

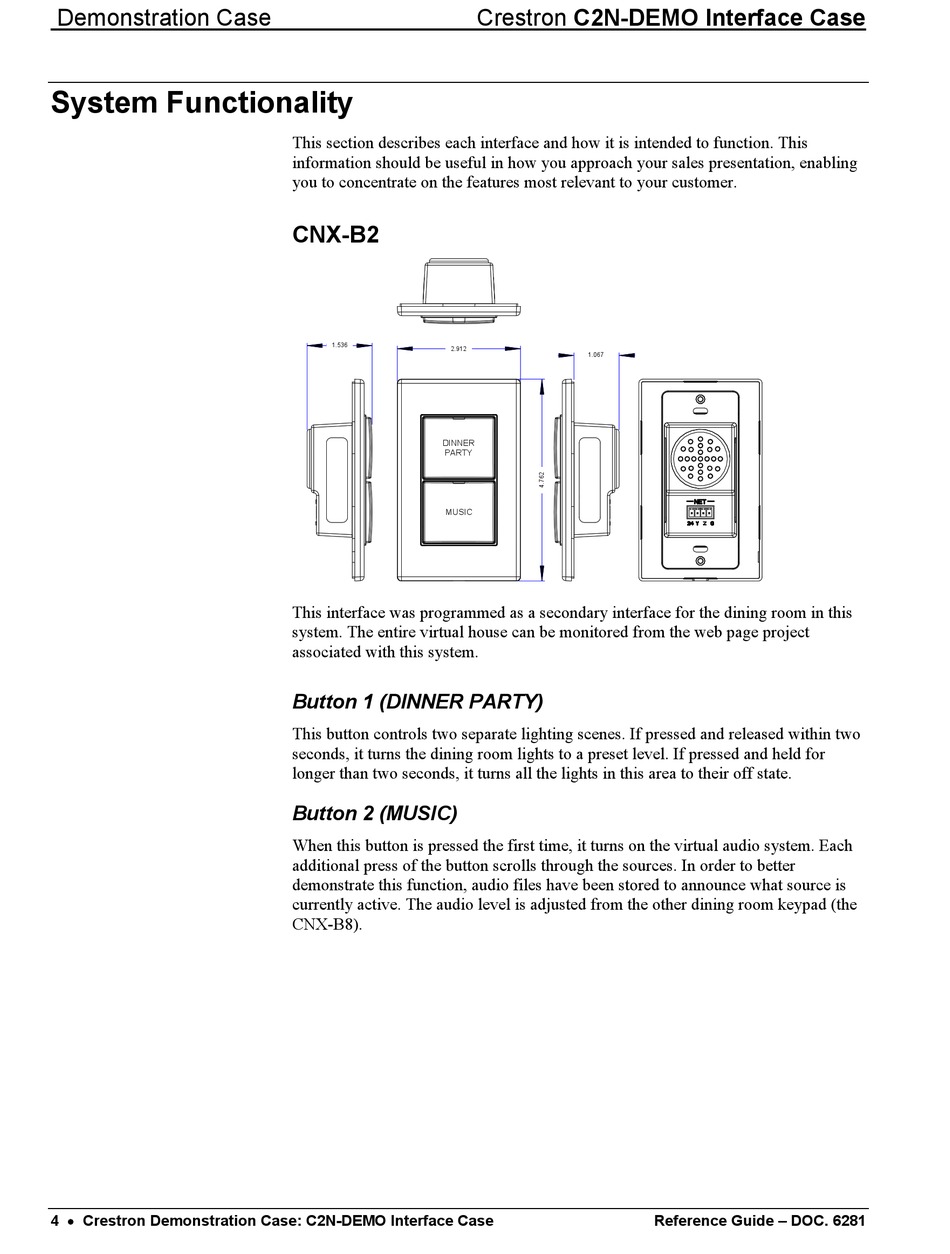

System Functionality
4 • Crestron Demonstration Case: C2N-DEMO Interface Case
This section describes each interface and how it is intended to function. This
information should be useful in how you approach your sales presentation, enabling
you to concentrate on the features most relevant to your customer.
CNX-B2
1.5360"
1.536
2.9119"
2.912
DINNER
PARTY
MUSIC
This interface was programmed as a secondary interface for the dining room in this
system. The entire virtual house can be monitored from the web page project
associated with this system.
Button 1 (DINNER PARTY)
This button controls two separate lighting scenes. If pressed and released within two
seconds, it turns the dining room lights to a preset level. If pressed and held for
longer than two seconds, it turns all the lights in this area to their off state.
Button 2 (MUSIC)
When this button is pressed the first time, it turns on the virtual audio system. Each
additional press of the button scrolls through the sources. In order to better
demonstrate this function, audio files have been stored to announce what source is
currently active. The audio level is adjusted from the other dining room keypad (the
CNX-B8).
Crestron C2N-DEMO Interface Case
1.067
1.0670"
Reference Guide – DOC. 6281
