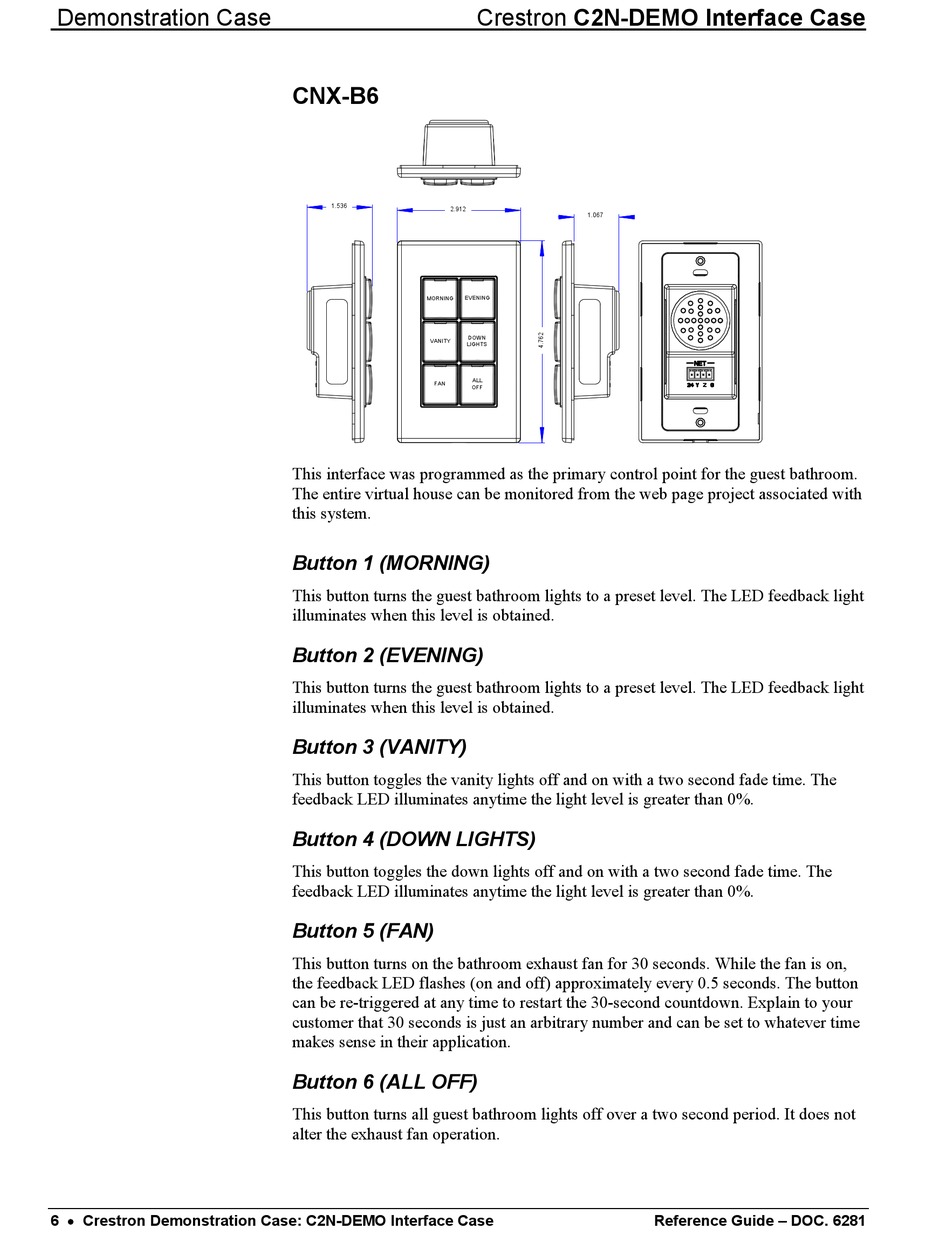

Demonstration Case Crestron C2N-DEMO Interface Case

CNX-B6

1.536
1.5360"
2.912
2.9119"
1.067
1.0670"
EVENING
MORNING
DOWN
VANITY
LIGHTS
ALL
FAN
OFF
This interface was programmed as the primary control point for the guest bathroom.
The entire virtual house can be monitored from the web page project associated with
this system.
Button 1 (MORNING)
This button turns the guest bathroom lights to a preset level. The LED feedback light
illuminates when this level is obtained.
Button 2 (EVENING)
This button turns the guest bathroom lights to a preset level. The LED feedback light
illuminates when this level is obtained.
Button 3 (VANITY)
This button toggles the vanity lights off and on with a two second fade time. The
feedback LED illuminates anytime the light level is greater than 0%.
Button 4 (DOWN LIGHTS)
This button toggles the down lights off and on with a two second fade time. The
feedback LED illuminates anytime the light level is greater than 0%.
Button 5 (FAN)
This button turns on the bathroom exhaust fan for 30 seconds. While the fan is on,
the feedback LED flashes (on and off) approximately every 0.5 seconds. The button
can be re-triggered at any time to restart the 30-second countdown. Explain to your
customer that 30 seconds is just an arbitrary number and can be set to whatever time
makes sense in their application.
Button 6 (ALL OFF)
This button turns all guest bathroom lights off over a two second period. It does not
alter the exhaust fan operation.
6 • Crestron Demonstration Case: C2N-DEMO Interface Case
Reference Guide – DOC. 6281
