Crestron C2N-DEMO Interface Case
Reference Guide – DOC. 6281

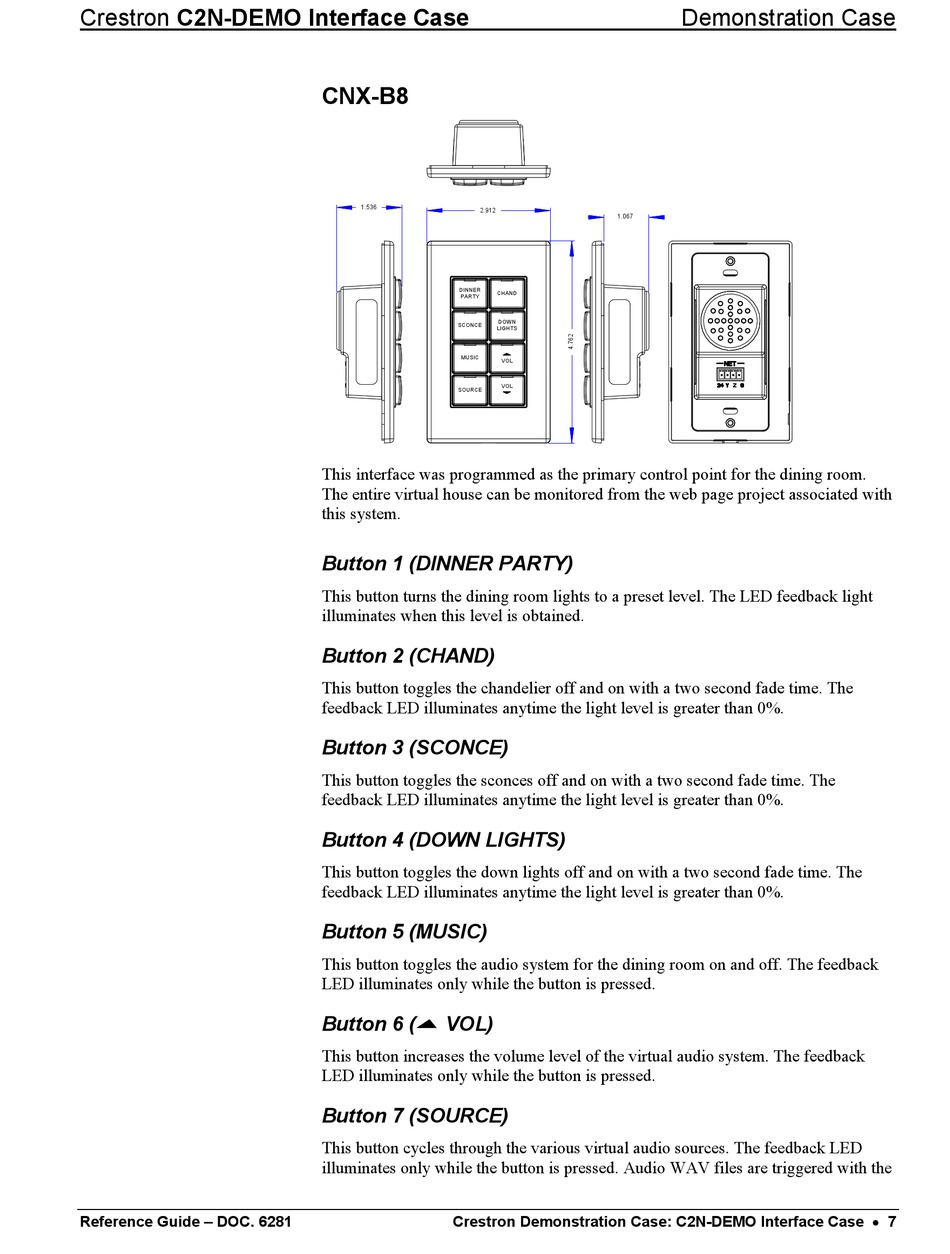

CNX-B8

1.536
1.5360"
2.912
2.9119"
DINNER
CHAND
PARTY
DOWN
SCONCE
LIGHTS
MUSIC
SOURCE
This interface was programmed as the primary control point for the dining room.
The entire virtual house can be monitored from the web page project associated with
this system.
Button 1 (DINNER PARTY)
This button turns the dining room lights to a preset level. The LED feedback light
illuminates when this level is obtained.
Button 2 (CHAND)
This button toggles the chandelier off and on with a two second fade time. The
feedback LED illuminates anytime the light level is greater than 0%.
Button 3 (SCONCE)
This button toggles the sconces off and on with a two second fade time. The
feedback LED illuminates anytime the light level is greater than 0%.
Button 4 (DOWN LIGHTS)
This button toggles the down lights off and on with a two second fade time. The
feedback LED illuminates anytime the light level is greater than 0%.
Button 5 (MUSIC)
This button toggles the audio system for the dining room on and off. The feedback
LED illuminates only while the button is pressed.
Button 6 ( VOL)
K
This button increases the volume level of the virtual audio system. The feedback
LED illuminates only while the button is pressed.
Button 7 (SOURCE)
This button cycles through the various virtual audio sources. The feedback LED
illuminates only while the button is pressed. Audio WAV files are triggered with the
Crestron Demonstration Case: C2N-DEMO Interface Case • 7
1.067
1.0670"
VOL
VOL
Demonstration Case
