C2N-Db6 - Crestron C2N-DEMO-INTERFACE Reference Manual

Demonstration Case Crestron C2N-DEMO Interface Case

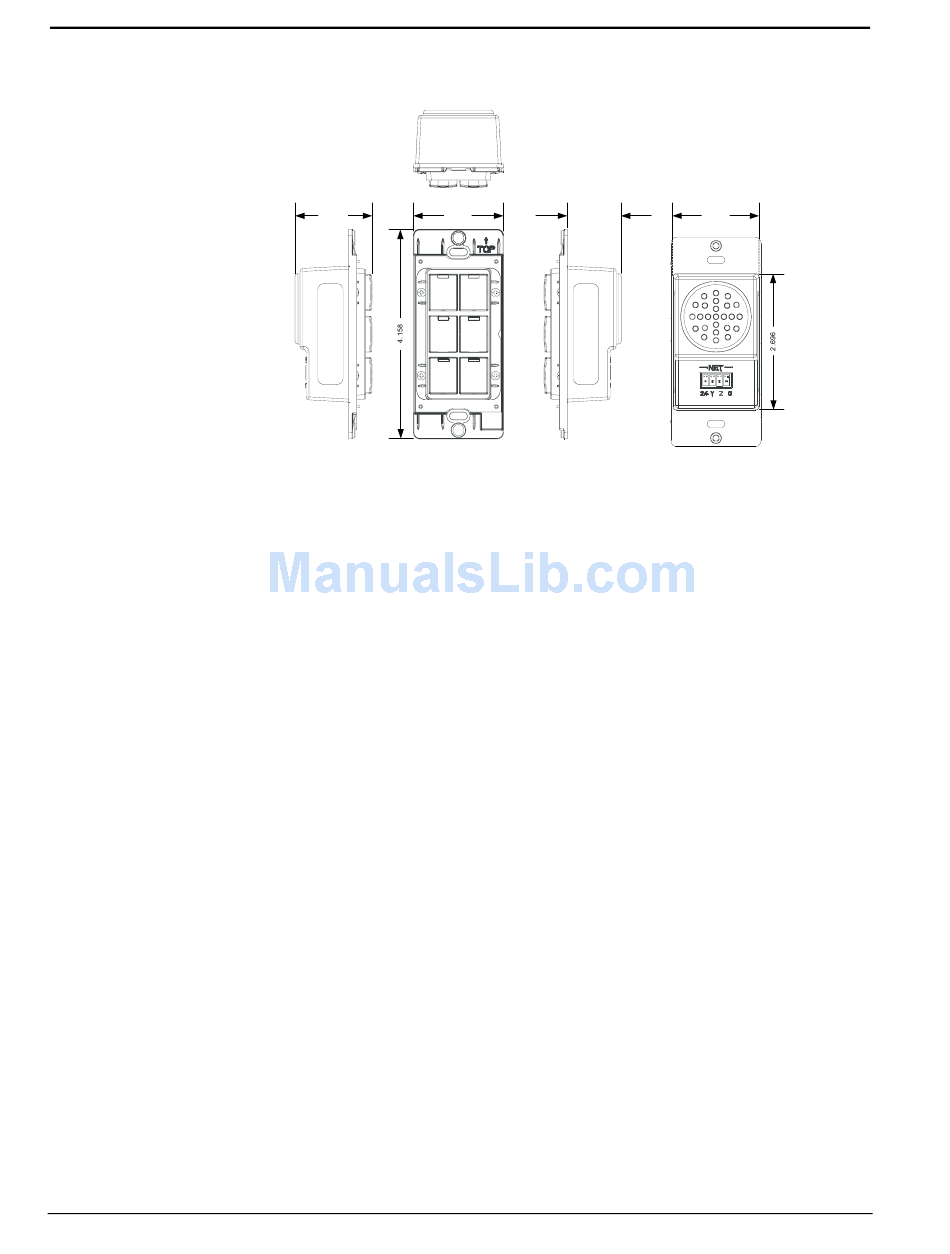

C2N-DB6

1.532 1.788 1.067 1.696
FRONT LAMP
REAR
FAN
FAMILY PARTY
This interface was programmed as the primary control point for the family room.
The entire virtual house can be monitored from the web page project associated with
this system.
Button 1 (FRONT)
This button toggles the front down lights off and on with a two second fade time.
The feedback LED illuminates anytime the light level is greater than 0%.
Button 2 (LAMP)
This button toggles the lamp off and on with a two second fade time. The feedback
LED illuminates anytime the light level is greater than 0%.
Button 3 (REAR)
This button toggles the rear down lights off and on with a two second fade time. The
feedback LED illuminates anytime the light level is greater than 0%.
Button 4 (FAN)
This button turns on the fan and selects various speeds. The first press sets the fan to
speed 4, the second press to speed 3, then to speed 2, speed 1, and finally back to the
off state. The feedback LED illuminates whenever the fan is on.
Button 5 (FAMILY)
This button turns the family room lights to a preset level. The LED feedback light
illuminates when this level is obtained.
Button 6 (PARTY)
This button turns various lights around the house to a preset level. The LED
feedback light illuminates when this level is obtained.
