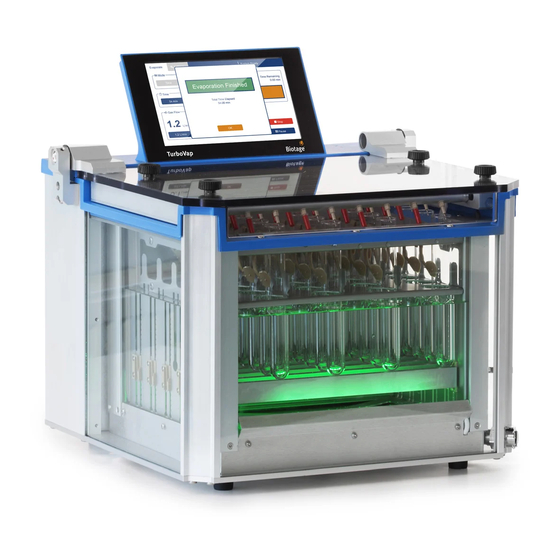

Biotage TurboVap LV Quick Start Manual

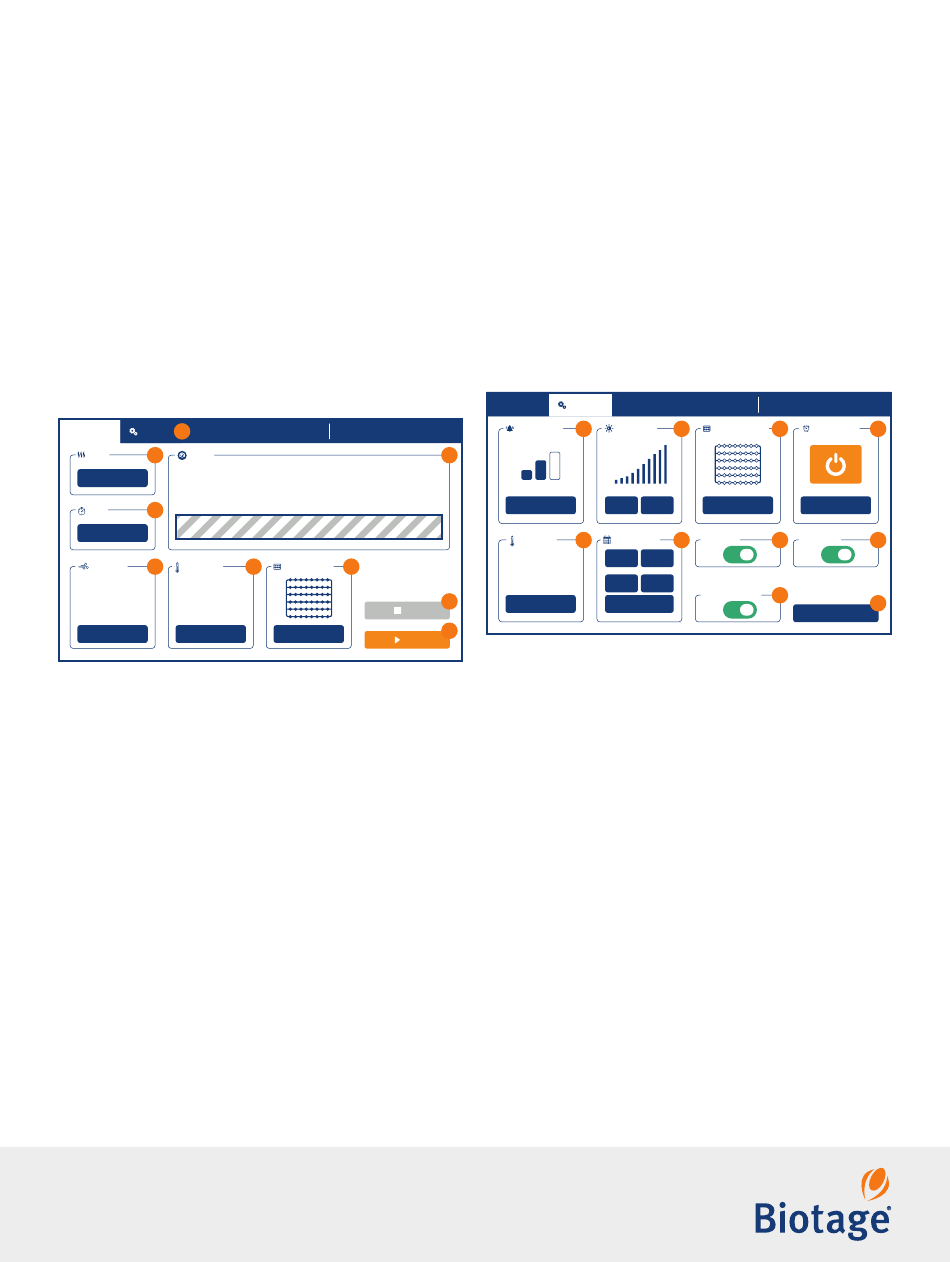

Quick Start Guide to TurboVap
For detailed instructions, see the TurboVap

Mode (1)

Display shows the current operation mode. Mode is controlled
by pressing the blue button. There are three evaporation modes
available on TurboVap LV:
»
Manual: Evaporate until the user presses the Stop button.
»
Time: Evaporate for a set period of time.
»
Method: There are several options. For more information,
see "Define Methods" in the TurboVap
Evaporate

Settings

9
Mode 1

Status

Elapsed (min:sec)

Time

0:00
2
Time
54 min
3

Gas Flow

Bath Temp
0.0 75
L/min °C
1.2 L/min 75 °C
Time (2)
Display shows the set evaporation time in minutes for the
current evaporation method. Time is controlled by pressing the
blue button. (Only shown in Time mode.)
Gas Flow (3)
Display shows the current and set gas flow in L/min. Gas flow is
controlled by pressing the blue button.

Bath Temperature (4)

Display shows the current and set water bath temperature in °C
or °F. Bath temperature is controlled by pressing the blue button.

Nozzle Setup (5)

Display shows which nozzle rows are currently enabled.
Rows are selected ON or OFF by pressing the blue button.
Status (6)
Display shows the remaining and/or elapsed time of the
current evaporation.
© Biotage 2020
User Manual.
®
User Manual.
®
System Ready
12:13 Wed 22 Jan 2020
Remaining (min:sec)
54:00
4 5
Nozzle Setup

Stop

Edit
Start
LV
®

Start/Pause (7)

Press to start or pause the evaporation in progress.
Stop (8)
Press to stop the evaporation in progress.
Settings (9)
Press to define system settings. Displays an alternative screen.
Evaporate Settings
10 Brightness

Sound Level

6
Medium -
14
Temp Unit Time & Date
16
°C
22
8
Change
7
Sound Level (10)
Display shows the current sound level. Sound level is controlled
by pressing the blue button. The sound level can be set to Low,
Medium, High, or OFF.
Brightness (11)
Display shows the brightness of the touch screen. Brightness
is controlled by pressing either + or –.

Manifold Setup (12)

Display shows the selected/installed manifold. For more
information, see "Manifolds" in the TurboVap

Sleep Mode (13)

Display shows the sleep mode settings. For more information,
see "Sleep Mode and Automatic Wake-Up" in the TurboVap
User Manual.
Temp Unit (14)
Display shows the temperature unit used by the system.
Press Change to switch between °C or °F.
Quick Start Guide to TurboVap
System Ready
16:48 Wed 22 Jan 2020
11 12
Manifold Setup
+ 48 Positions
15 16
Lid Sleep Bath Light
OFF ON OFF
: 48
Jan
Cont End-Point 17
2020
OFF ON
User Manual.
®
LV | Page 1
®
13
Sleep Mode
Edit
18
ON
19
More »
®
