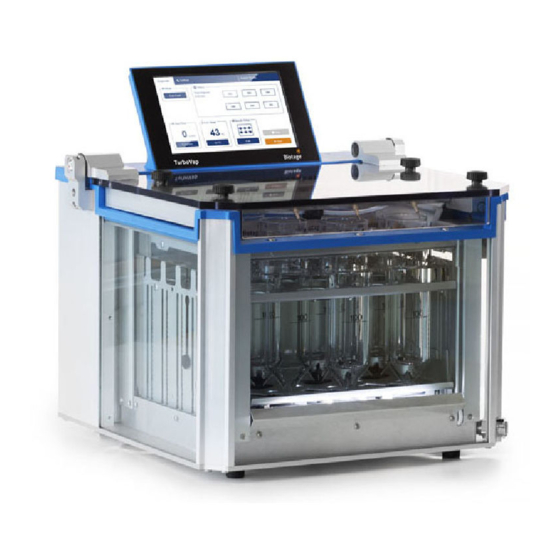

Biotage TurboVap II Quick Start Manual

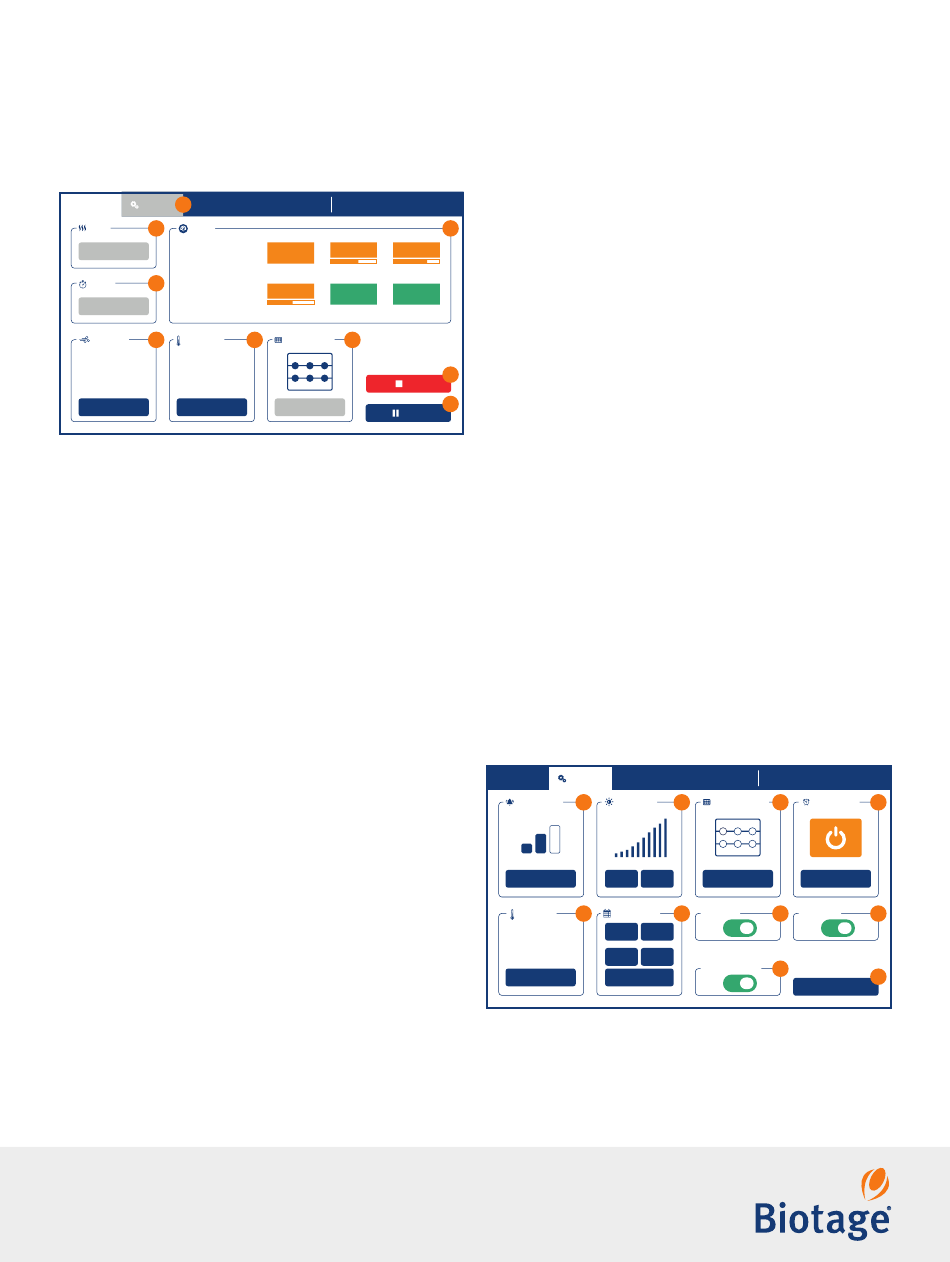

Quick Start Guide to TurboVap
Evaporate Settings 9
Mode 1
Status
Elapsed (min:sec)
End-Point + Time
45:55
2
+Time
15 min
3
Gas Flow Bath Temp
1.2 55
L/min °C
1.2 L/min 55 °C
For detailed instructions, see the TurboVap
Mode (1)
Display shows the current operation mode. Mode is controlled
by pressing the blue button. There are five evaporation modes
available on TurboVap II:
»
Manual: Evaporate until the user presses the Stop button.
»
Time: Evaporate for a set period of time.
»
End-Point: Evaporate until the end-point sensors
detect a liquid level of 0.2 or 0.7 mL depending on the
glassware. Each sample tube is controlled individually.
»
End-Point + Time: Evaporate for a set period of time after the
sensor detects a liquid level of 0.2 or 0.7 mL depending on
the glassware. Each sample tube is controlled individually.
»
Method: There are several options. For more information,
see "Define Methods" in the TurboVap
Note that the two end-point detection modes are only enabled
when a TurboVap II end-point rack has been connected to the
system's AUX port.
Time (2)
Display shows the set evaporation time (when in Time mode)
or the amount of time the evaporation will continue in a sample
tube after its liquid level passes below the sensor (when in
End-Point + Time mode). (Not shown in other modes.)
Gas Flow (3)
Display shows the current and set gas flow in L/min. Gas flow is
controlled by pressing the blue button.
© Biotage 2020
Evaporating
15:51 Wed 22 Jan 2020
6:53 min 4:01 min
Evaporate
7:35 min
Done Done
4 5
Nozzle Setup
Stop
Edit
Pause
User Manual.
®
User Manual.
®
II
®
Bath Temperature (4)
Display shows the current and set water bath temperature in
6
°C or °F. Bath temperature is controlled by pressing the blue
button. Racks with end-point sensors can only be used at bath
temperatures up to 60 °C.
Nozzle Setup (5)
Display shows which nozzles are currently enabled. Nozzles
are selected ON or OFF by pressing the blue button. When in
8
End-Point or End-Point + Time mode, selection can only be done
when the system is not processing.
7
Status (6)
Display shows the remaining and/or elapsed time of the current
evaporation. When in End-Point or End-Point + Time mode,
individual tube status is shown; OFF, Idle, Evaporate, or Done.
When in End-Point + Time mode, remaining time is also shown.
Start/Pause (7)
Press to start or pause the evaporation in progress.
Stop (8)
Press to stop the evaporation in progress.
Settings (9)
Press to define system settings. Displays an alternative screen.
Evaporate Settings
10 Brightness
Sound Level
Medium -
14
Temp Unit Time & Date
16
°C
22
Change
Sound Level (10)
Display shows the current sound level. Sound level is controlled
by pressing the blue button. The sound level can be set to Low,
Medium, High, or OFF.
Quick Start Guide to TurboVap
System Ready
16:48 Wed 22 Jan 2020
11 Manifold Setup 12
+ 6 Positions
15 Lid Sleep 16 Bath Light
OFF ON OFF
: 48
Jan
Cont End-Point 17
2020
OFF ON
II | Page 1
®
Sleep Mode 13
Edit
18
ON
19
