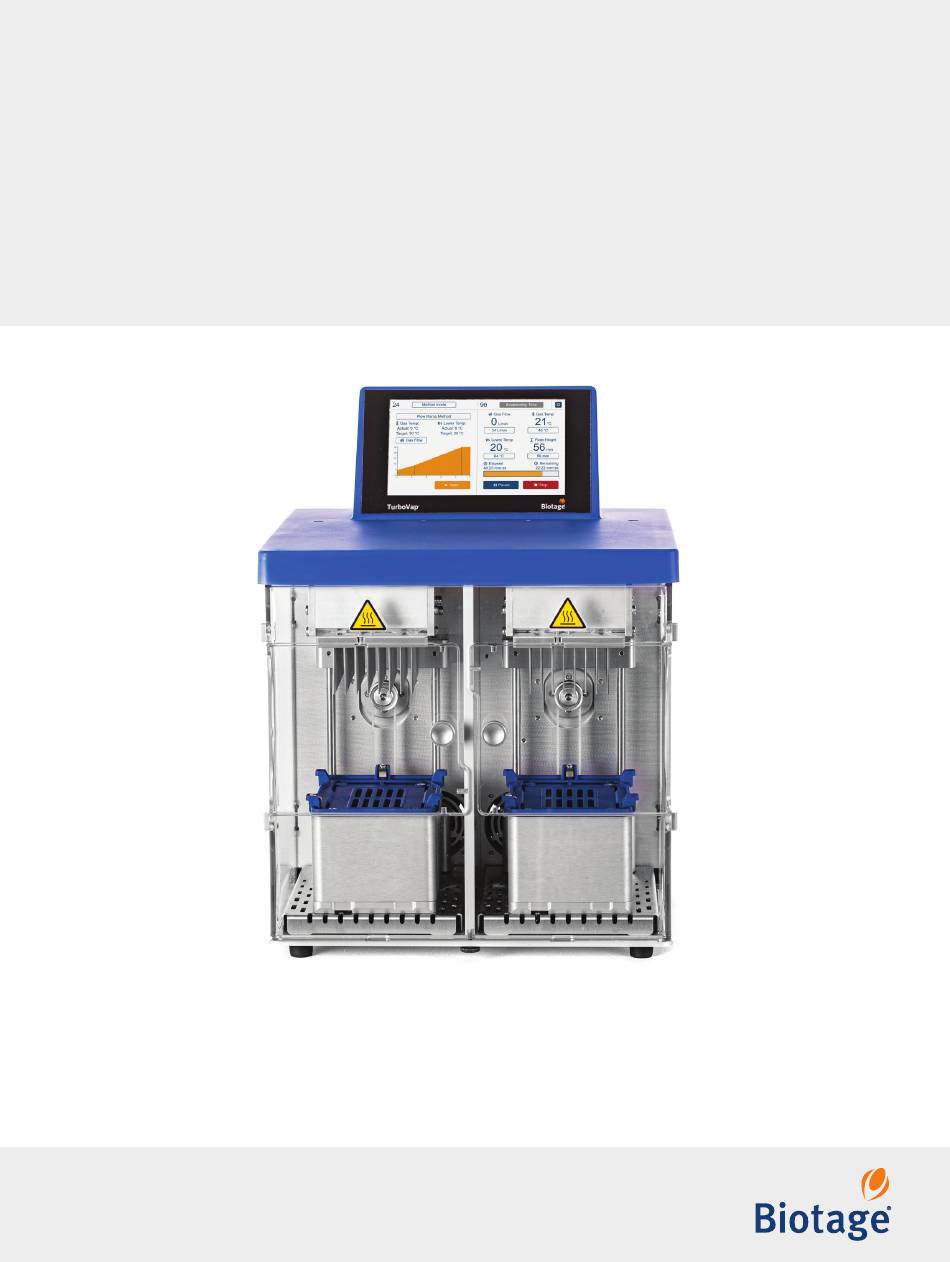

  • Page 1 Title Truncated if Neccessary... | Page 1 TurboVap 96 Dual ® User Manual Patent Pending © Biotage 2021...

  • Page 2: Table Of Contents

    Unload the Samples Maintenance Clean the Exterior of the System Clean the Interior of the System Clean the Manifolds Clean the Plate Heaters Inspections Replace the Fuse Long Term Storage TurboVap 96 Dual User Manual | © Biotage 2021 ®...

  • Page 3: System Overview

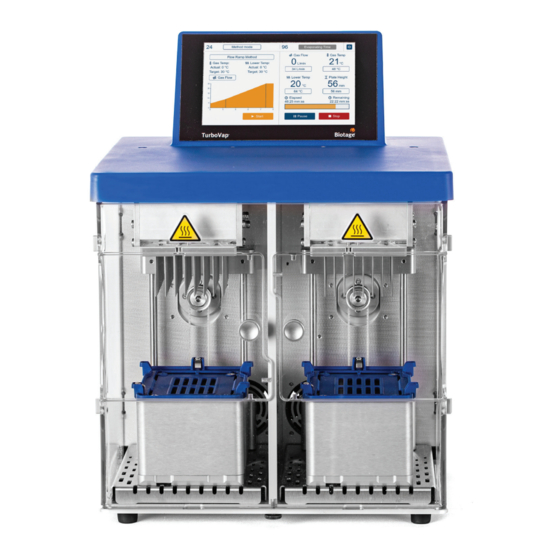

    System Overview System Overview Instrument Overview TurboVap 96 Dual is an automated well plate evaporation ® system that can process two well plates simultaneously, either in dual or single evaporation mode. Each well plate can be heated from above using heated gas and from below using forced air convection.

  • Page 4: Evaporation Process

    (see Figure 1) will elevate the plate heater to the predefined height. Figure 4. The TurboVap 96 Dual with the LED lights at different brightness settings for the two cabinets. If a cabinet door is opened, the evaporation run will pause When performing an evaporation run in Time mode or Method automatically.

  • Page 5: Manifolds

    System Overview If an error occurs, an audible alarm will sound and the LED lights change color to red. The alarm volume can be set to Low, Medium, High, or OFF. Figure 5. When an evaporation run is completed, the LED lights for the cabinet change color to green.

  • Page 6: Determine Optimal Evaporation Conditions

    » The environmental conditions outside of the system should be held constant while an evaporation run is in progress. TurboVap 96 Dual User Manual | © Biotage 2021 ®...

  • Page 7: Determine The Appropriate Gas Heater Temperature

    Determine Optimal Evaporation Conditions Determine the Appropriate Gas Heater Temperature Consider the following when selecting the gas heater temperature: » Higher gas temperatures generally increase the solvent evaporation rate; however, at high gas temperatures the likelihood of analyte loss or degradation is increased. »...

  • Page 8: Define System Settings

    Network and Firmware: Network and firmware settings. Common Settings view (Figure 11). These settings are for service purposes only. The following settings can be configured: Note: The network connection is for Biotage personnel only. » Manifold Setup: The installed manifold to be »...

  • Page 9: Evaporation Settings

    Define System Settings » The cabinet light can also be turned OFF. The light can Wait for plate temperature: Tick the box to be independently adjusted between the two cabinets. wait for the plate temperature to reach the set » value before starting an evaporation.

  • Page 10: Network And Firmware

    Press the Network and Firmware button, see Figure 10, to enter the instructions on the screen. the Network and Firmware view (Figure 13). » Copyright: Display legal information Note: The network connection is for Biotage personnel only. and software release year. Installed Firmware See current firmware versions Serial number...

  • Page 11: Prepare The System

    Prepare the System Prepare the System Replace the Manifold 4. Examine the new manifold and the gasket for debris. If there is debris between the manifold and the gas heater, gas Warning leaks can occur. » Note: Do not touch the inside of the gas heater. Touching may The nozzles may have come into contact with hazardous samples.

  • Page 12: Evaporate

    Press to cancel mode selection Figure 18. The different evaporation modes that can be selected. This figure shows a dual system setup where left and right cabinets both have the same manifold configuration (96). TurboVap 96 Dual User Manual | © Biotage 2021 ®...
  • Page 13 Evaporate Manual Mode To terminate the run before it reaches the set end time, press Stop. To pause the run, press Pause. The pause will temporarily Figure 20 displays the Manual mode view. The display shows turn off the gas flow. that the left side is idle (the orange Start button is active) and the right side is running an evaporation (the blue Pause button and the red Stop button are active).
  • Page 14 The left and right side can also operate as a dual unit, performing the same evaporation run with the same evaporation parameters. TurboVap 96 Dual User Manual | © Biotage 2021 ®...
  • Page 15 Evaporate Note: Changes made to methods cannot be undone. Overwritten data will be lost. Set Up a Method Before setting up a method, read "Determine Optimal Evaporation Conditions" on page 6. Also make sure that desired evaporation settings are defined, see "Evaporation Settings"...
  • Page 16 Figure 31. The Select method to copy data from view where the method to be copied is selected. Figure 29. Press and hold the Plate height button, then move the lift by pressing the Up and Down arrows. TurboVap 96 Dual User Manual | © Biotage 2021 ®...

  • Page 17: Monitor An Evaporation Run

    Evaporate Edit an Evaporation Run in Progress During Manual mode and Time mode evaporation runs, it is possible to change the evaporation parameters. When running in Method mode, the evaporation parameters cannot be changed. To edit the evaporation parameters, see "Change a Setting in Manual or Time Mode"...

  • Page 18: Unload The Samples

    Prompt removal of the sample tubes is important since highly volatile compounds can be lost if allowed to sit for an extended period of time. Figure 35. Carefully remove the well plate. TurboVap 96 Dual User Manual | © Biotage 2021 ®...

  • Page 19: Maintenance

    » The power cord should be inspected periodically and replaced if damaged or altered. Use only a power cord supplied by Biotage. » The exhaust hose should be inspected periodically and replaced if damaged or altered. Use only an exhaust hose supplied by Biotage.

  • Page 20: Clean The Manifolds

    3. Close the door and lift the container so that the nozzles are submerged in the desired cleaning solvent. (Do not start an evaporation run.) TurboVap 96 Dual User Manual | © Biotage 2021 ®...

  • Page 21: Clean The Plate Heaters

    Warning » Use only exact replacement fuses supplied by Biotage. Incorrect fuses will void the warranty of the system and creates a potential fire hazard and a risk of personal injury. 1. Turn off the system and disconnect the power cord.
  • Page 22 1. Remove and clean the manifolds as described on page 20. 2. Place the manifold in its original packaging and store it in a dust free environment. TurboVap 96 Dual User Manual | © Biotage 2021 ®...

  • Page 23: Troubleshooting

    One or more nozzles may be bent. Make sure the outer diameter is used, i.e. 6 mm. Always use nozzles are aligned in straight rows. If the nozzles tubing and adapters supplied by Biotage. » cannot be aligned, contact Biotage 1-Point Support ®...

  • Page 24: Accessories And Spare Parts

    Accessories and Spare Parts Manufacturer Only use genuine Biotage accessories in the system. To order Biotage GB Limited United Kingdom for consumables and accessories, see contact information on the last Biotage Sweden AB page of this document or visit our website www.biotage.com.

  • Page 25: Notes

    Notes Notes...
  • Page 26 Part Number: 418001-B © 2021 Biotage. All rights reserved. No material may be reproduced or published without the written permission of Biotage. Information in this document is subject to change without notice and does not represent any commitment from Biotage. E&OE.
