Biotage TurboVap P+ Quick Start Manual

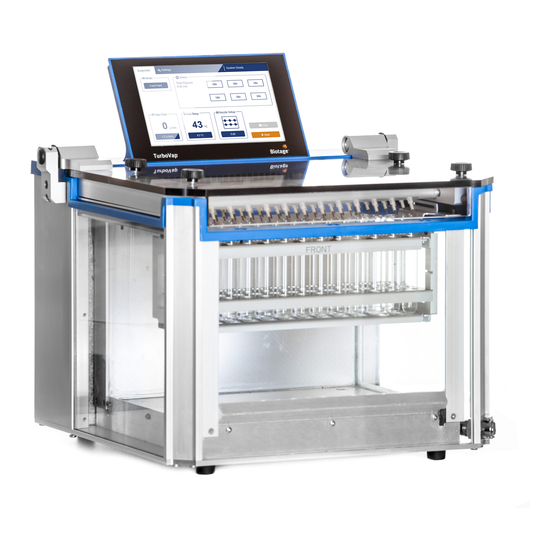

Quick Start Guide to TurboVap
For detailed instructions, see the TurboVap

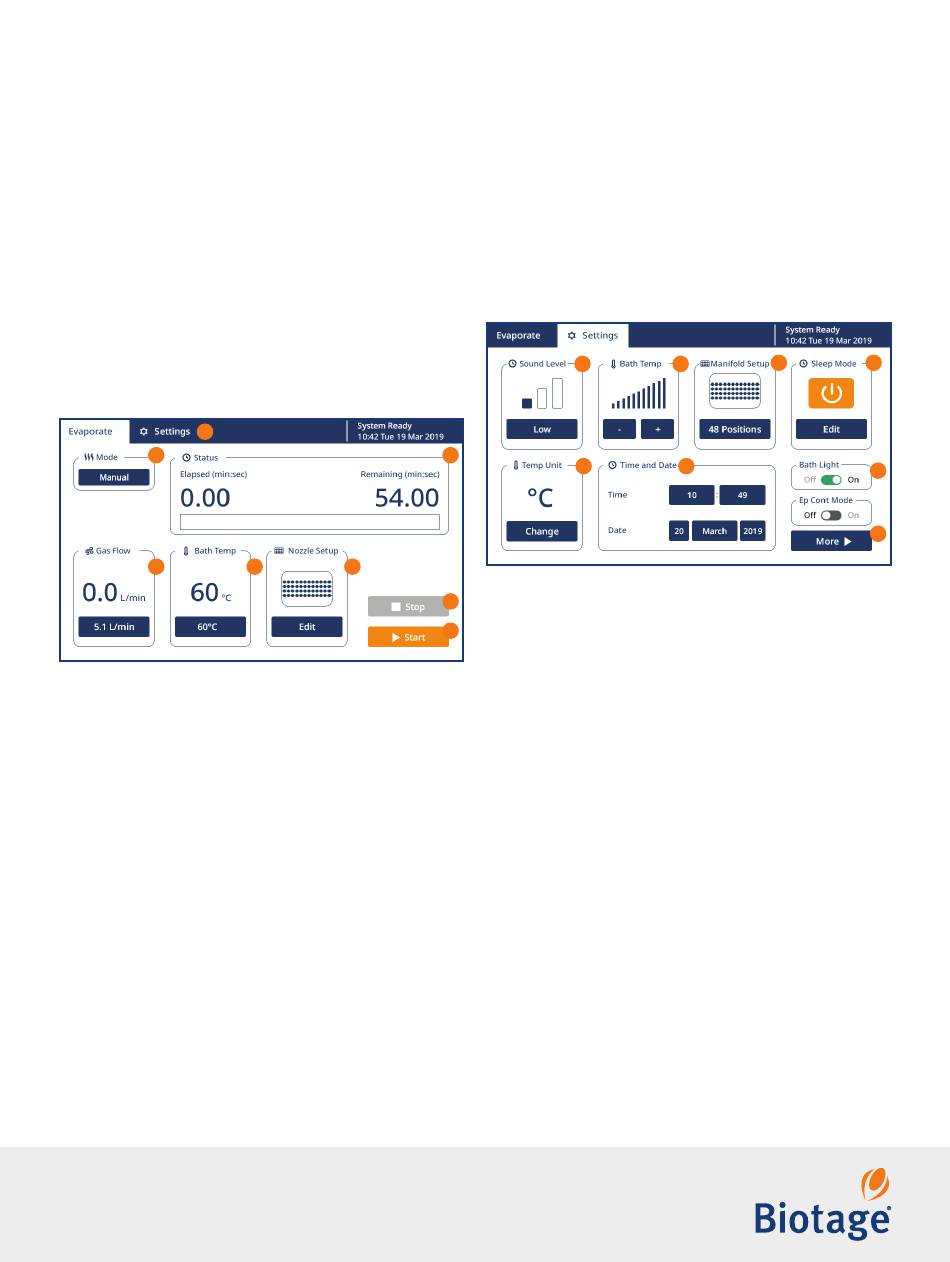

Mode (1)
Display shows the current operation mode. Mode is controlled
by pressing the blue button. There are three evaporation modes
available on TurboVap P+:
»
Manual: Evaporate until the user presses the Stop button.
»
Time: Evaporate for a set period of time.
»
Method: There are several options. For more information,
see "Define Methods" in the TurboVap
8
1
2
Gas Flow (2)
Display shows the current and set gas flow in L/min. Gas flow is
controlled by pressing the blue button.
Bath Temperature (3)
Display shows the current and set water bath temperature in °C
or °F. Bath temperature is controlled by pressing the blue button.
Nozzle Setup (4)
Display shows which nozzle rows are currently enabled.
Rows are selected ON or OFF by pressing the blue button.
Status (5)
Display shows the remaining and/or elapsed time of the
current evaporation.
Start/Pause (6)
Press to start or pause the evaporation in progress.
© Biotage 2021
User Manual.
®
User Manual.
®
3 4
P+
®
Stop (7)
Press to stop the evaporation in progress.
Settings (8)
Press to define system settings. Displays an alternative screen.
9
5
13
Sound Level (9)
7
Display shows the current sound level. Sound level is controlled
6
by pressing the blue button. The sound level can be set to Low,
Medium, High, or OFF.
Brightness (10)
Display shows the brightness of the touch screen. Brightness
is controlled by pressing either + or –.
Manifold Setup (11)
Display shows the selected/installed manifold. For more
information, see "Manifolds" in the TurboVap
Sleep Mode (12)
Display shows the sleep mode settings. For more information,
see "Sleep Mode and Automatic Wake-Up" in the TurboVap
User Manual.
Temp Unit (13)
Display shows the temperature unit used by the system.
Press Change to switch between °C and °F.
Quick Start Guide to TurboVap P+ | Page 1
®
