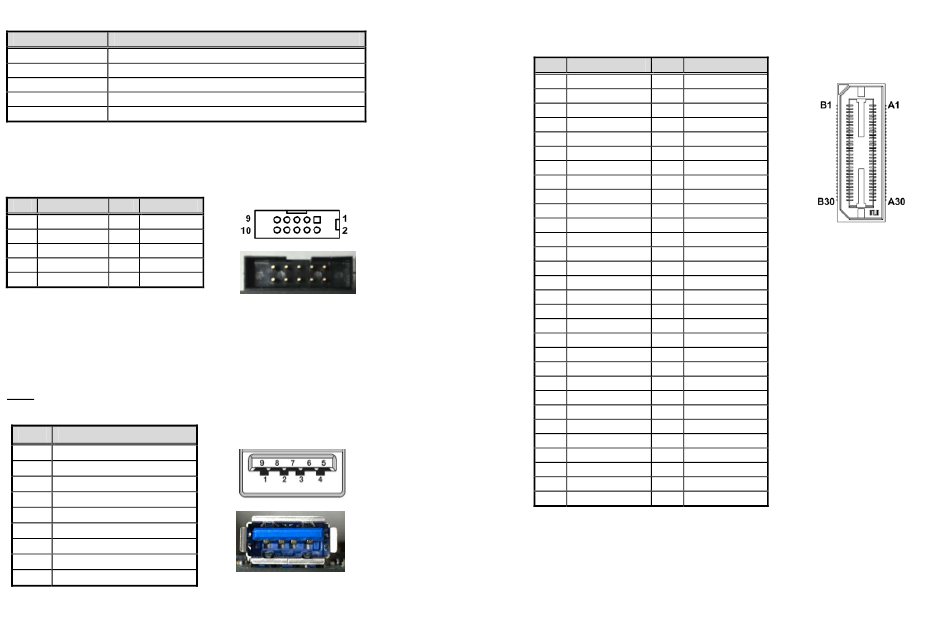

Connectors

Connector Description
COM1 COM1 Connector
COM2 COM2 Connector
USB1 USB3.0 Port 1
USB2 USB3.0 Port 2
USB3 USB3.0 Port 3

COM Connectors (COM1 and COM2)

This module comes with two box headers which are compliant with Molex
78046-1020, 2x5-pin p=2.00mm for COM1 and COM2. Moreover, both of
them are RS-232 at 2KV isolation.
Pin Signal Pin Signal
1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTS
7 DTR 8 RI
9 GND 10 N.C.

USB3.0 Ports (USB1~USB3)

This module comes with three high rise double-deck Universal Serial Bus
(compliant with USB 3.0 (5Gb/s)) connector on the rear I/O which are for
installing USB peripherals such as keyboard, mouse, scanner, etc.
Note: USB1 as USB3.0 port is subject to which 3.5" SBC are installed. If
the 3.5" SBC can't support USB1 as USB3.0 port, USB1 is USB2.0 port.
Pin Signal
1 USB_VCC (+5V Power)
2 USB_Data0-
3 USB_Data0+
4 GND
5 SSRX0-
6 SSRX0+
7 GND
8 SSTX0-
9 SSTX0+
2 94193295000E
©
Copyright 2016 Axiomtek Co., Ltd.
Version A1 May 2016
Printed in Taiwan

ZIO Expansion Connector (CN1)

The CN1 is for connecting ZIO expansion module to 3.5" SBC with ZIO
connector.
Pin Signal Pin Signal
A1 +12V B1 GND
A2 +5VSB B2 GND
A3 +5VSB B3 GND
A4 +3.3VSB B4 GND
A5 +3.3VSB B5 RSVD
A6 RSVD B6 RSVD
A7 RSVD B7 RSVD
A8 SMB_CLK B8 RSVD
A9 SMB_DATA B9 GND
A10 GND B10 PCI-E TXP4
A11 PCI-E RXP4 B11 PCI-E TXN4
A12 PCI-E RXN4 B12 WAKE_N
A13 RSVD B13 PCI-E CLKP
A14 USBP_0P B14 PCI-E CLKN
A15 USBP_0N B15 GND
A16 No Use B16 CLK_33M
A17 No Use B17 SERIRQ
A18 GND B18 LAD0
A19 SSTX+ B19 LAD1
A20 SSTX B20 LAD2
A21 PLTRST_N B21 LAD3
A22 SSRX+ B22 L_FRAME
A23 SSRX B23 GND
A24 GND B24 No Use
A25 No Use B25 No Use
A26 No Use B26 No Use
A27 No Use B27 No Use
A28 No Use B28 GND
A29 GND B29 No Use
A30 No Use B30 No Use
