EVAL-ADF4152HVEB1Z User Guide
The Main Controls tab controls the PLL settings (see Figure 5).
Use the Reference Frequency text box to set the correct
reference frequency and the reference frequency divider. If the
on-board TCXO is used, set the reference frequency to 25 MHz.
Use the RF Settings section to control the output frequency.
Type the desired output frequency in the RF Frequency text
box (in megahertz).
In the Registers tab, you can manually input the desired value
to be written to the registers.
In the Sweep and Hop tab, set the device to sweep a range of
frequencies or hop between two set frequencies.
The Registers section near the bottom of the window displays the
value to be written to each register. If the background of a text
box is green, the value displayed is different from the value
actually on the device. Click Write Rx (where x = 0 to 5) to
write that value to the device.

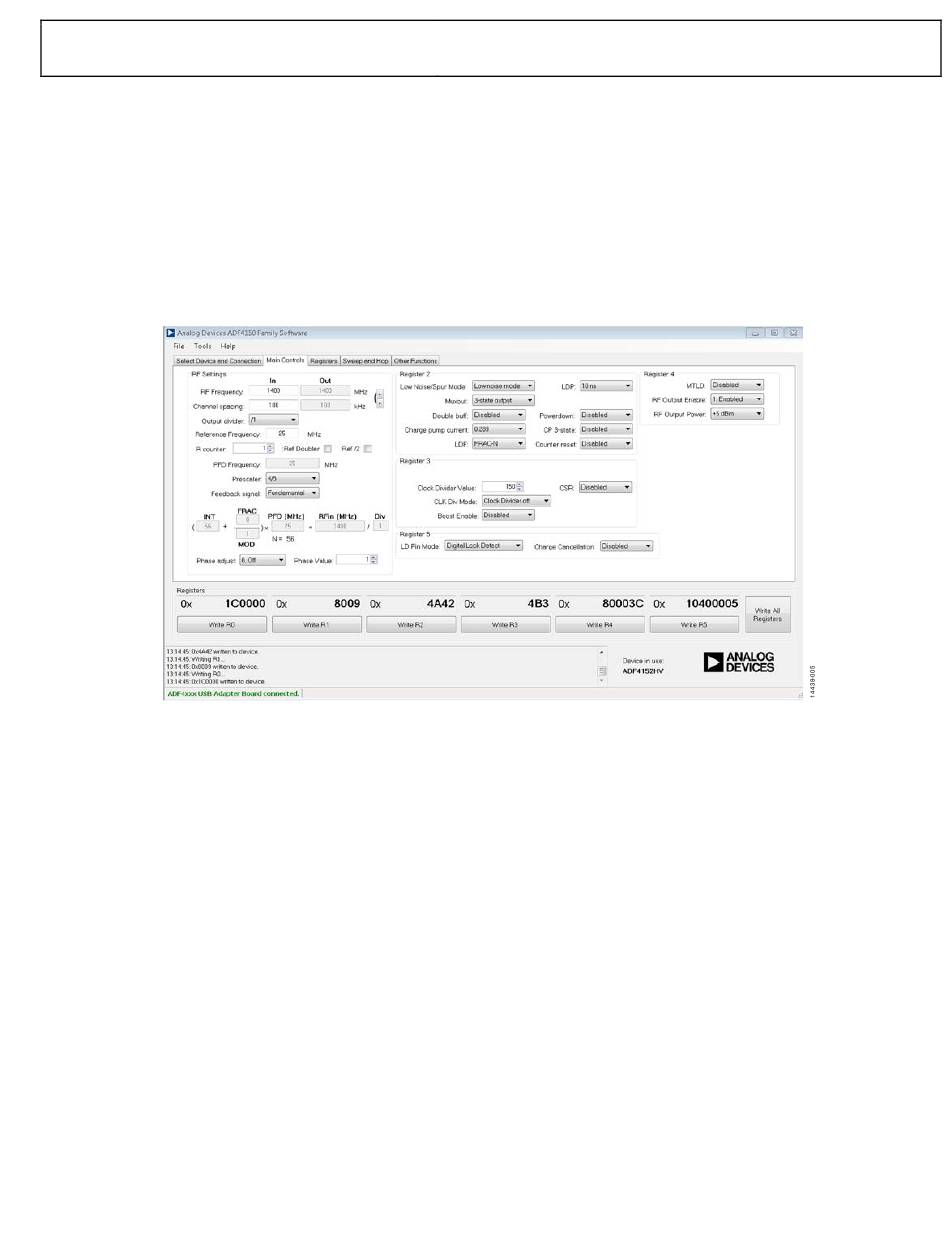

Figure 5. Software Front Panel Display—Main Controls
