Operating instructions

Powering up

!
When the system is ready, ensure that all external cable connections are complete and the tilt lock is
disengaged before switching the power ON. The Head should not move when power is switched ON, but zoom
and focus will take up demanded positions on analogue lenses. The pan and tilt movements of the Head are
controlled using the control panel joystick.

Locking the camera cradle

Before making an adjustments to the payload or camera, the tilt lock must be engaged. The tilt lock prevents
the camera cradle from moving on the tilt axis. The tilt lock mechanism is operated by a button located on the
top of the Head as shown in Figure 9.
To engage the tilt lock:
1. Steady and hold the camera cradle in the horizontal position.
2. Lift the tilt lock button upward whilst gentle rocking the camera cradle side to side until the button latches.
To release the tilt lock:
1. Gently rock the camera cradle side to side whilst pushing down on the tilt lock button.
Warning!
Ensure that all personnel and hazards are clear of
Robotic equipment before switching the power ON.

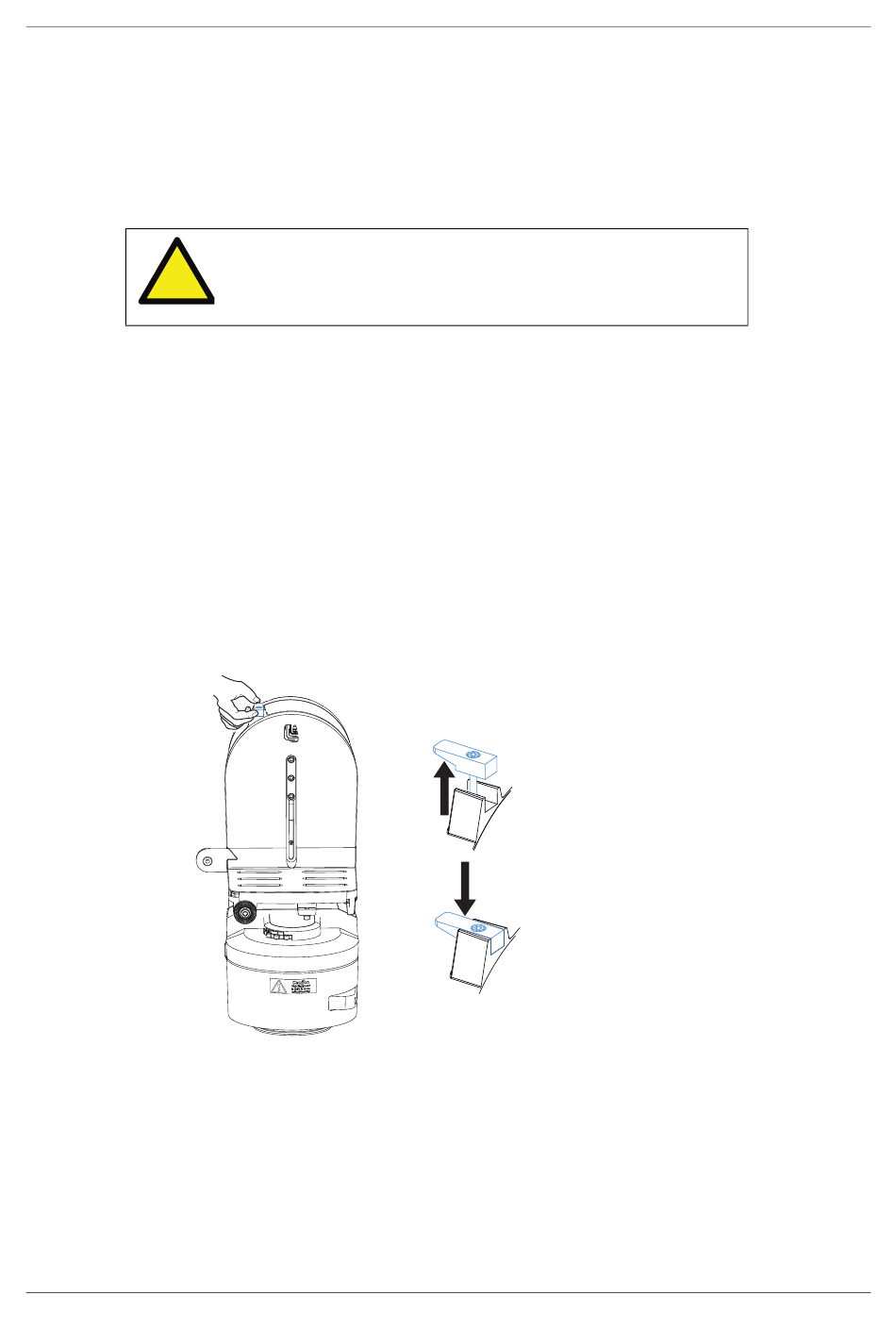

Figure 9 Engaging and releasing the tilt lock

Pull button upward to
engage the Tilt lock.
Push button downward to
release the Tilt lock.
13
