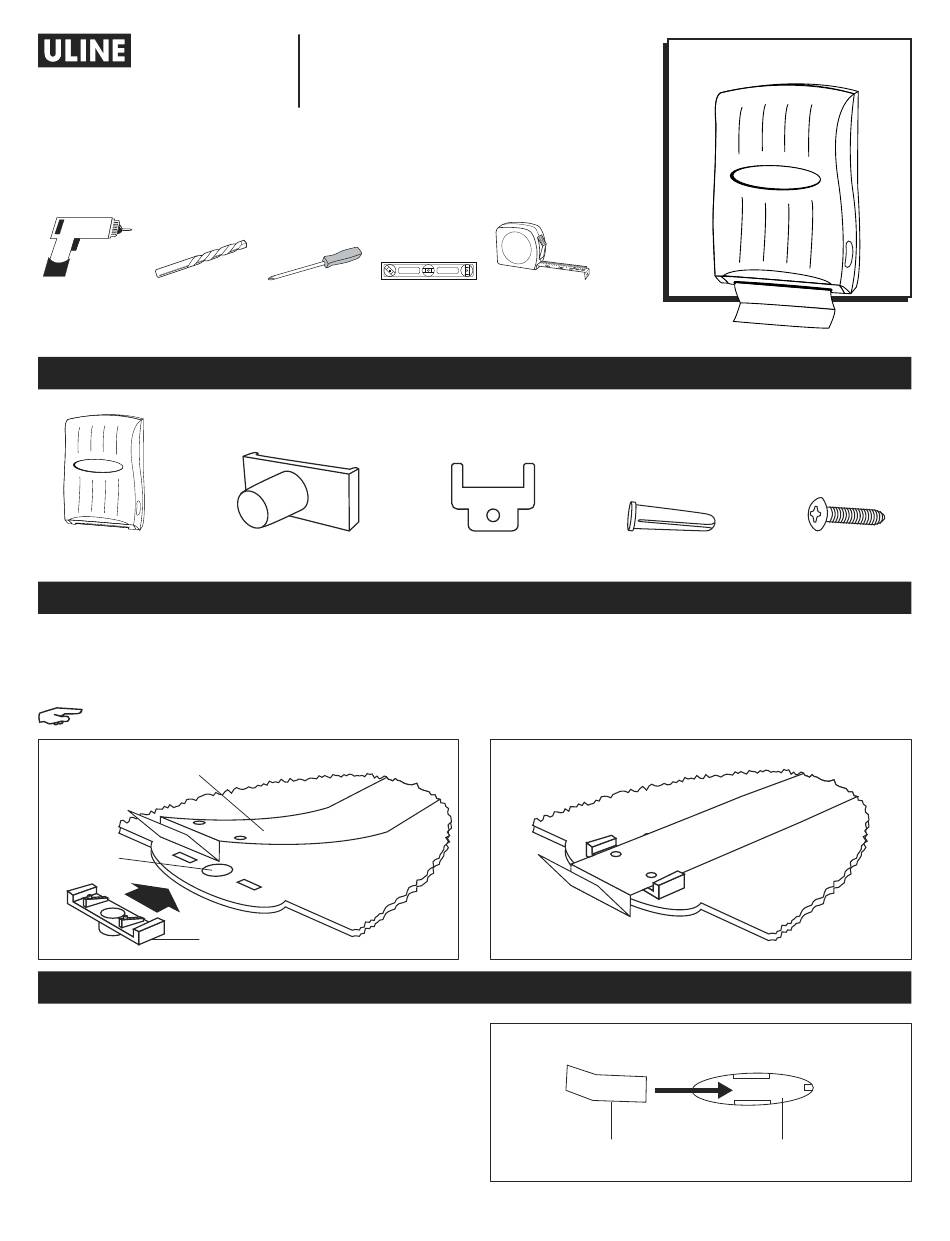

U-Line H-1133 Manual

H-1133
PLASTIC FOLDED
TOWEL DISPENSER
TOOLS NEEDED
Drill 1/4" Drill Bit
Dispenser x 1
1. Open dispenser and raise end of lock spring just
enough to pop out decorative hole plug.
(See Figure 1)
NOTE: Do not overstress the lock spring.
Figure 1
Lock Spring
Decorative
Hole Plug
Push Button
1. Open cover to expose inside of decorator
strip window.
2. Slide decorator strip into place, making sure the
decorator strip is held by the plastic guides.
(See Figure 3)
3. Close cover firmly and lock.
PAGE 1 OF 9
1-800-295-5510
uline.com
Phillips Screwdriver
Push Button x 1
OPTIONAL PUSH BUTTON INSTRUCTIONS
DECORATOR STRIP INSTALLATION INSTRUCTIONS
Level Tape Measure
PARTS
Key x 1
2. Slide push button under lock spring and insert
button through hole in door. (See Figure 2)
3. Release lock spring and close dispenser.
(See Figure 2)
Figure 2
Figure 3
Decorator Strip
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
Wall Anchor x 4
Decorator Strip Window
Screw x 4
0721 IH-1133
