H-1132, H-1351
CENTER PULL TOWEL DISPENSER
NOTE: For both permanent and temporary
mounting, insure that proper mounting
hardware is used for appropriate wall
composition. Enclosed hardware may not be
compatible with your wall surface.

PERMANENT MOUNTING

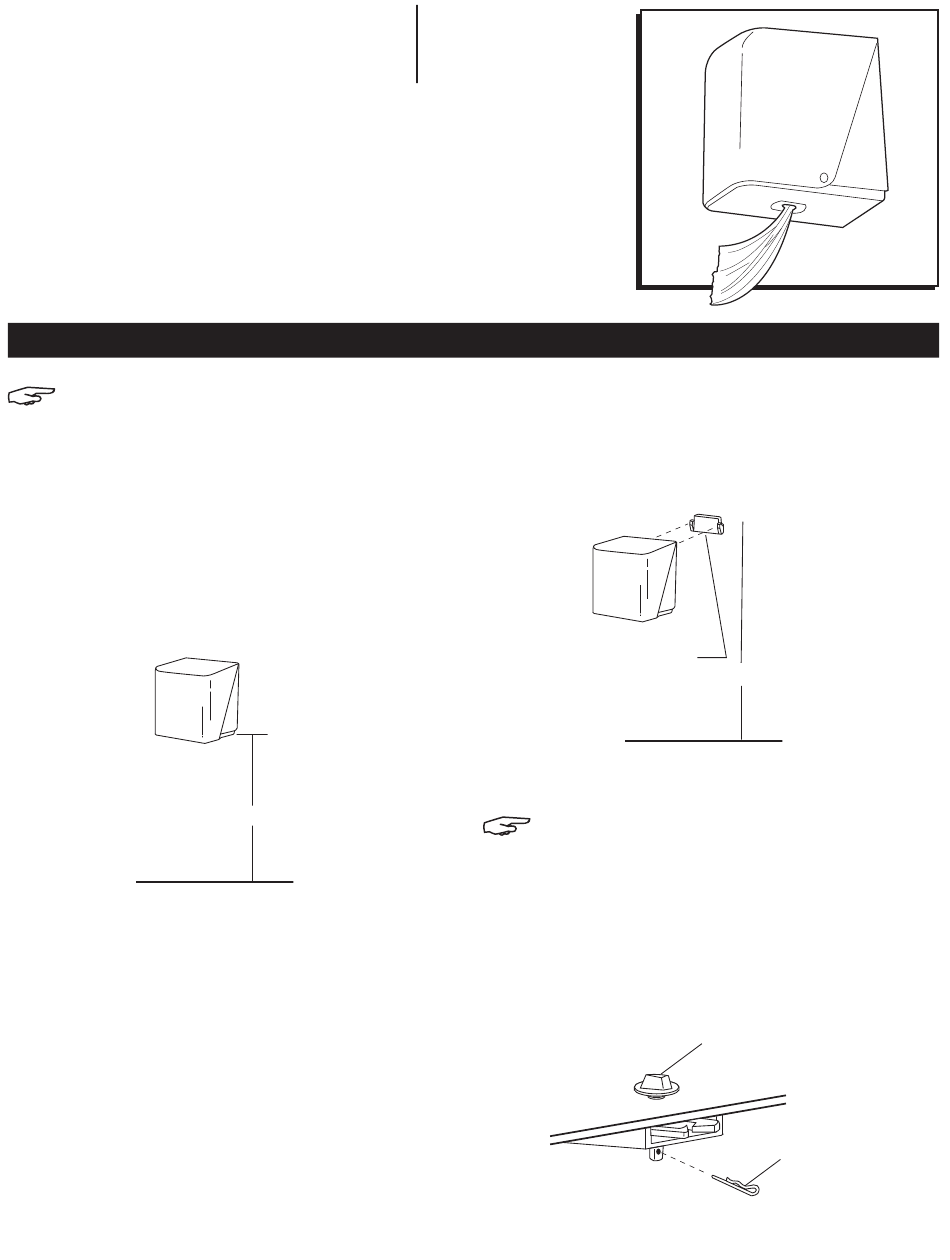

1. Place opened dispenser in intended mounting
position and mark location of three screw holes.
Recommended mounting height is 56" from floor to
bottom of dispenser. (See Figure 1)
Figure 1
2. Install top two screws halfway into wall.
Position dispenser on screws.
3. Install bottom screw through hole in dispenser
and tighten.
4. Finish tightening top two screws.
PAGE 1 OF 2

MOUNTING INSTRUCTIONS

56"
1-800-295-5510
uline.com

TEMPORARY OR PORTABLE MOUNTING

1. Place mounting bracket in position and mark location
of two screw holes. Recommended mounting height is
56" from floor to top of bracket. (See Figure 2)
Figure 2
Mounting Bracket
2. Screw bracket to wall and mount dispenser.
NOTE: Temporary mounting may be made
permanent by installing third (bottom) screw
through hole in dispenser back.
WHEN KEYED DOOR OPERATION IS DESIRED:
Open dispenser to reveal latch mechanism on side of
cover. Release latch button by removing pin in latch
button stem. Pull latch button out and save for future use.
(See Figure 3)
Figure 3
56"
Latch Button
Pin
