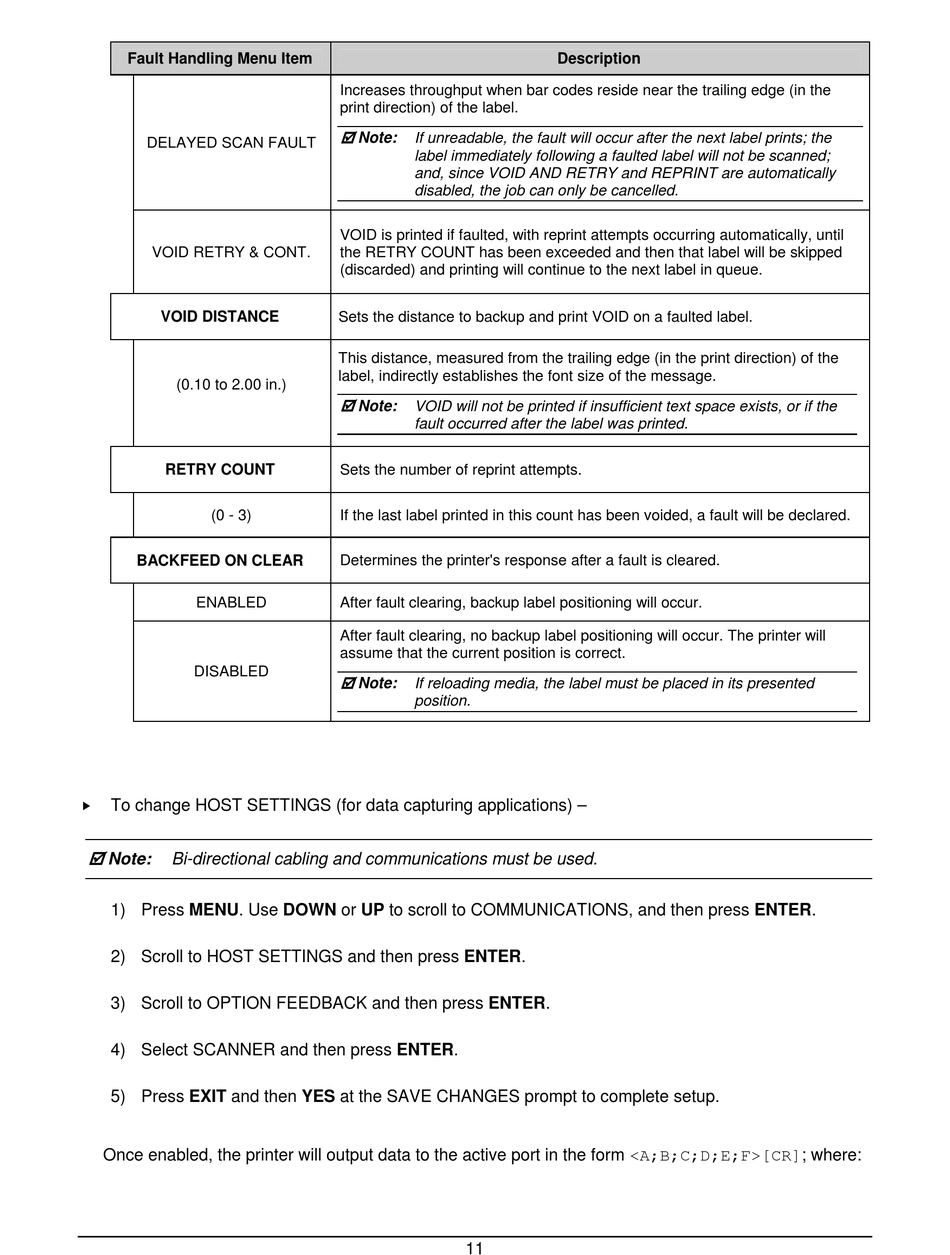

Datamax H-Class Manual page 13

Fault Handling Menu Item
DELAYED SCAN FAULT
VOID RETRY & CONT.
VOID DISTANCE
(0.10 to 2.00 in.)
RETRY COUNT
(0 - 3)
BACKFEED ON CLEAR
ENABLED
DISABLED

To change HOST SETTINGS (for data capturing applications) –

Note: Bi-directional cabling and communications must be used.
1) Press MENU. Use DOWN or UP to scroll to COMMUNICATIONS, and then press ENTER.
2) Scroll to HOST SETTINGS and then press ENTER.
3) Scroll to OPTION FEEDBACK and then press ENTER.
4) Select SCANNER and then press ENTER.
5) Press EXIT and then YES at the SAVE CHANGES prompt to complete setup.
Once enabled, the printer will output data to the active port in the form <A;B;C;D;E;F>[CR]; where:
Increases throughput when bar codes reside near the trailing edge (in the
print direction) of the label.

Note: If unreadable, the fault will occur after the next label prints; the
label immediately following a faulted label will not be scanned;
and, since VOID AND RETRY and REPRINT are automatically
disabled, the job can only be cancelled.
VOID is printed if faulted, with reprint attempts occurring automatically, until
the RETRY COUNT has been exceeded and then that label will be skipped
(discarded) and printing will continue to the next label in queue.
Sets the distance to backup and print VOID on a faulted label.
This distance, measured from the trailing edge (in the print direction) of the
label, indirectly establishes the font size of the message.

Note: VOID will not be printed if insufficient text space exists, or if the
fault occurred after the label was printed.
Sets the number of reprint attempts.
If the last label printed in this count has been voided, a fault will be declared.
Determines the printer's response after a fault is cleared.
After fault clearing, backup label positioning will occur.
After fault clearing, no backup label positioning will occur. The printer will
assume that the current position is correct.

Note: If reloading media, the label must be placed in its presented
position.
11
