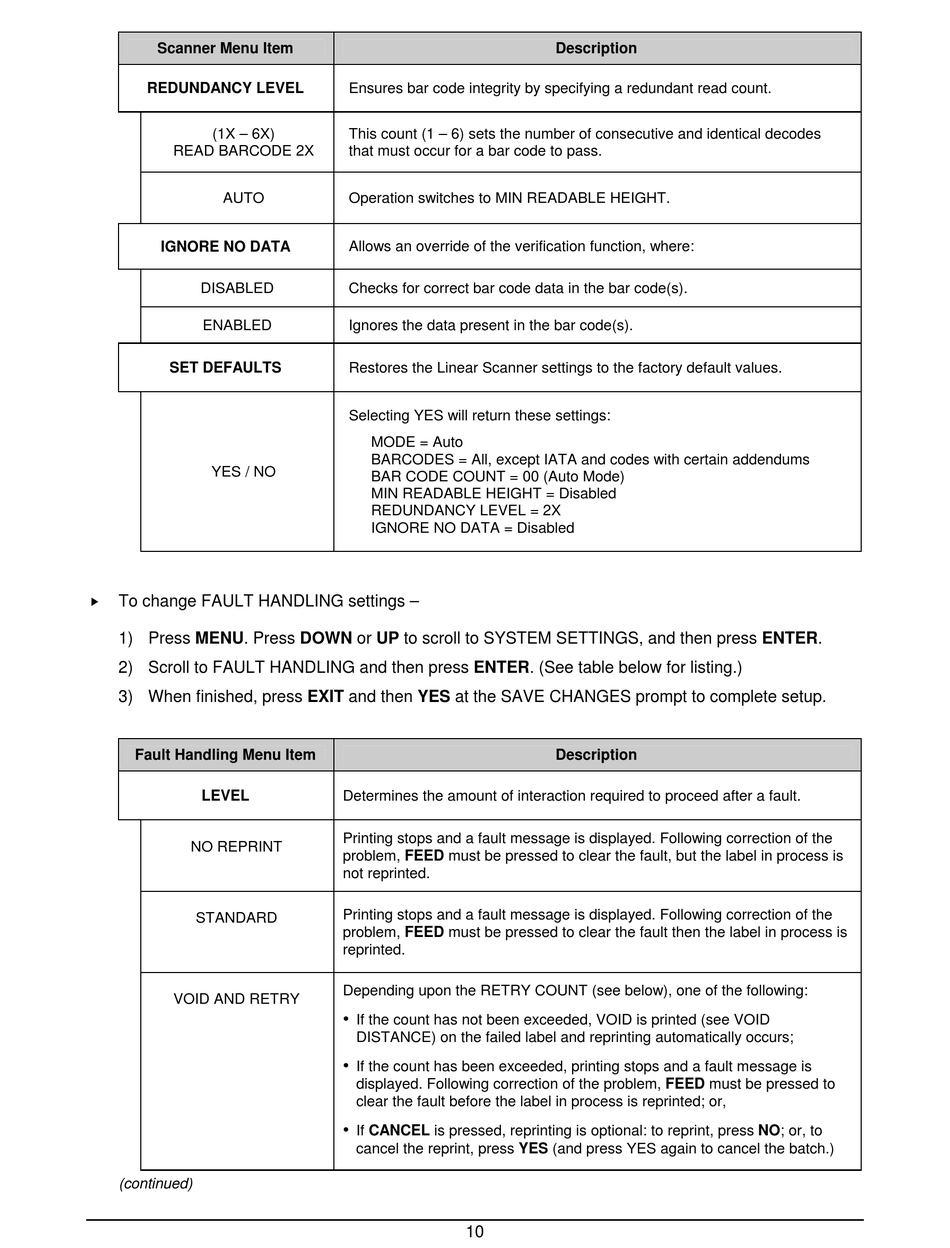

Datamax H-Class Manual page 12

Scanner Menu Item
REDUNDANCY LEVEL
(1X – 6X)
READ BARCODE 2X
AUTO
IGNORE NO DATA
DISABLED
ENABLED
SET DEFAULTS
YES / NO
 To change FAULT HANDLING settings –
1) Press MENU. Press DOWN or UP to scroll to SYSTEM SETTINGS, and then press ENTER.
2) Scroll to FAULT HANDLING and then press ENTER. (See table below for listing.)
3) When finished, press EXIT and then YES at the SAVE CHANGES prompt to complete setup.
Fault Handling Menu Item
LEVEL
NO REPRINT
STANDARD
VOID AND RETRY
(continued)
Ensures bar code integrity by specifying a redundant read count.
This count (1 – 6) sets the number of consecutive and identical decodes
that must occur for a bar code to pass.
Operation switches to MIN READABLE HEIGHT.
Allows an override of the verification function, where:
Checks for correct bar code data in the bar code(s).
Ignores the data present in the bar code(s).
Restores the Linear Scanner settings to the factory default values.
Selecting YES will return these settings:
MODE = Auto
BARCODES = All, except IATA and codes with certain addendums
BAR CODE COUNT = 00 (Auto Mode)
MIN READABLE HEIGHT = Disabled
REDUNDANCY LEVEL = 2X
IGNORE NO DATA = Disabled
Determines the amount of interaction required to proceed after a fault.
Printing stops and a fault message is displayed. Following correction of the
problem, FEED must be pressed to clear the fault, but the label in process is
not reprinted.
Printing stops and a fault message is displayed. Following correction of the
problem, FEED must be pressed to clear the fault then the label in process is
reprinted.
Depending upon the RETRY COUNT (see below), one of the following:
•
If the count has not been exceeded, VOID is printed (see VOID
DISTANCE) on the failed label and reprinting automatically occurs;
•
If the count has been exceeded, printing stops and a fault message is
displayed. Following correction of the problem, FEED must be pressed to
clear the fault before the label in process is reprinted; or,
•
If CANCEL is pressed, reprinting is optional: to reprint, press NO; or, to
cancel the reprint, press YES (and press YES again to cancel the batch.)
10
Description
Description
