F
D
L
For More Information & Accessories,
Visit our Website - www.LetsGoAero.com
Contact Us at 877-474-2376 or 719-630-3800 | Email Support@LetsGoAero.com
K
C

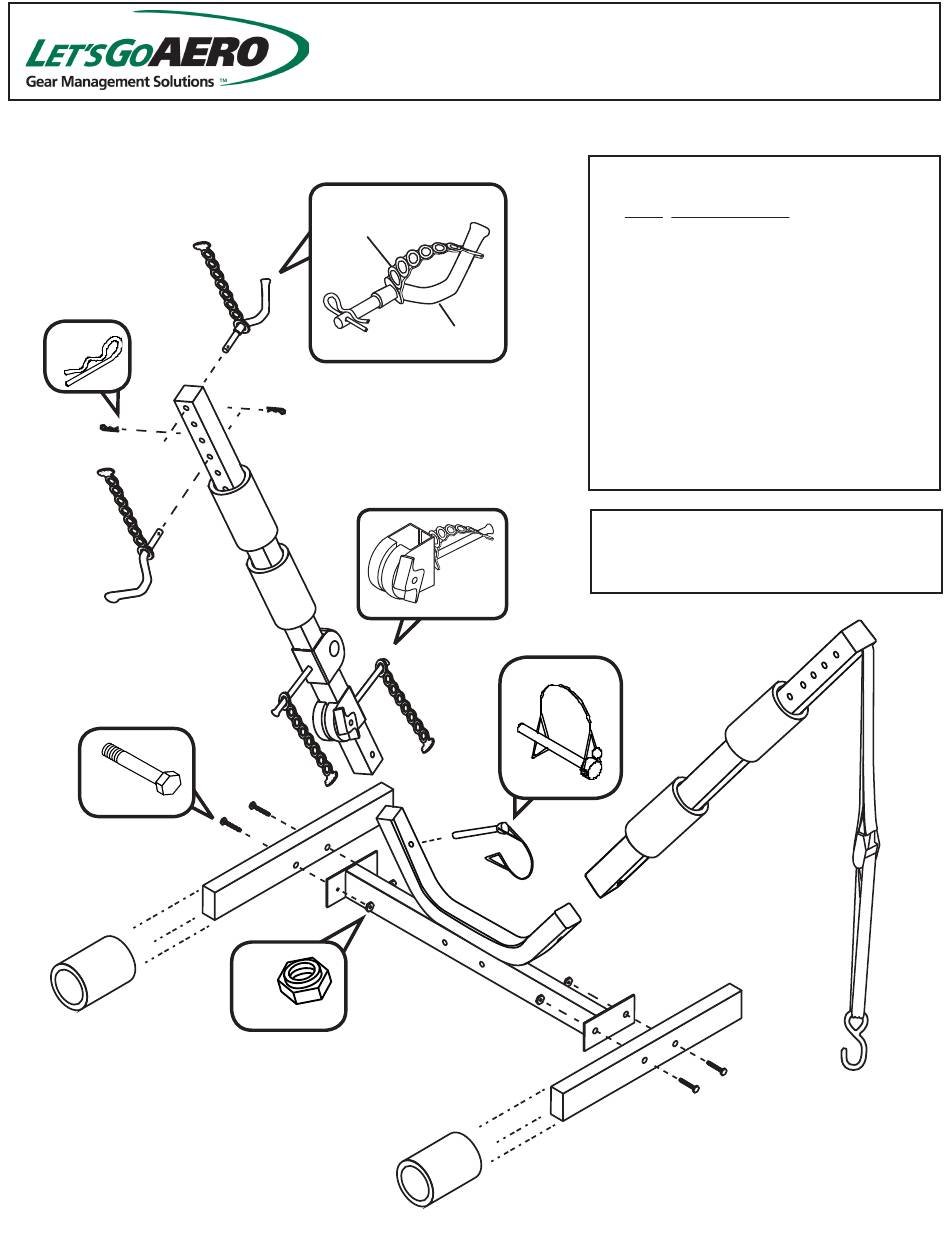

Covered Bicycle Storage and Transport Accessory System
H
REQUIRED TOOLS:
1/2" (13mm) WRENCH
J
E
A
B

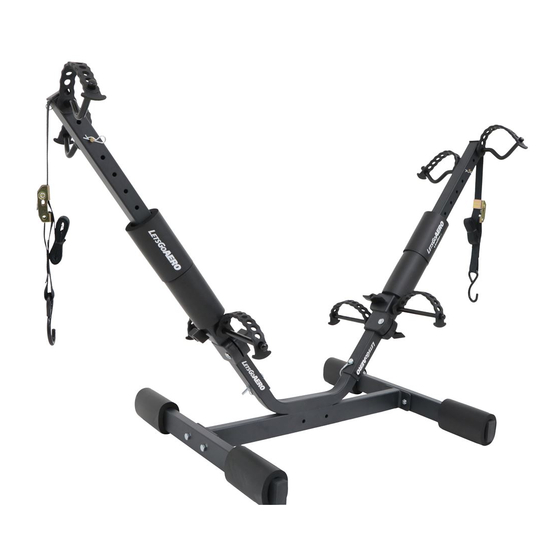

HideOut Package™
Part No. H01564
QTY. DESCRIPTION
A 1
U-TUBE
B 2
HORIZONTAL LEG
C 4
LOCK NUT
D 4
HEX BOLT
E 2
WIRE LOCK PIN
F 4
SMALL COTTER PIN
G 2
WING WITH PADS
H 4
WHEEL CRADLE
J 4
WHEEL STOPS
K 4
RUBBER STRAPS
L 4
FOAM CUSHIONS
M 2
RATCHET STRAP
G
M
HOMANUAL 021317
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Let's Go Aero HideOut Package H01564
Summary of Contents for Let's Go Aero HideOut Package H01564
- Page 1 HideOut Package™ Part No. H01564 Covered Bicycle Storage and Transport Accessory System PARTS LIST QTY. DESCRIPTION U-TUBE HORIZONTAL LEG LOCK NUT HEX BOLT WIRE LOCK PIN SMALL COTTER PIN WING WITH PADS WHEEL CRADLE WHEEL STOPS RUBBER STRAPS FOAM CUSHIONS RATCHET STRAP REQUIRED TOOLS: 1/2”...
- Page 2 STEP 1 Connect the U-Tube [A] to the Horizontal Legs using 13 mm Hex Bolts [D] and 13 mm Lock Nuts [C] as shown [Detail 1]. STEP 2 DETAIL 5 DETAIL 6 WARNING: ALWAYS MAKE SURE EACH PADS CRADLE ASSEMBLY IS HELD IN PLACE WITH A SMALL COTTER PIN Attach Adjustable Rubber Straps [N] [J] AS SHOWN IN DETAIL 6.
- Page 3 STEP 3 DETAIL 7 Install wing [D] onto V-Base [A] using wire lock pin [E]. Open wire lock pin [E] as shown in DETAIL 7. Insert wire lock pin [E] through hole and out the other side. (You may need to slide wing [D] up slightly to align the holes).
- Page 4 CARRIER INSTALLATION [CARGO RACK NOT INCLUDED] DETAIL 9 DETAIL 10 STEP 1: Install Foam Cushions [L] on ends of Horizontal Legs [B] as shown. [DETAIL 9 & 10] DETAIL 11 DETAIL 12 STEP 2: Center and place the BikeTree inside the Carrier with the Horizontal Legs [B] running perpendicular to the length...
- Page 5 ATTACHMENT OF BICYCLES DETAIL 17 RUBBER STRAP CRADLE BICYCLE WHEEL One cradle assembly should be attached to each side of each Wing as instructed in STEP 4. BICYCLE Lift the bicycle and hang it on the RUBBER WHEEL STRAP BikeTree rack with the drive-train of the bicycle facing away from the rack for a closer fit.
- Page 6 HIDEOUT COVER & DRAGNET INSTALLATION PARTS LIST Qty Description HideOut Cover DragNet Cargo Netting With Clips Assembly and Installation: Unfold your BossHog HideOut Cover and drape over top of your BossHog Carrier, assembled BikeTree, and customer supplied bicycles. Fit the thick Waist-Band of the HideOut Cover snuggly over the corners of the carrier.
- Page 7 WARRANTY STATEMENT ONE YEAR LIMITED WARRANTY Let’s Go Aero warrants this product to be free from defect in material and workmanship for one year (retain your sales re- ceipt for your records). Any product or part thereof found to be defective within that period will be replaced without charge provided that: (1) the product was not misused;...
