Let's Go Aero Half Nelson Product Manual

2-bike truck mount carrier
Hide thumbs Also See for Half Nelson:

Advertisement

Quick Links

Download this manual

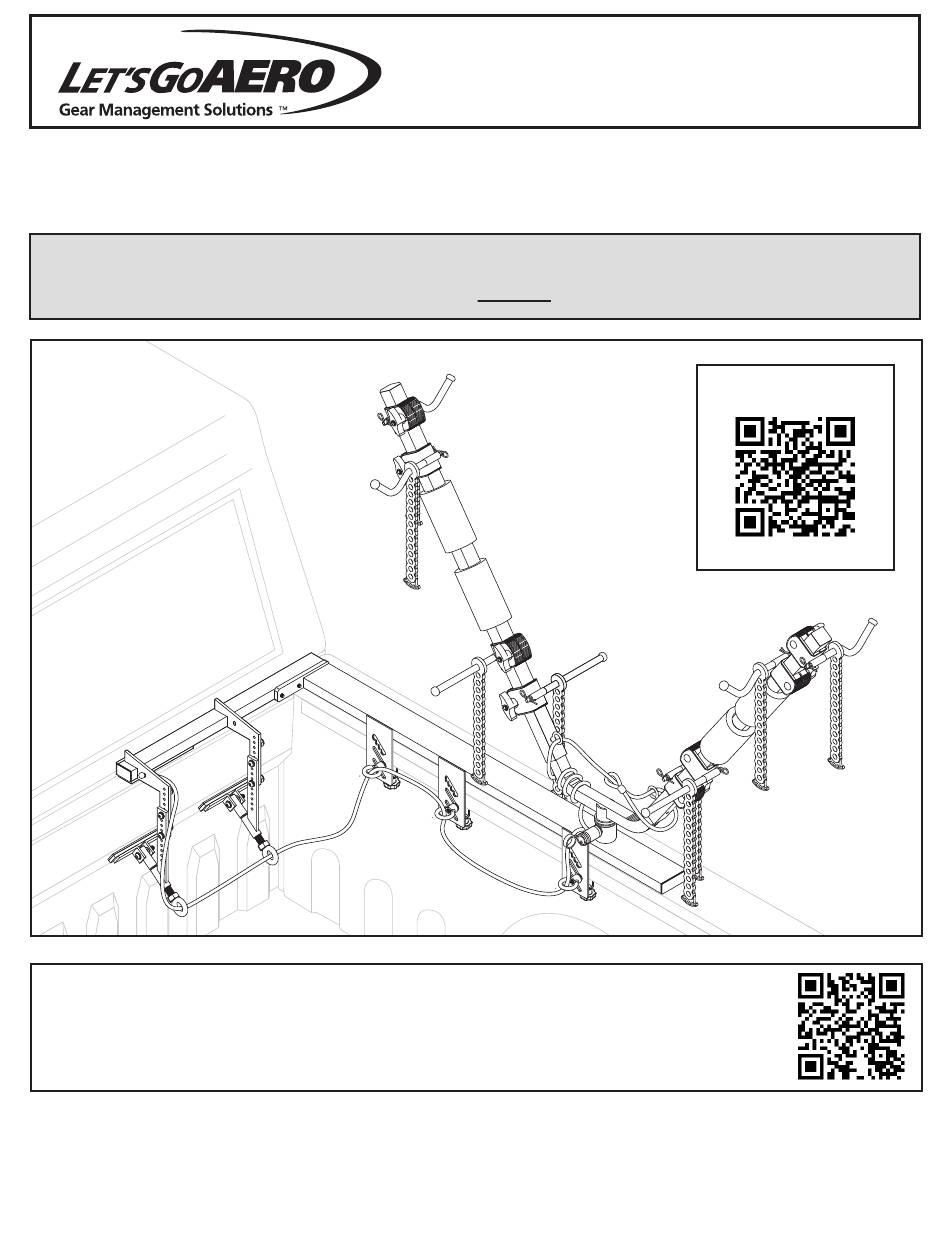

ASSEMBLY, INSTALLATION, AND OPERATION INSTRUCTIONS
For Domestic Pickup trucks or Pickups without C-Channel Bed Attachments.
NOTICE: All Manual information is subject to change without notice. Revised editions
will be available for free download at LetsGoAero.com. Manual information is considered
factual until made obsolete by a revised version.
Follow this QR-Code or visit
LetsGoAero.com/manuals to check for an updated version:
For More Information & Accessories, Visit our Website - www.LetsGoAero.com
For Technical Support & Product Questions Contact Us at 877-464-2376 or 719- 630-3800
Copyright© 2019, Lets Go Aero, Inc., All rights reserved.
HN-071519Rev
PRODUCT MANUAL
Rated for 70 lbs (35 lbs per Bicycle) of payload.
Email: SUPPORT@LETSGOAERO.COM
Page 1 of 10
Half Nelson
2-Bike Truck Mount Carrier
Part No. B01809
Watch the
Assembly Video:
LetsGoAero.com/Videos
PATENT PROTECTED
Revision Date: 07/15/19

Advertisement

loading
Need help?

Need help?

Do you have a question about the Half Nelson and is the answer not in the manual?

Questions and answers

Related Manuals for Let's Go Aero Half Nelson

Summary of Contents for Let's Go Aero Half Nelson

  • Page 1 Half Nelson 2-Bike Truck Mount Carrier Part No. B01809 PRODUCT MANUAL ASSEMBLY, INSTALLATION, AND OPERATION INSTRUCTIONS Rated for 70 lbs (35 lbs per Bicycle) of payload. For Domestic Pickup trucks or Pickups without C-Channel Bed Attachments. Watch the Assembly Video: LetsGoAero.com/Videos...

  • Page 2: Parts List

    PARTS LIST TRUCK MOUNT PARTS SPINWING™ PARTS QTY. DESCRIPTION QTY. DESCRIPTION BED SIDE BAR STEM REAR CAB BAR SPIN RING 9mm TAPERED BOLT SPIN PIN DOUBLE BOLT ASSEMBLY 1/2” WASHER RING NUT UPPER WHEEL CRADLE 3/8” WASHER LOWER WHEEL CRADLE 3/8”...
  • Page 3 STEP 3: Double Bolt Assembly Install the threaded post of one (1) Double Bolt Assembly [D] into each slotted plate located on the Bed Side Bar [A] using the highest available slot with the handle pointing down. Secure the Double Bolt Assembly using one (1) Ring Nut [E], One (1) 3/8”...
  • Page 4 STEP 5: Cab Support Assembly Cont. Place a Cab Support Assembly [HKJ] along side the [Fg. 9] vertical brackets located on the Rear Cab Bar [B] so that both Cab Support Foot [K] is pressed against the underside of the return located on the pickup bed wall (adjustment of the Adjustment Bolt may be needed).

  • Page 5: Step 9: Wing Assembly

    STEP 8: Spin Pin Using one (1) 1/2” Washer [T], thread the Spin Pin [S] through the Stem [Q] Socket and tighten until the Stem is fully secure. [Fg. 13] NOTE: The Spin Pin [S] must always be inserted through the side of the Socket where the bushing protrudes outwards.

  • Page 6: Step 13: Wing Installation

    STEP 11: Wing Assembly Cont. Insert two (2) Upper Wheel Cradles [U] with Rubber Straps [W] facing in [Fg. 17] opposite directions into the two (2) Cradle Housing [Y] installed above the foam bumpers on each Wing [X] as shown. [Fg. 17] Secure each Upper Wheel Cradle [U] with a Retainer Clip [Z].
  • Page 7 STEP 14: Lock Rack to the Vehicle with 60” Cable Using the 60in Cable (with Ball Stop) [BB] pre-installed into the Rear Cab Bar [B], thread the 60in Cable [BB] through each Adjustment Bolt [J] and through each Ring Nut [E] along the carrier.
  • Page 8 Operation: Bicycle Mounting Hang bicycles by the tires on the Upper Wheel [Fg. 26] Cradles [U] with the chain rings to the outside. [Fg. 25 & 26] Adjust the Foam Bumpers located on the Wings [X] to protect the frame of the bicycle.
  • Page 9 Locking Bicycles Unlock the Spin Pin [S] and remove the 72in Cable [CC] from the Spin Pin. Weave the 72in Cable [CC] through the frame of the bicycle. Re-secure the 72in Cable [CC] back onto the Spin Pin [S] and re-lock the assembly. [Fg. 31] [Fg.
  • Page 10 WARNING: Always secure each bicycle with all four connections points (two Upper Wheel Cradles & two Lower Cradles). Do not operate the vehicle unless all connection points are tight and secured. Failure to follow bicycle mounting procedure may result in damage to carrier, damage to property, bodily injury or death. WARNING: Always check and confirm all truck mounting points (three Double Bolt connections &...
