4.5. Control of the AV-sources by touch-screen (DVB-T/ DVD)
It is possible to control the AV-sources connected to AV2 and AV3 by factory touch-screen.

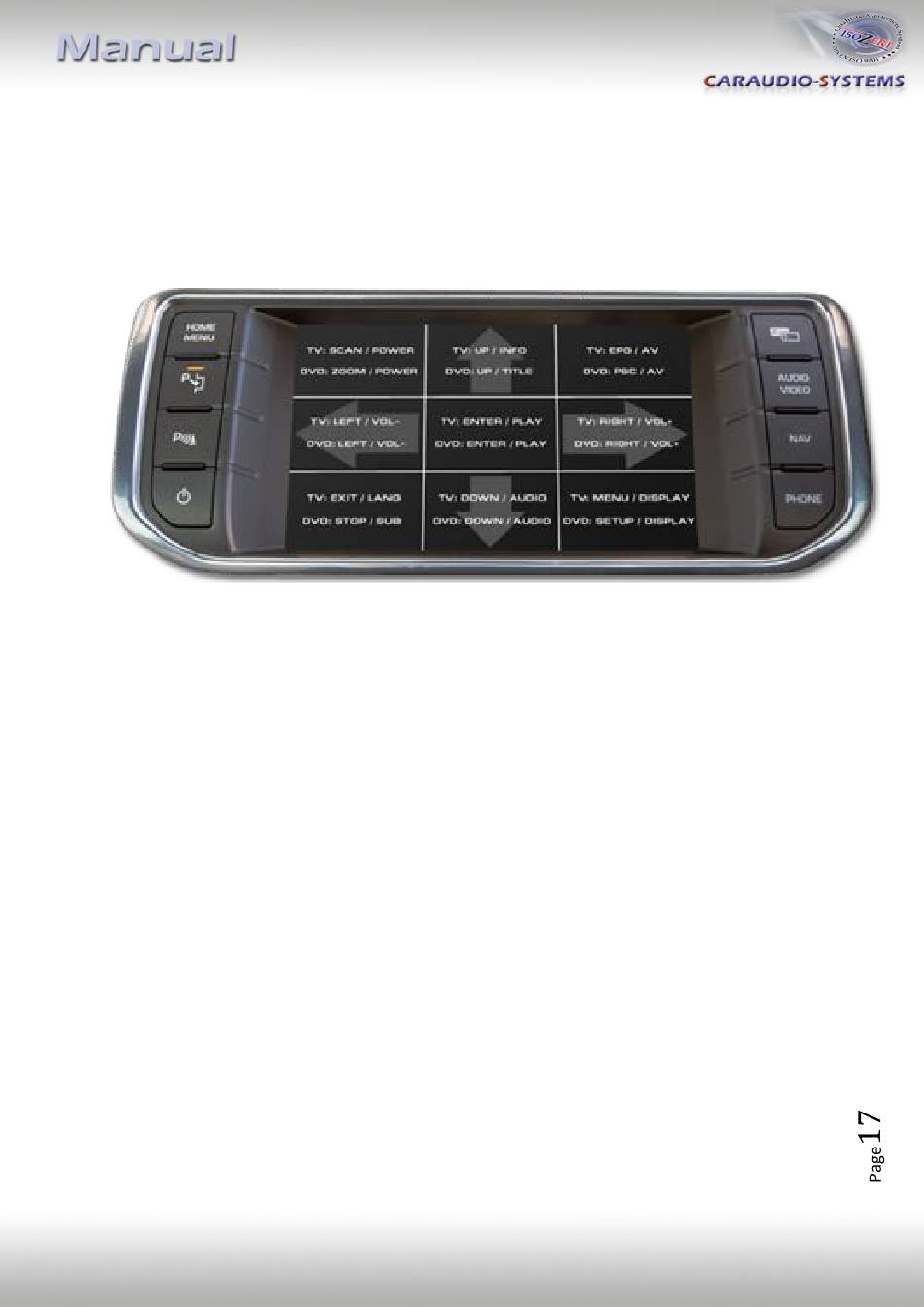

The factory touch-screen is divided into 9 areas. The picture below shows the functions of
the AV-source which can be executed by short pressing (left function) and long pressing
(about 2 sec., right function) the appropriate touch-screen area. The function description
equals the remote control buttons of the AV-sources' remote control.
Note: Additionally to the control via factory touch-screen, it is possible to install the original
IR-sensor of the AV-source. By using the Y-adapter STA-Y for the IR-Port of the AV-source,
the controls of touch-screen AND device's IR-sensor can be connected and used
simultaneously. Installation of the IR-sensor is recommended as the controls via touch-
screen are limited, and not all functions may be covered.
